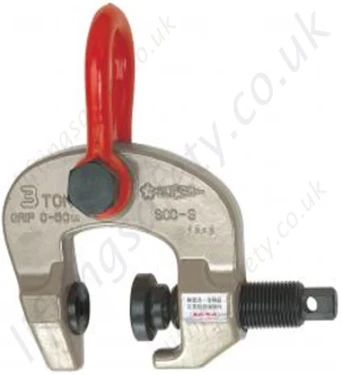

Tiger SCC Screw Cam Clamp

Tiger SCC Screw Cam Clamp

Omnidirectional clamp designed to lift, hang, turn over, and pull steel structures. Capacity options from 300kg up to 6 tonnes.

Model:

SCC / TSSC-5588

Tiger SCC Screw Cam Clamp

Tiger SCC Screw Cam Clamp

Clamp Features

  • Universal clamp for lifting a large variety of different-shaped steel, ranging from steel plates and structured steel to curved and spherical-shaped steel
  • The SCC is an omnidirectional clamp that can lift, hang, turn over, and pull steel structures.
  • This clamp is equipped with a screw cam (spherical universal designed), which provides an extra powerful clamping force on the work piece at no load and even when vibrations occur during operation
  • When the clamp is under a load, the cam will tilt in accordance with the weight of the load. This tilting of the cam will increase the clamping force and cause the teeth of the cam and pad to bite harder into the workpiece

Certification: Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Technical Specifications

Product Code Capacity (tonnes) Clamp Range (mm) Dimensions (mm) Net Weight (kg)
L (min) L1 L2 L3 H H1 H2 H3 D D1 D2 T T1
SCC-0030W 0.3 50-100 196 176 116 75 155 91 35 16 26 17 14 32 10 1.3
SCC-0050 0.5 0-28 123 104 89 60 113 76 26.5 16 26 17 14 30 10 0.8
SCC-0100 1.0 0-30 175 148 126 190 204 128 45 38 42 38 21 46 12 3.2
SCC-0100W 1.0 50-100 258 225 153 190 273 190 88 38 42 45 21 46 16 6.0
SCC-0150 1.5 0-32 187 154 135 190 229 143 52 39 42 45 21 46 16 4.0
SCC-0300 3.0 0-50 224 190 165 240 265 165 60 45 49 50 21 54 19 6.0
SCC-0300W 3.0 25-75 250 215 165 240 291 191 76 45 49 50 21 54 19 7.8
SCC-0600 6.0 0-75 291 255 215 240 365 214 76 54 63 80 21 69 31.5 18.0

Note: For the torque value of the screw tightening, operate tightening over 35N.m (approx. 350kgf) [for SCC-0050, over 5N.m (approx. 50kgf)].

Due to our policy of continuous product development, dimensions, weights, and specifications may be subject to change without prior notice. Please check when ordering.

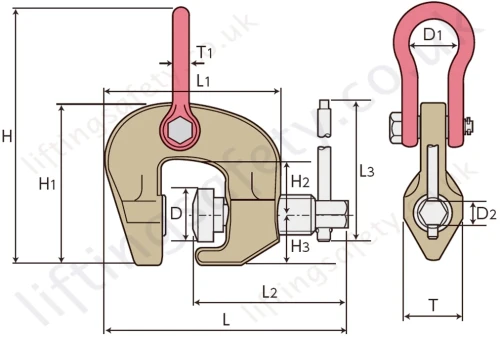

Dimensional Drawing

Part N° Capacity (tonnes) Clamp Range (mm) Net Weight (kg) Sale Price (Ex. VAT) Quantity
5588-T29117
SCC-0030W 		0.3 50-100 1.3
( £180.00 )
£156.60
5588-T29118
SCC-0050 		0.5 0-28 0.8
( £155.00 )
£134.85
5588-T29119
SCC-0100 		1.0 0-30 3.2
( £210.00 )
£182.70
5588-T29120
SCC-0100W 		1.0 50-100 6.0
( £460.00 )
£400.20
5588-T29121
SCC-0150 		1.5 0-32 4.0
( £215.00 )
£187.05
5588-T29122
SCC-0300 		3.0 0-50 6.0
( £315.00 )
£274.05
5588-T29123
SCC-0300W 		3.0 25-75 7.8
( £500.00 )
£435.00
5588-T29124
SCC-0600 		6.0 0-75 18.0
( £865.00 )
£752.55
Add to Shopping Basket
Please Note: Buy online is only available to UK mainland customers and addresses.
Description

Clamp Features

  • Universal clamp for lifting a large variety of different-shaped steel, ranging from steel plates and structured steel to curved and spherical-shaped steel
  • The SCC is an omnidirectional clamp that can lift, hang, turn over, and pull steel structures.
  • This clamp is equipped with a screw cam (spherical universal designed), which provides an extra powerful clamping force on the work piece at no load and even when vibrations occur during operation
  • When the clamp is under a load, the cam will tilt in accordance with the weight of the load. This tilting of the cam will increase the clamping force and cause the teeth of the cam and pad to bite harder into the workpiece

Certification: Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Technical Specifications

Product Code Capacity (tonnes) Clamp Range (mm) Dimensions (mm) Net Weight (kg)
L (min) L1 L2 L3 H H1 H2 H3 D D1 D2 T T1
SCC-0030W 0.3 50-100 196 176 116 75 155 91 35 16 26 17 14 32 10 1.3
SCC-0050 0.5 0-28 123 104 89 60 113 76 26.5 16 26 17 14 30 10 0.8
SCC-0100 1.0 0-30 175 148 126 190 204 128 45 38 42 38 21 46 12 3.2
SCC-0100W 1.0 50-100 258 225 153 190 273 190 88 38 42 45 21 46 16 6.0
SCC-0150 1.5 0-32 187 154 135 190 229 143 52 39 42 45 21 46 16 4.0
SCC-0300 3.0 0-50 224 190 165 240 265 165 60 45 49 50 21 54 19 6.0
SCC-0300W 3.0 25-75 250 215 165 240 291 191 76 45 49 50 21 54 19 7.8
SCC-0600 6.0 0-75 291 255 215 240 365 214 76 54 63 80 21 69 31.5 18.0

Note: For the torque value of the screw tightening, operate tightening over 35N.m (approx. 350kgf) [for SCC-0050, over 5N.m (approx. 50kgf)].

Due to our policy of continuous product development, dimensions, weights, and specifications may be subject to change without prior notice. Please check when ordering.

Dimensional Drawing
