Hi-Force 'HPC' Single Acting Hydraulic Pull Cylinders, 10,000kg to 50,000kg

Hi-Force 'HPC' Single Acting Hydraulic Pull Cylinders, 10,000kg to 50,000kg

700 Bar Hydraulic Pulling Cylinders, Stroke Length 152mm, Capacities from 10 to 50 Tonnes

Model:

HPC / SAHP-4874

Hi-Force 'HPC' Single Acting Hydraulic Pull Cylinders, 10,000kg to 50,000kg

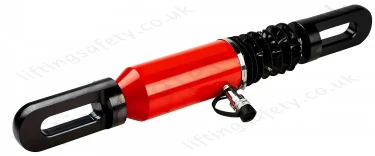

10t Hydraulic Pull Cylinder With Protection Bellows 30t Hydraulic Pull Cylinder With Protection Bellows 50t Hydraulic Pull Cylinder With Protection Bellows
More from:
Hi Force Hydraulic Tools

Hydraulic pull cylinder range which comprises of four models, with capacities ranging from 10 tonnes to 50 tonnes of pulling force. Fitted with easily replaceable machined pulling eyes or clevis eyes on the piston rod and cylinder base.

All models are 700 Bar maximum working pressure and feature a single acting, spring assisted return piston, with a 152mm stroke length.

Typical applications are plate alignment prior to welding in shipyards, cable tensioning and heavy load moving using chains or wire ropes.

  • Capacities from 10 to 50 tonnes.
  • Stroke length 152mm.
  • Working pressure 700 Bar.
  • Spring assisted return.
  • Surface treated piston rod.
  • Replaceable pulling and clevis eyes.
  • Piston wiper prevents contamination.
  • Protective bellows are available on request.

Dimensions and Specifications

Hydraulic Pull Cylinder With Eyes

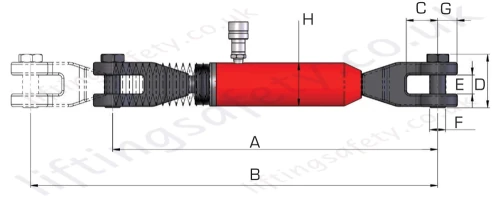

Hydraulic Pull Cylinder With Clevis Jaws
Hydraulic Pull Cylinder with Eyes Hydraulic Pull Cylinder with Clevis Jaws
End Fittings Capacity (t) Stroke (mm) Oil Cap. Cylinder Affective Area A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) *Eye Thickness (mm) Weight (kg)
Eyes 10 152 228 15 600 752 114 67 32 33 - 80 22 12
Clevis Jaws 10 152 228 15 602 754 58 99 35 30 36 80 - 15.5
Eyes 30 152 636 41.8 695 847 145 105 42 50  - 122 35 31
Eyes 50 152 1078 71 819 971 149 130 52 69  0 153 40 54

Hi-Force range

We offer the full extensive range of Hi-Force hydraulic cylinders which includes a wide choice of options related to capacity, stroke length, single or double acting operation, steel or aluminium construction, hollow piston centre hole and mechanical failsafe lock ring designs. All models are 700 bar maximum working pressure and standard capacities range from 4.5 tonnes to 1012 tonnes. Hi-Force also offers custom designed and manufactured cylinders, meeting specific and unique customer requirements.

There is a Hi-Force hydraulic cylinder to suit every application and the high quality design and construction of all models, using the best available materials, ensures that Hi-Force hydraulic cylinders can cope with the most demanding applications in the harshest working conditions.







Part N° Capacity (t) Fittings Protective Bellows Stroke (mm) Weight (kg) Unit Price (Ex. VAT) Quantity
4874-T27744
HPC106 		10 Eyes No 152 12 £1,478.00
4874-T27745
HPC106 + Bellows 		10 Eyes Yes 152 12 Quote Required
4874-T27746
HPC106C 		10 Clevis Jaw No 152 15.5 £2,176.00
4874-T27747
HPC106C + Bellows 		10 Clevis Jaw Yes 152 15.5 Quote Required
4874-T27748
HPC306 		30 Eyes No 152 31 £3,020.00
4874-T27749
HPC306 + Bellows 		30 Eyes Yes 152 31 Quote Required
4874-T27750
HPC506 		50 Eyes No 152 54 £4,079.00
4874-T27751
HPC506 + Bellows 		50 Eyes Yes 152 54 Quote Required
