"SCN25 Series" Linear Actuator - 25t

Easily installed linear actuator with thte option for explosion proof motor and limit switch.

Model:

SCN25 Series / SLA-4076


SCN25 Series Linear Actuator

Features & Benefits
  • Easy to install - reduces installation costs
  • Custom designed for your application
  • Low maintenance design - easy to maintain after installation
  • Long product life expectancy
  • Ball screw
  • Ductile iron housing
  • Chrome plated translating tube
  • Adjustable end of stroke limit switches
  • Clevis and trunnion mounting
  • Motor configuration include: parallel, right angle and off set
Options
  • Food grade component options available
  • Explosion proof motor and limit switch
  • Product designs for outdoor applications
  • Manual override
  • Other special packages are available upon your application needs

SCN25 Series Off Set Motor Diagram

SCN25 Series Off Set Motor Diagram
Part Number Rated Load Standard Stroke Lengths Retracted Length Speed Max Stroke Motor Approx. Weight Weight added per inch of stroke.
lbs N inch mm in (mm) in/min mm/min inch mm HP kW
NZ25-0448 14,005 62,298 6, 12, 18, 24, 36 152, 304, 457, 609, 914 22.15 (562) + (1.25 x Stroke) 250.4 6360.0 161 4,089 10 7.40 Contact for Exact Weights
NZ25-2731 22,236 98,912 47.3 1202.0 3 2.23
NZ25-1667 26,057 115,905 67.3 1709.0 5 3.72
NZ25-1138 26,682 118,686 98.6 2504.0 7 1/2 5.50
NZ25-0980 30,637 136,277 114.5 2908.0 10 7.40
NZ25-1411 33,083 147,158 79.5 2019.0 160 4,064 7 1/2 5.50
NZ25-2245 35,091 156,092 50.0 1269.0 155 3,937 5 3.72
NZ25-12693 39,681 176,506 8.8 224.0 146 3,708 1 0.74
NZ25-6412 40,090 178,328 17.5 444.0 145 3,683 2 1.49
NZ25-40858 42,151 187,494 2.7 70.0 141 3,581 1/3 0.25
NZ25-19069 44,710 198,877 5.9 149.0 137 3,479 3/4 0.56
NZ25-28714 44,883 199,645 3.9 99.0 137 3,479 1/2 0.37
NZ25-10088 47,305 210,422 11.1 282.0 133 3,378 1 1/2 1.12
NZ25-5297 49,678 220,977 21.2 538.0 130 3,302 3 2.23
NZ25-48256 49,783 221,442 2.3 59.0 130 3,302 1/3 0.25
NZ25-23083 50,000 222,409 4.9 123.0 125 3,175 3/4 0.56
NZ25-16146 6.9 176.0 129 3,076 1 0.74
NZ25-11223 10.0 254.0 127 3,225 1 1/2 1.12
NZ25-8874 12.6 321.0 123 3,124 2 1.49

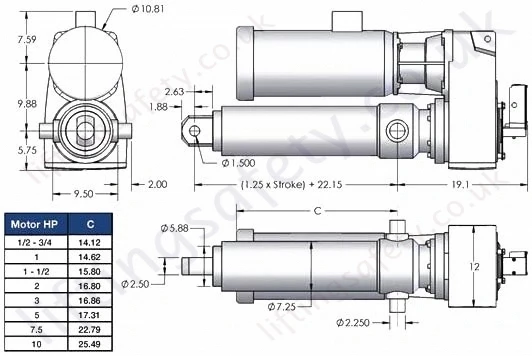

SCN25 Series Parallel Motor Diagram

SCN25 Series Parallel Motor Diagram
Part Number Rated Load Standard stroke Lengths Retracted Length Speed Max Stroke Motor Approx. Weight Weight added per inch of stroke
lbs N inch mm in (mm) in/min mm/min in mm HP kW
NU25-0432 13,505 60,073 6, 12, 18, 24, 36 152, 304, 457, 609, 914 22.15 (562) + (1.25 x Stroke) 259.7 6596.0 161 4,089 10 7.40 Contact for Exact Weight
NU25-3050 28,605 127,238 36.8 934.0 3 2.23
NU25-2036 31,824 141,561 55.1 1400.0 5 3.72
NU25-1538 36,060 160,403 73.0 1853.0 153 3,886 7 1/2 5.50
NU25-1300 40,640 180,775 86.3 2192.0 144 3,657 10 7.40
NU25-13403 41,900 186,379 8.4 213.0 142 3,606 1 0.74
NU25-1888 44,267 196,906 59.4 1509.0 138 3,505 7 1/2 5.50
NU25-10019 46,982 208,983 11.2 284.0 134 3,403 1 1/2 1.12
NU25-8161 50,000 222,409 13.7 349.0 129 3,276 2 1.49
NU25-5555 50,000 222,409 20.2 513.0 127 3,225 3 2.23

SCN25 Series Right Angle Motor Diagram

SCN25 Series Right Angle Motor Diagram
Part Number Rated Load Standard Stroke Length Retracted Length Speed Max Stroke Motor Approx. Weight Weight added per inch of stroke
lbs N inch mm in (mm) in/min mm/min in mm HP kW
NL25-0848 26,510 117,921 6, 12, 18, 24, 36 152, 304, 457, 609, 914 22.15 (562) + (1.25 x Stroke) 132.3 3360.0 161 4,089 10 7.40 Contact for exact Weights
NL25-2023 31,621 140,657 55.5 1409.0 161 4,089 5 3.72
NL25-3561 33,397 148,556 31.5 800.0 159 4,038 3 2.23
NL25-1708 40,046 178,133 65.7 1668.0 145 3,683 7 1/2 5.50
NL25-6408 40,065 178,217 17.5 445.0 145 3,683 2 1.49
NL25-13944 43,591 193,900 8.0 204.0 139 3,530 1 0.74
NL25-29585 46,244 205,701 3.8 96.0 135 3,429 1/2 0.37
NL25-19745 46,295 205,927 5.7 144.0 3/4 0.56
NL25-2966 46,361 206,223 37.8 961.0 5 3.72
NL25-1573 49,175 218,738 71.3 1811.0 131 3,327 10 7.40
NL25-11077 50,000 222,409 10.1 257.0 127 3,225 1 1/2 1.12
NL25-9350 12.0 305.0 120 3,048 2 1.49
NL25-5917 19.0 482.0 123 3,124 3 2.23
Custom Dropdown
Part N° Rated Loads (lbs) Rated Loads (N) Retracted Length in (mm) Speed (in/min) Speed (mm/min) Max Stroke (inch) Max Stroke (mm) Motor (HP) Motor (kW) Unit Price Quantity
4076-T8702
NZ25-0448
14,005 62,298 22.15 (562) + (1.25 x Stroke) 250.4 6360.0 161 4,089 10 7.40 Quote Required
4076-T8703
NZ25-2731
22,236 98,912 22.15 (562) + (1.25 x Stroke) 47.3 1202.0 161 4,089 3 2.23 Quote Required
4076-T8704
NZ25-1667
26,057 115,905 22.15 (562) + (1.25 x Stroke) 67.3 1709.0 161 4,089 5 3.72 Quote Required
4076-T8705
NZ25-1138
26,682 118,686 22.15 (562) + (1.25 x Stroke) 98.6 2504.0 161 4,089 7-1/2 5.50 Quote Required
4076-T8706
NZ25-0980
30,637 136,277 22.15 (562) + (1.25 x Stroke) 114.5 2908.0 161 4,089 10 7.40 Quote Required
4076-T8707
NZ25-1411
33,083 147,158 22.15 (562) + (1.25 x Stroke) 79.5 2019.0 160 4,064 7-1/2 5.50 Quote Required
4076-T8708
NZ25-2245
35,091 156,092 22.15 (562) + (1.25 x Stroke) 50.0 1269.0 155 3,937 5 3.72 Quote Required
4076-T8709
NZ25-12693
39,681 176,506 22.15 (562) + (1.25 x Stroke) 8.8 224.0 146 3,708 1 0.74 Quote Required
4076-T8710
NZ25-6412
40,090 178,328 22.15 (562) + (1.25 x Stroke) 17.5 444.0 145 3,683 2 1.49 Quote Required
4076-T8711
NZ25-40858
42,151 187,494 22.15 (562) + (1.25 x Stroke) 2.7 70.0 141 3,581 1/3 0.25 Quote Required
4076-T8712
NZ25-19069
44,710 198,877 22.15 (562) + (1.25 x Stroke) 5.9 149.0 137 3,479 3/4 0.56 Quote Required
4076-T8713
NZ25-28714
44,883 199,645 22.15 (562) + (1.25 x Stroke) 3.9 99.0 137 3,479 1/2 0.37 Quote Required
4076-T8714
NZ25-10088
47,305 210,422 22.15 (562) + (1.25 x Stroke) 11.1 282.0 133 3,378 1-1/2 1.12 Quote Required
4076-T8715
NZ25-5297
49,678 220,977 22.15 (562) + (1.25 x Stroke) 21.2 538.0 130 3,302 3 2.23 Quote Required
4076-T8716
NZ25-48256
79,783 221,442 22.15 (562) + (1.25 x Stroke) 2.3 59.0 130 3,302 1/3 0.25 Quote Required
4076-T8717
NZ25-23083
50,000 222,409 22.15 (562) + (1.25 x Stroke) 4.9 123.0 125 3,175 3/4 0.56 Quote Required
4076-T8718
NZ25-16146
50,000 222,409 22.15 (562) + (1.25 x Stroke) 6.9 176.0 129 3,076 1 0.74 Quote Required
4076-T8719
NZ25-11223
50,000 222,409 22.15 (562) + (1.25 x Stroke) 10.0 254.0 127 3,225 1-1/2 1.12 Quote Required
4076-T8720
NZ25-8874
50,000 222,409 22.15 (562) + (1.25 x Stroke) 12.6 321.0 123 3,124 2 1.49 Quote Required
