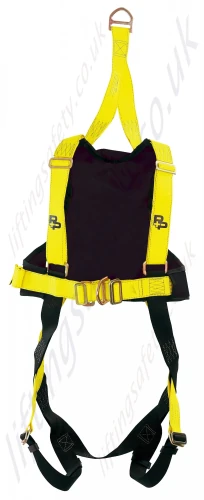

Two point, fall arrest harness, with 3 bar slide and rectangular link, leg and chest connections.
Adjustable length shoulder straps with a 3 bar buckle to ensure the chest strap is positioned over the sternum area, including a Nyplax waistcoat and an overhead rescue attachment.
The chest strap on this harness is a full chest strap going all the way around the chest to provide an exceptionally secure configuration which increases the distribution of load when using the front "D" ring.
Material Specification
Polyester webbing with carbon steel, heat treated and zinc plated metal fittings.
Attachment Points.
Rear fall arrest dorsal "D" ring, front sternum fall arrest "D" ring and overhead rescue attacment "D" ring.
Size/Length
Standard
Standards
EN361:2002, EN1497:1996
|
|
|
|
|
|
|

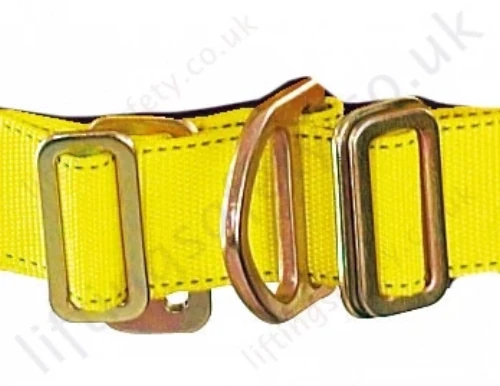

| Front Fall Arrest Anchorage D Connection Chest Buckle Not Qr |
Leg Connector Adjuster Not Quick Release |
Leg Connector Adjuster Rear View Not Quick Release |

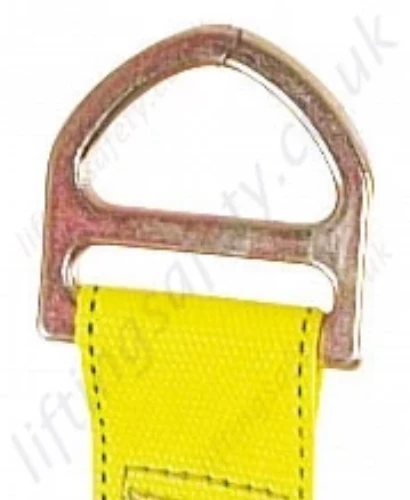

Overhead Rescue Connector Not Used For Fall Arrest |

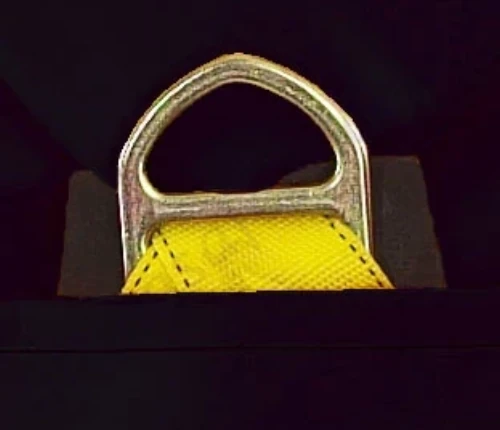

Rear Fall Arrest Anchorahe D Ring |

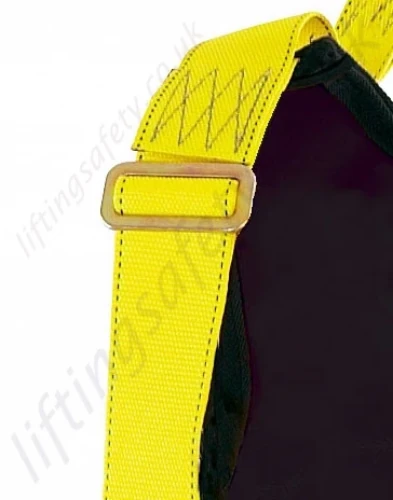

Shoulder Adjusting Buckles |
