This lifting point is 360° rotatable. The load ring is loadable in a wide range and can be positioned at any required angle due to its replaceable and patented spring.
The hexagonal special screw is also replaceable and secured against loss.
The PLAW pewag winner profilift alpha screw is made from 10.9 grade material, 100% crack-tested, covered with a chromate VI-free protection agent against corrosion and marked with the load capacity and thread size.
Pewag winner profilift alpha swivel lifting points are able to withstand a 4-fold safety factor against break in all directions and every single lifting point is marked with an individual serial number. .
Available with a metric or UNC-thread. The versions with metric thread are also available with customised thread lengths.
All load capacities, categorised by type of application, the number of legs and angle of inclination, are contained in a table (see below) that forms an integral part of the operating manual included with each lifting point.
Also available with peTAG (RFID tag) upon request.
PLAW Lifting Point Styles
Please refer to the .step files on the downloads tab for accurate and size specific style.
Pewag PLAW Alpha 0.3t to 1.5t and 4t (Not 2.5t or above 4t)
Pewag PLAW Alpha 2.5t to 20t, excluding 4t (Not 1.5t, below 1.5t or 4t)
Permitted usage
For load capacities in the permitted directions of pull, please refer to the load capacity table.
Non-permitted usage
During assembly, ensure that improper loading cannot arise due to any of the following factors:
Direction of pull is obstructed.
Direction of pull is not within the indicated area.
Loading ring rests against edges or loads.
The load ring must be placed in the direction of pull before loading – do not turn under load! For additional details and information, please refer to the full operating manual.
Custom Thread Lengths (Metric Only)
Calculating the required thread length (L) for custom or maximum thread lengths:
L = H + S + K + X
H = Material height
S = Thickness of the washer
K = Height of the nut (depending on the thread size of the screw)
X = Excess length of the screw (twofold pitch of the screw)
L max. = n max.
In addition to the standard and maximum thread lengths, pewag also offers cut-to-length thread lengths. Customised and maximum thread lengths are supplied with a washer and a screw nut.
For detailed information such as method of lifting, number of legs, angle of inclination etc., please refer to the tables with technical data.

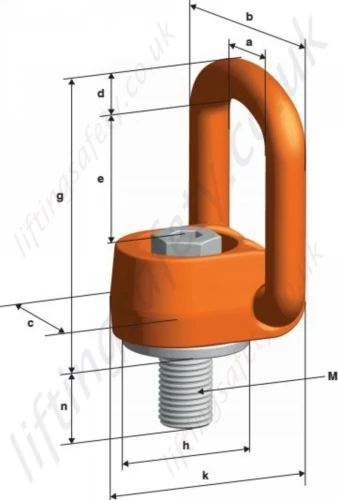

Specifications
Metric
| Code / Type |
Thread (mm) |
Load capacity (kg) |
a (mm) |
b (mm) |
c (mm) |
d (mm) |
e (mm) |
g (mm) |
h (mm) |
k (mm) |
n (mm) |
n max (mm) |
(mm) |
(mm) |
Weight (kg / pc.) |
| PLAW 0,3t |
M8 |
300 |
45 |
67 |
40 |
11 |
41 |
95 |
36 |
55 |
20 |
150 |
10 |
24 |
0.57 |
| PLAW 0,63t |
M10 |
630 |
45 |
67 |
40 |
11 |
41 |
95 |
36 |
55 |
20 |
150 |
10 |
24 |
0.58 |
| PLAW 1t |
M12 |
1,000 |
45 |
67 |
40 |
11 |
41 |
95 |
36 |
55 |
20 |
170 |
10 |
24 |
0.60 |
| PLAW 1,5t |
M16 |
1,500 |
45 |
67 |
40 |
11 |
41 |
95 |
36 |
55 |
24 |
260 |
10 |
24 |
0.60 |
| PLAW 2,5t |
M20 |
2,500 |
54 |
81 |
50 |
13 |
55 |
112 |
50 |
67 |
33 |
335 |
8 |
24 |
1.10 |
| PLAW 4t |
M24 |
4,000 |
54 |
87 |
50 |
17 |
67 |
142 |
45 |
70 |
36 |
361 |
14 |
36 |
1.60 |
| PLAW 6t |
M30 |
6,000 |
68 |
108 |
60 |
20 |
68 |
148 |
55 |
85 |
45 |
360 |
14 |
36 |
2.50 |
| PLAW 7t |
M36 |
7,000 |
75 |
115 |
67 |
20 |
65 |
143 |
60 |
100 |
55 |
374 |
27 |
- |
3.30 |
| PLAW 8t |
M36 |
8,000 |
93 |
147 |
85 |
27 |
87 |
188 |
85 |
120 |
55 |
365 |
19 |
41 |
3.80 |
| PLAW 10t |
M42 |
10,000 |
93 |
147 |
85 |
27 |
87 |
188 |
85 |
120 |
65 |
365 |
19 |
41 |
4.80 |
| PLAW 15t |
M42 |
15,000 |
115 |
181 |
105 |
33 |
108 |
246 |
106 |
150 |
63 |
340 |
19 |
55 |
12.00 |
| PLAW 20t |
M48 |
20,000 |
115 |
181 |
105 |
33 |
108 |
246 |
106 |
150 |
73 |
340 |
19 |
55 |
12.30 |
Imperial (UNC)
| Code / Type |
Thread (in.) |
Load capacity (lbs) |
a (in.) |
b (in.) |
c (in.) |
d (in.) |
e (in.) |
g (in.) |
h (in.) |
k (in.) |
n (in.) |
n max (in.) |
(in.) |
(in.) |
Weight (lbs / pc.) |
| PLAW U 3/8" |
3/8"-16 |
1,400 |
1.77 |
2.64 |
1.57 |
0.43 |
1.61 |
3.72 |
1.42 |
2.17 |
0.79 |
- |
3/8" |
15/16" |
1.30 |
| PLAW U 1/2" |
1/2"-13 |
2,200 |
1.77 |
2.64 |
1.57 |
0.43 |
1.61 |
3.72 |
1.42 |
2.17 |
1.30 |
- |
3/8" |
15/16" |
1.32 |
| PLAW U 5/8" |
5/8"-11 |
3,300 |
1.77 |
2.64 |
1.57 |
0.43 |
1.61 |
3.72 |
1.42 |
2.17 |
1.30 |
- |
3/8" |
15/16" |
1.39 |
| PLAW U 3/4" |
3/4"-10 |
4,400 |
2.13 |
3.19 |
1.97 |
0.51 |
2.24 |
4.21 |
1.97 |
2.64 |
1.30 |
- |
9/16" |
- |
2.40 |
| PLAW U 1" |
1"-8 |
8,800 |
2.95 |
4.53 |
2.64 |
0.79 |
2.68 |
5.63 |
2.64 |
3.94 |
1.42 |
- |
3/4" |
- |
6.60 |
| PLAW U 1-1/4" |
1-1/4"-7 |
13,200 |
2.95 |
4.53 |
2.64 |
0.79 |
2.68 |
5.63 |
2.64 |
3.94 |
1.93 |
- |
7/8" |
- |
6.80 |
| PLAW U 1-1/2" |
1-1/2"-6 |
17,600 |
3.66 |
5.79 |
3.35 |
1.06 |
3.35 |
7.40 |
3.35 |
4.72 |
2.17 |
- |
1-1/2" |
3/4" |
13.70 |
| PLAW U 1-3/4" |
1-3/4"-5 |
22,000 |
3.66 |
5.79 |
3.35 |
1.06 |
3.43 |
7.40 |
3.35 |
4.72 |
2.44 |
- |
1-1/4" |
- |
14.10 |
Load Charts
Metric
| Method of lifting |
 |
 |
 |
 |
 |
|
 |
|
 |
 |
| Number of legs |
1 |
1 |
2 |
2 |
2 |
2 |
3+4 |
3+4 |
2 |
3+4 |
| Angle of inclination |
0° |
90° |
0° |
90° |
0‑45° |
45‑60° |
0‑45° |
45‑60° |
asymm° |
asymm° |
| Code / Type |
Thread (mm) |
Fastening torque (Nm) |
Load capacity (kg) |
| PLAW 0,3t |
M8 |
35 |
300 |
300 |
600 |
600 |
400 |
300 |
600 |
400 |
300 |
300 |
| PLAW 0,63t |
M10 |
70 |
630 |
630 |
1,260 |
1,260 |
850 |
630 |
1,300 |
900 |
630 |
630 |
| PLAW 1t |
M12 |
120 |
1,000 |
1,000 |
2,000 |
2,000 |
1,400 |
1,000 |
2,100 |
1,500 |
1,000 |
1,000 |
| PLAW 1,5t |
M16 |
150 |
1,500 |
1,500 |
3,000 |
3,000 |
2,100 |
1,500 |
3,100 |
2,200 |
1,500 |
1,500 |
| PLAW 2,5t |
M20 |
170 |
2,500 |
2,500 |
5,000 |
5,000 |
3,500 |
2,500 |
5,300 |
3,700 |
2,500 |
2,500 |
| PLAW 4t |
M24 |
400 |
4,000 |
4,000 |
8,000 |
8,000 |
5,600 |
4,000 |
8,400 |
6,000 |
4,000 |
4,000 |
| PLAW 6t |
M30 |
500 |
6,000 |
6,000 |
12,000 |
12,000 |
8,500 |
6,000 |
12,700 |
9,000 |
6,000 |
6,000 |
| PLAW 7t |
M36 |
700 |
7,000 |
7,000 |
14,000 |
14,000 |
9,800 |
7,000 |
14,800 |
10,500 |
7,000 |
7,000 |
| PLAW 8t |
M36 |
800 |
8,000 |
8,000 |
16,000 |
16,000 |
11,300 |
8,000 |
16,900 |
12,000 |
8,000 |
8,000 |
| PLAW 10t |
M42 |
1,500 |
10,000 |
10,000 |
20,000 |
20,000 |
14,000 |
10,000 |
21,000 |
15,000 |
10,000 |
10,000 |
| PLAW 15t |
M42 |
1,500 |
15,000 |
15,000 |
30,000 |
30,000 |
21,000 |
15,000 |
31,500 |
22,500 |
15,000 |
15,000 |
| PLAW 20t |
M48 |
2,000 |
20,000 |
20,000 |
40,000 |
40,000 |
28,000 |
20,000 |
42,000 |
30,000 |
20,000 |
20,000 |
Imperial (UNC)
| Method of lifting |
|
|
|
|
|
|
|
|
|
|
| Number of legs |
1 |
1 |
2 |
2 |
2 |
2 |
3+4 |
3+4 |
2 |
3+4 |
| Angle of inclination |
0° |
90° |
0° |
90° |
0‑45° |
45‑60° |
0‑45° |
45‑60° |
asymm° |
asymm° |
| Code / Type |
Thread (inch) |
Fastening torque (ft-lbs) |
Load capacity (lbs) |
| PLAW U 3/8 |
3/8"-16 |
52 |
1,400 |
1,400 |
2,800 |
2,800 |
1,960 |
1,400 |
2,940 |
2,100 |
1,400 |
1,400 |
| PLAW U 1/2 |
1/2"-13 |
89 |
2,200 |
2,200 |
4,400 |
4,400 |
3,000 |
2,200 |
4,600 |
3,300 |
2,200 |
2,200 |
| PLAW U 5/8 |
5/8"-11 |
110 |
3,300 |
3,300 |
6,600 |
6,600 |
4,600 |
3,300 |
6,800 |
4,800 |
3,300 |
3,300 |
| PLAW U 3/4 |
3/4"-10 |
125 |
4,400 |
4,400 |
8,800 |
8,800 |
6,000 |
4,400 |
9,200 |
6,500 |
4,400 |
4,400 |
| PLAW U 1 |
1"-8 |
295 |
8,800 |
8,800 |
17,600 |
17,600 |
12,300 |
8,800 |
18,400 |
13,200 |
8,800 |
8,800 |
| PLAW U 1-1/4 |
1-1/4"-7 |
369 |
13,200 |
13,200 |
26,400 |
26,400 |
18,700 |
13,200 |
27,800 |
19,800 |
13,200 |
13,200 |
| PLAW U 1-1/2 |
1-1/2"-6 |
590 |
17,600 |
17,600 |
35,200 |
35,200 |
24,900 |
17,600 |
37,400 |
26,400 |
17,600 |
17,600 |
| PLAW U 1-3/4 |
1-3/4"-5 |
740 |
22,000 |
22,000 |
44,000 |
44,000 |
30,000 |
22,000 |
45,000 |
33,000 |
22,000 |
22,000 |
Safety factor 4
Important: Subject to technical changes! |
