Low Loading Fork Truck Mounted Skips 180 Litre to 1500 Litres - 840kg to 1200kg

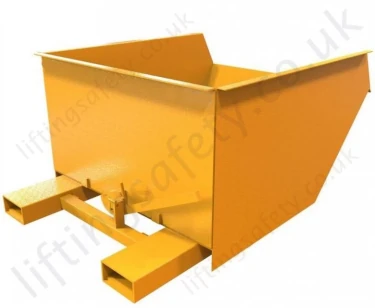

Low Loading Skip for use on a forklift truck or telehandler.

Model:

LLS-537


Description

+

This short skip has been designed with a very short overall height to fit into spaces where height is restricted.

E.g. below a swarf conveyor or press.

Ideal for use as a swarf bin, scrap bin, machined parts or blanks container.

Fitted with safety chain for securing to truck.

Optional Features

  • Galvanised finish - Hot dip galvanised finish.
  • Standard castors - 100mm diameter nylon, 2 fixed, 2 unbraked swivel.
  • Braked castors - 100mm diameter nylon, 2 fixed, 2 braked swivel.
  • Heavy duty castors - 100mm diameter cast iron, 2 fixed, 2 unbraked swivel.
  • Lifting lugs - Set of four allowing skip to be lifted by crane.
  • Fork clamps - Clamp skips onto forks.
  • Drain taps - Protected tap in base for draining liquids.
  • Auto retention - Locks and unlocks skip to forks automatically.

Technical Specifications

Model Ref A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) H (mm) J (mm) K (mm)
537-12102 715 590 400 150 458 410 654 1093 290
537-12103 970 950 535 510 806 620 1014 1348 430
537-12104 1340 1200 695 598 894 790 1264 1718 600
537-12105 1490 1450 800 598 894 890 1514 1868 680

low loading skips lls dimensions

Pricing

+
Part N° Capacity (kg) Capacity (litres) Lip Height (K)(mm) Fork Spread (E) (mm) Overall Length (J)(mm) Weight (kg) Max Fork Size (mm) Unit Price Quantity
537-T12102 840kg 180 290 458 1093 80 140 x 60 £ 1430.00
537-T12103 1000kg 500 460 806 1348 135 140 x 60 £ 1505.00
537-T12104 1000kg 1000 600 894 1718 190 140 x 60 £ 1895.00
537-T12105 1200kg 1500 680 894 1868 230 140 x 60 £ 2570.00
Add To Quote Request   ?

This short skip has been designed with a very short overall height to fit into spaces where height is restricted.

E.g. below a swarf conveyor or press.

Ideal for use as a swarf bin, scrap bin, machined parts or blanks container.

Fitted with safety chain for securing to truck.

Optional Features

  • Galvanised finish - Hot dip galvanised finish.
  • Standard castors - 100mm diameter nylon, 2 fixed, 2 unbraked swivel.
  • Braked castors - 100mm diameter nylon, 2 fixed, 2 braked swivel.
  • Heavy duty castors - 100mm diameter cast iron, 2 fixed, 2 unbraked swivel.
  • Lifting lugs - Set of four allowing skip to be lifted by crane.
  • Fork clamps - Clamp skips onto forks.
  • Drain taps - Protected tap in base for draining liquids.
  • Auto retention - Locks and unlocks skip to forks automatically.

Technical Specifications

Model Ref A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) H (mm) J (mm) K (mm)
537-12102 715 590 400 150 458 410 654 1093 290
537-12103 970 950 535 510 806 620 1014 1348 430
537-12104 1340 1200 695 598 894 790 1264 1718 600
537-12105 1490 1450 800 598 894 890 1514 1868 680

low loading skips lls dimensions

Part N° Capacity (kg) Capacity (litres) Lip Height (K)(mm) Fork Spread (E) (mm) Overall Length (J)(mm) Weight (kg) Max Fork Size (mm) Unit Price Quantity
537-T12102 840kg 180 290 458 1093 80 140 x 60 £ 1430.00
537-T12103 1000kg 500 460 806 1348 135 140 x 60 £ 1505.00
537-T12104 1000kg 1000 600 894 1718 190 140 x 60 £ 1895.00
537-T12105 1200kg 1500 680 894 1868 230 140 x 60 £ 2570.00
Add To Quote Request   ?
