Lifting Chain Sling Assemblies, Grade 8 / 80 - Chain Diameters 7mm to 32mm. WLL 1500kg to 67,000kg

Model:  LCS-2564

Number of Legs
Chain Diameter / WLL
End Fittings
Chain Length (bearing to bearing) (m) ?
@ £4.55 (min:2.0) (2.0 included in price)

Unit Price £ 40.58
Part N°: 2564-13983704   Add to Quote Request

Assemble a standard chain sling to your lifting specifications (number of legs, SWL, hooks, chain length etc..)

Single Leg Chains, 2 Leg Chains, 3 Leg and 4 Leg Chain slings at any length to suit your application with a shortening clutch fitted for leg length adjustment

  • Choice of end fitting, many types of lifting hooks and shackles.
  • Grade 80 (gr 8 / GR:80) advertised here (also know as Grade T), though we also supply Grade 100 chain slings (GR:100 / GR 10).
  • We distribute for most reputable manufacturers of chain slings including Crosby, Kuplex, Rud and Pewag so please contact us if you need a quote for any of these chain slings.
  • We do not sell the lesser quality cheap Far East imported chain sling systems

Chain diameters and capacities

  • 7mm chain = from 1.5 tonne (1500kg) to 3.1 tonnes (3100kg).
  • 8mm chain = from 2 tonne (2000kg) to 4.2 tonnes (4200kg).
  • 10mm chain = from 3.15 tonne (3150kg) to 6.7 tonnes (6700kg).
  • 13mm chain = from 5.3 tonne (5300kg) to 11.2 tonnes (11200kg).
  • 16mm chain = from 8.0 tonne (8000kg) to 17 tonnes (17000kg).
  • 20mm chain = from 12.5 tonne (12500kg) to 26.5 tonnes (26500kg).
  • 22mm chain = from 15 tonne (15000kg) to 31.5 tonnes (31500kg).
  • 26mm chain = from 21.2 tonne (21200kg) to 45.0 tonnes (45000kg).
  • 32mm chain = from 31.5 tonne (31500kg) to 67.0 tonnes (67000kg).
  • See load chart below for more details on WLL's (working load limits).

Single Leg, 2 Leg, 3 Leg and 4 Leg Lifting Slings are available with various fittings, SWL's and extra's.

Single Leg Chain Sling with Sling Hooks
1 Leg with Sling Hook
2 Leg Chain Sling with Self-Locking Hooks and Shoretening Clutches
2 Leg Chain Sling with Self-Locking Hooks and Shortening Clutches
3 Leg Chain Sling with Sling Hooks and Shortening Clutches
3 Leg Chain Sling with Shortening Clutches and Sling Hooks
4 Leg Chain Sling with Sling Hooks and Shornening Grab Hooks
4 Leg Chain Sling with Shortening Grab Hooks and Sling Hooks

Please contact us for a quotation for a chain sling manufactured by:
RUD as we distribute for all major manufacturers and suppliers.

Grade 10 (grade 100) certified lifting chain slings are available priced upon request.

Chain Sling End Fittings

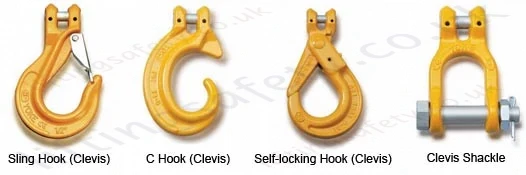

Chain Sling Clevis Sling Hook

Sling Hook (Clevis)

Chain Sling Clevis C-Hook

C Hook (Clevis)

Chain Sling Clevis Self-Locking Hook

Self Locking Hook (Clevis)

Chain Sling Eye Foundry Hook

Foundry Hook (Eye)

Chain Sling Clevis Shackle

Clevis Shackle

More end fittings are available on request please contact us for more information.

Shortening Devices (Extra's)

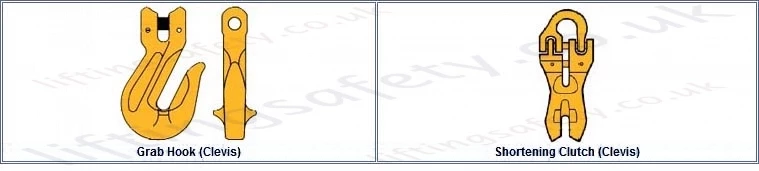

Chain Sling Clevis Grab Hook

Grab Hook (Clevis)

Chain Sling Clevis Shortening Clutch

Shortening Clutch (Half-Link)

Chain Sling Selection

In this catalogue the maximum working load limit for each size of chain is shown. These ratings are based on ideal
conditions, however in practice, working conditions may vary widely. All lifting applications should be assessed by a
competent person in order to establish the size and type of sling required.

Angles and Tensions between Legs

Angle Tensions

In the case of multi-leg slings, the angle between the legs is critical. The actual tension on each leg increases when the angle between the legs increases as shown in the diagram opposite. For this reason all general purpose chain slings are given a rating based upon use at 90º inc. angle. The included angle between the legs should never exceed 120º.

Angle Headroom Examples

Chain Sling Headroom

The distance between the crane hook and the load is known as the “Head Room”. If a specific head room is required, the “Reach” of the chain sling must increase as the angle between the legs increases as shown opposite.

Chain Sling Reach

Lifting Reach - Effective Working Length

Also know as bearing to bearing (b-p) or chain length.

The reach of a chain sling is the distance between bearing points of the upper and lower terminal fittings. This distance, commonly known as the “Bearing to Bearing” should be quoted when ordering slings.

Shortening clutches may be fitted to a sling, making the reach adjustable, hence increasing the versatility of the sling.

Unusual Applications

Recommended Load Factors for unusual slinging methods and conditions.
Factor normally applied to W.L.L. of a Single Chain.

Chain sling unusual applications 1
Chain sling unusual applications 2
Chain sling unusual applications 3
Chain sling unusual applications 4
Chain sling unusual applications 5

Temperature loadings: Applicable to chain temperature

  • -40º to 200º C 1
  • 200º C to 300º C 0,9
  • 300º C to 400º C 0,75

Edge loadings: Applicable to load lifting and load lashing

Chain sling edge loadings - r = more than 2 x chain size 1

r = more than 2 x chain size

Chain sling edge loadings - r = more than chain size 0,7

r = more than chain size

Chain sling edge loadings - Not recommended without edge protection

Not recommended without corner protection

Working Load Limits

Uniform Load Method of Rating BS EN 818-4
All general purpose slings should be rated by the uniform load method as shown in the table below.

Chain Size Single Leg Chain Sling 2 Leg Chain Sling 3 and 4 Leg Chain Sling
Single Leg Two Leg
Two Leg
Three and Four Leg
Three and Four Leg
7mm 1.5 tonne 2.1 tonne 1.5 tonne 3.1 tonne 2.2 tonne
8mm 2.0 tonne 2.8 tonne 2.0 tonne 4.2 tonne 3.0 tonne
10mm 3.15 tonne 4.25 tonne 3.15 tonne 6.7 tonne 4.75 tonne
13mm 5.3 tonne 7.5 tonne 5.3 tonne 11.2 tonne 8.0 tonne
16mm 8.0 tonne 11.2 tonne 8.0 tonne 17.0 tonne 11.8 tonne
20mm 12.5 tonne 17.0 tonne 12.5 tonne 26.5 tonne 19.0 tonne
22mm 15.0 tonne 21.2 tonne 15.0 tonne 31.5 tonne 22.4 tonne
26mm 21.2 tonne 30.0 tonne 21.2 tonne 45.0 tonne 31.5 tonne
32mm 31.5 tonne 45.0 tonne 31.5 tonne 67.0 tonne 47.5 tonne

Grade ‘T’ (8 / 80) Chain BS EN 818-2 Chain Suppliers : Grade 10 / 100 Available on request

Hackett Grade T(8) Alloy Steel Chain is manufactured specifically for use in chain slings for lifting purposes. The chain is heat treated for tensile strength and resistance to wear whilst also allowing for shock absorption. The chain is easily identifiable with “MA8” embossed at metre intervals.


  • Working Load Limited (W.L.L.) is the maximum load which chain or components are designed to sustain in lifting use. The mean stress at this load is 200n/mm2 (MPA) and is based on a factor of safety of 4:1.
  • Manufacturing Proof Force (M.P.F.) is the force to which during manufacture chain or components are subjected. The mean stress at this load is 500n/mm2 (MPA) which is 2.5 times the working load limit.
  • Minimum Breaking Load (M.B.L.) is the minimum force which chain or components must withstand before failure. The mean stress at this load is 800n/mm2 (MPA). The minimum elongation before failure is 20%.

Instructions for the safe use of chain slings

This document is issued in accordance with the requirements of Section 6 of the Health and Safety at Work etc Act 1974, amended March 1988. It outlines the care and safe use of general purpose CHAIN SLINGS and is based on Section 13 of the LEEA Code of Practice for the Safe Use of Lifting Equipment.* It should be read in conjunction with the requirements for general purpose slinging practice, given overleaf, which form an integral part of these instructions. This information is of a general nature only covering the main points for the safe use of chain slings. It may be necessary to supplement this information for specific applications.

When using chain slings always:

  • Store and handle chain slings correctly.
  • Inspect chain slings and accessories before use and before placing into storage.
  • Follow safe slinging practices, as given overleaf.
  • Fit slings carefully, protect them from sharp edges and position hooks to face outward from the load.
  • Apply the correct mode factor for the slinging arrangement.
  • Back hook free legs onto the master link.

When using chain slings never:

  • Attempt to shorten a sling leg other than by means of an integral chain clutch.
  • Force, hammer or wedge chain slings or their fittings into position.
  • Lift on the point of a hook.
  • Expose chain slings to chemicals, particularly acidic conditions, without consulting the supplier.
  • Use chain slings at temperatures above 200°C or below minus 40°C without consulting the supplier.
  • Shock load chain slings.

Selecting the Correct Sling

Chain slings are available in a range of material grades, sizes and assemblies. Select the slings to be used and plan the lift taking the following into account:

  • Type of sling to be used - endless, single, two, three or four leg.
  • Capacity - the sling must be both long enough and strong enough for the load and the slinging method.
  • Apply the mode factor for the slinging method.
  • If adjustment of the leg length is necessary select a sling with chain shortening clutches.
  • For use at temperatures exceeding 200°C or below minus 40°C refer to the suppliers instructions.
  • Where slings may come into contact with chemicals, particularly acids or acidic fumes, consult the supplier.**
  • In the case of multi-leg slings the angle between the legs should not be less than 30° or exceed the maximum marked.
  • Multi-leg slings exert a gripping force on the load which increases as the angle between the legs increases and this must be taken into account.

Storing and Handling Chain Slings

Never return damaged or contaminated slings to storage. They should be dry, clean and protected from corrosion. Store chain slings on a rack and not lying on the ground. The storage area should be dry, clean and free of any contaminates which may harm the sling. Do not alter, modify or repair a chain sling but refer such matters to a Competent Person. Never galvanise or subject a chain sling to any other plating process without the express approval of the supplier.

Using Chain Slings Safely

  • Do not attempt lifting operations unless you understand the use of the equipment, the slinging procedures and the mode factors to be applied.
  • Do not use defective slings or accessories.
  • Do not force, hammer or wedge chain slings or fittings into position; they must fit freely. Check the correct engagement of fittings and appliances.
  • Position hooks of multi-leg slings facing outward from the load. Do not lift on the point of the hook and ensure that the chain is not twisted or knotted.
  • Back hook free legs to the master link to avoid lashing legs which might accidentally become engaged or otherwise become a hazard.
  • Take the load steadily and avoid shock loads.
  • Do not leave suspended loads unattended. In an emergency cordon off the area.
  • In-service Inspection and Maintenance
  • Maintenance requirements are minimal. Keep chain slings clean and protect from corrosion.
  • Regularly inspect chain slings and, in the event of the following defects, refer the sling to a Competent Person for thorough examination: illegible markings; distortion of fittings; worn, stretched, bent or twisted links; ineffective safety catches; cuts, nicks, gouges, cracks, corrosion, heat discolouration or any other defect apparent to the chain or fittings.

Further information is given in: ** HSE Guidance Note PM 39 - Hydrogen Embrittlement of Grade T Chain.* The Code of Practice for the Safe Use of Lifting Equipment, published by: LEEA


The following information is based on Section 1 - Appendix 1.5 of the LEEA Code of Practice for the Safe Use of Lifting Equipment.* It should be read in conjunction with the instructions for the safe use, given overleaf, of which it forms an integral part and with any specific instructions issued by the supplier. This information is of a general nature only covering the main points for the safe use of various types of slings for general lifting purposes.


  • Plan the lift, establish the weight of the load and prepare the landing area ensuring that it will take the weight.
  • Check slings and equipment are free of damage, use slings/slinging methods suitable for the load and protect slings from sharp edges and corners.
  • Attach the sling securely to the load and appliance and position hooks to face outwards.
  • Ensure the load is balanced and will not tilt or fall.
  • Keep fingers, toes etc clear when tensioning slings and when landing loads.
  • Ensure that the load is free to be lifted.
  • Make a trial lift and trial lower.


  • Use damaged slings or accessories.
  • Twist, knot or tie slings.
  • Hammer slings into position.
  • Overload slings due to the weight of the load or the mode of use.
  • Trap slings when landing the load.
  • Drag slings over floors etc or attempt to pull trapped slings from under loads.
  • Allow personnel to ride on loads.

Sling Configurations and Rating

Slings are available in single, two, three and four leg or endless form. In practice it will be found that chain, wire rope and fibre rope slings are available in any of these configurations but that flat woven webbing is limited to single leg and endless whilst roundslings are only supplied in endless form. The maximum load that a sling may lift in use will be governed by the slinging arrangement (mode of use) and may vary from the marked SWL.** In the case of textile slings the SWL for the various modes of use is usually given on the information label. In other cases it is necessary to multiply the marked SWL by a mode factor.***

The following three simple rules will ensure that the sling is not overloaded. In some cases this will mean that the sling will be under utilised although this is unlikely to hinder the user unduly. Where the maximum utilisation is required reference should be made to a Competent Person who understands the factors involved and who can perform the necessary calculations. (1) For straight lift never exceed the marked SWL and in the case of multi-leg slings the specified angle or range of angles. (2) When using slings in choke hitch multiply the marked SWL by 0.8 to obtain the reduced maximum load the sling may lift ie reduce the safe working load by 20%. (3) With multi-leg slings, when using less than the full number of legs, reduce the maximum load in proportion to the number of legs in use. Simply multiply the marked SWL by the number of legs in use expressed as a fraction of the total thus: one leg of a two leg sling = ½ marked SWL, three legs of a four leg sling = ¾ marked SWL and so on.

Operative Training

Slings should only be used by trained operatives who understand the methods of rating and application of mode factors.**** Safe use of Slings

  • Good slinging practice must ensure that the load is as safe and secure in the air as it was on the ground and that no harm is done to the load, lifting equipment, other property or persons.
  • Establish the weight of the load, ensure the lifting method is suitable and inspect the sling and attachments for obvious defects. Prepare the landing area making sure the floor is strong enough to take the load. Follow any specific instructions from the supplier.
  • Ensure the lifting point is over the centre of gravity. Any loose parts of the load should be removed or secured. Secure the sling firmly to the load by hooks onto lifting points or shackles etc. The sling must not be twisted, knotted or kinked in any way.
  • Use packing to prevent damage to the sling from corners or edges and to protect the load.
  • Do not exceed the SWL or rated angle. Any choke angle must not exceed 120° and any basket 90°.
  • Do not hammer, force or wedge slings or accessories into position; they must fit freely.
  • When attaching more than one sling to the hook of the appliance use a shackle to join the slings and avoid overcrowding the hook.
  • Use an established code of signals to instruct the crane driver.
  • Ensure the load is free to be lifted and not, for example, bolted down.
  • Check that there are no overhead obstacles such as power lines.
  • Keep fingers, toes etc clear ensuring they do not become trapped when lifting, lowering or controlling loads.
  • Make a trial lift by raising the load a little to ensure it is balanced, stable and secure and if not lower it and adjust the slinging arrangement.
  • Where appropriate use tag lines to control the load.
  • Except where special provision is made, do not allow anyone to pass under or ride upon the load. The area should be kept clear.
  • Make a trial set down, ensure the sling will not become trapped and the load will not tip when the slings are released. Use supports which are strong enough to sustain the load without crushing.
  • Never drag slings over floors etc or attempt to drag a trapped sling from under a load.
  • Never use a sling to drag a load.
  • Place the hooks of free legs back onto the master link and take care to ensure that empty hooks do not become accidentally engaged.
  • Never use slings in contact with chemicals or heat without the manufacturers approval.
  • Never use damaged or contaminated slings.
  • On completion of the lift return all equipment to proper storage.

Further information is given in: *LEEA Code of Practice for the Safe Use of Lifting Equipment. **BS 6166 Part 1 - Lifting Slings, Methods of Rating. *** BS 6166 Part 3 - Selection and Safe Use of Lifting Slings for Multi-purposes. **** HSE Guidance Note GS39 - Training of Crane Drivers and Slingers. Various British Standards covering individual products.
