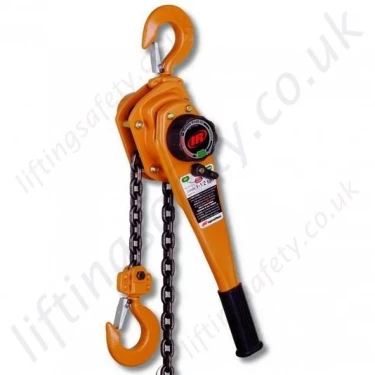

Ingersoll Rand Heavy Duty Premium Lever Hoist - Range from 750kg to 6000kg

High performance manual lever hoist - Pressed steel body.

Model:

L5H / LP-3403


Ingersoll Rand's line of Lever Chain Hoists offer the ultimate in performance, endurance, and safety. Capacities and features make these Lever Chain Hoists perfect for all industrial lifting, pulling, and positioning applications.

Features

  • Torsion-Lok™ brake system ensure positive brake engagement.
  • 360° rotation handle needs only 15° handle movement to ratchet loads. Ideal for tight spaces.
  • Rugged lightweight stamped steel construction.
  • Colour coded red / green indicator (load or free chain).
  • Simple one-hand free chaining operation.
  • Meets ASME B30.21 Specifications and HST - 3M standards.
  • 3/4 - 6 tonne capacities.
  • Easy free chaining operation.
  • Grade 100 alloy load chain.
  • Bullard bottom hooks available for single fall models.
  • Open frame design for easy cleaning and inspection.
  • A comfortable slip resistant rubber grip handle.

Options

  • Nickel diffused load chain.
  • Overload plated load chain.
  • Zinc plated load chain.
  • European machinery directive models available.

Dimensions & Specifications

Model Nominal load capacity (kg) Pull to lift ratedload (kg) Number of falls Height of lift (m) Weight with 1.5 m of lift (kg) Chain weight / 1m extra lift (kg) Dimensions (mm)
A min. B C D E
L5H150 750 15.9 1 1.5 to 6.0 6.8 0.86 311 127 152 31 257
L5H300 1500 18.2 1 1.5 to 6.0 9.5 1.13 349 147 168 38 368
L5H600 3000 33.2 1 1.5 to 6.0 15.4 1.80 425 180 200 47 368
L5H1200 6000 35.0 2 1.5 to 6.0 28.2 3.60 565 241 200 51 368

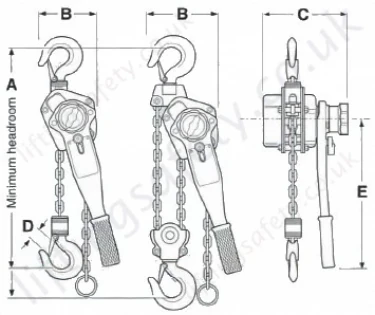

Dimensions

L5H-Operations-manual.PDF

User Manual

Comprehensive instructions of use, spare parts list, safety information and dimensional drawings.
(approx. 0.8Mb)

Ingersoll Rand's line of Lever Chain Hoists offer the ultimate in performance, endurance, and safety. Capacities and features make these Lever Chain Hoists perfect for all industrial lifting, pulling, and positioning applications.

Features

  • Torsion-Lok™ brake system ensure positive brake engagement.
  • 360° rotation handle needs only 15° handle movement to ratchet loads. Ideal for tight spaces.
  • Rugged lightweight stamped steel construction.
  • Colour coded red / green indicator (load or free chain).
  • Simple one-hand free chaining operation.
  • Meets ASME B30.21 Specifications and HST - 3M standards.
  • 3/4 - 6 tonne capacities.
  • Easy free chaining operation.
  • Grade 100 alloy load chain.
  • Bullard bottom hooks available for single fall models.
  • Open frame design for easy cleaning and inspection.
  • A comfortable slip resistant rubber grip handle.

Options

  • Nickel diffused load chain.
  • Overload plated load chain.
  • Zinc plated load chain.
  • European machinery directive models available.

Dimensions & Specifications

Model Nominal load capacity (kg) Pull to lift ratedload (kg) Number of falls Height of lift (m) Weight with 1.5 m of lift (kg) Chain weight / 1m extra lift (kg) Dimensions (mm)
A min. B C D E
L5H150 750 15.9 1 1.5 to 6.0 6.8 0.86 311 127 152 31 257
L5H300 1500 18.2 1 1.5 to 6.0 9.5 1.13 349 147 168 38 368
L5H600 3000 33.2 1 1.5 to 6.0 15.4 1.80 425 180 200 47 368
L5H1200 6000 35.0 2 1.5 to 6.0 28.2 3.60 565 241 200 51 368
Dimensions

L5H-Operations-manual.PDF

User Manual

Comprehensive instructions of use, spare parts list, safety information and dimensional drawings.
(approx. 0.8Mb)
