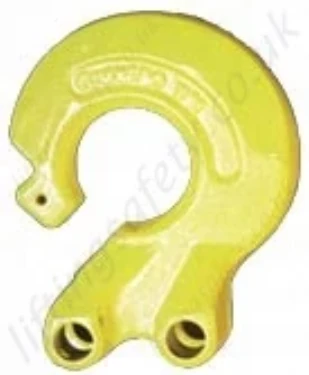

Gunnebo "GrabiQ C-Lok CLD" Chain Lifting Coupler, for Chain Sizes 6mm to 16mm
Gunnebo chain sling lifting coupler, range from 2.1t to 14t
Model:
GrabiQ C-lok CLD / GCCC-4022
- Gunnebo GrabiQ, Grade 10.
- For use with Gunnebo master links.
- Manufactured from quenched and tempered alloy steel, a guarantee for very high strength, low weight, high wear resistance and long life.
- Uniformly marked with equivalent chain size, grade, manufacture's designation and name for positive identification.
- Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015
- Safety factor 4:1
Dimensions & Specifications
| Type | WLL (t) | L (mm) | B (mm) | E (mm) | H (mm) | Weight (kg) |
| CLD-6-10 | 2.1 | 43 | 11 | 24 | 22 | 0.4 |
| CLD-8-10 | 3.5 | 58 | 12 | 32 | 29 | 0.61 |
| CLD-10-10 | 5.6 | 74 | 15 | 40 | 37 | 1.22 |
| CLD-13-10 | 9.5 | 94 | 18 | 52 | 46 | 3.075 |
| CLD-16-10 | 14 | 119 | 25 | 64 | 57 | 5.5 |
- Gunnebo GrabiQ, Grade 10.
- For use with Gunnebo master links.
- Manufactured from quenched and tempered alloy steel, a guarantee for very high strength, low weight, high wear resistance and long life.
- Uniformly marked with equivalent chain size, grade, manufacture's designation and name for positive identification.
- Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015
- Safety factor 4:1
Dimensions & Specifications
| Type | WLL (t) | L (mm) | B (mm) | E (mm) | H (mm) | Weight (kg) |
| CLD-6-10 | 2.1 | 43 | 11 | 24 | 22 | 0.4 |
| CLD-8-10 | 3.5 | 58 | 12 | 32 | 29 | 0.61 |
| CLD-10-10 | 5.6 | 74 | 15 | 40 | 37 | 1.22 |
| CLD-13-10 | 9.5 | 94 | 18 | 52 | 46 | 3.075 |
| CLD-16-10 | 14 | 119 | 25 | 64 | 57 | 5.5 |
