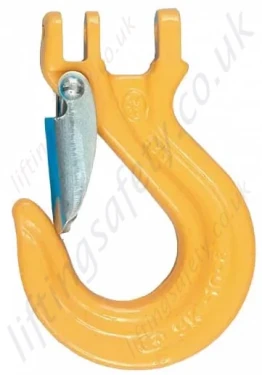

Gunnebo Grade 8 "ESKN Series" Sling Hook With Latch Range from 5,400kg to 12,800kg

Gunnebo Grade 8 "ESKN Series" Sling Hook With Latch Range from 5,400kg to 12,800kg

For 13mm to 19mm Chain Slings

Model:

GESH-4242

Dimensions

Type	WLL (t)	For Chain Size (mm)	L (mm)	B (mm)	G (mm)	H (mm)	Weight (kg)
ESKN-13-8	5.4	13	145	42	28	36	1.89
ESKN-16-8	8.2	16	178	54	38	43	3.35
ESKN-18/20-8	12.8	19	197	59	49	51	4.77

Part N°	Type	WLL (t)	For Chain Size (mm)	L (mm)	B (mm)	G (mm)	H (mm)	Weight (kg)	Unit Price
4242-T22401 Z101214	ESKN-13-8	5.4	13	145	42	28	36	1.89	Quote Required
4242-T22402 Z100786	ESKN-16-8	8.2	16	178	54	38	43	3.35	Quote Required
4242-T22403 Z100781	ESKN-18/20-8	12.8	19	197	59	49	51	4.77	Quote Required
Add To Quote Request × More information about shopping on LiftingSafety Quotation Help Please choose the correct configuration of your desired product, then once complete - press on the 'Request Quote' button, this item will then be added to your basket (). To view your basket, simply click on the basket icon at the top of the page OK ?

Description
Pricing

Dimensions

Type	WLL (t)	For Chain Size (mm)	L (mm)	B (mm)	G (mm)	H (mm)	Weight (kg)
ESKN-13-8	5.4	13	145	42	28	36	1.89
ESKN-16-8	8.2	16	178	54	38	43	3.35
ESKN-18/20-8	12.8	19	197	59	49	51	4.77

Part N°	Type	WLL (t)	For Chain Size (mm)	L (mm)	B (mm)	G (mm)	H (mm)	Weight (kg)	Unit Price
4242-T22401 Z101214	ESKN-13-8	5.4	13	145	42	28	36	1.89	Quote Required
4242-T22402 Z100786	ESKN-16-8	8.2	16	178	54	38	43	3.35	Quote Required
4242-T22403 Z100781	ESKN-18/20-8	12.8	19	197	59	49	51	4.77	Quote Required
