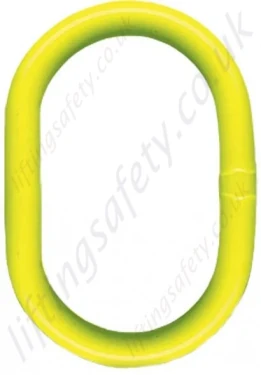

Gunnebo Grade 8 Master Link "M Series", Range from 28,000kg to 56,000kg

Gunnebo alloy steel master ring, WLL range from 28 tonnes 56 tonnes

Model:

GMML-4212


  • Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M, ASME B30.26, AS 3775:2015 and AS 3776:2015

Dimensions & Specifications

Type WLL (t) L (mm) E (mm) D (mm) Weight (kg)
M-2622-10 28 250 150 42 7.8
M-3226-10 43 300 200 50 15.01
M-3632-10 56 350 200 55 20.7
Grade 8 Master Link M Dimensions



Part N° Type WLL (t) L (mm) E (mm) D (mm) Weight (kg) Unit Price Quantity
4212-T22294
Z101275
M-2622-10 28 250 150 42 7.8 £  102.35
4212-T22295
Z101276
M-3226-10 43 300 200 50 14.8 £  185.93
4212-T22296
Z101277
M-3632-10 56 350 200 55 20.7 £  282.13
Pricing Currency: Not available at the moment. Add To Quote Request   ?
  • Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M, ASME B30.26, AS 3775:2015 and AS 3776:2015

Dimensions & Specifications

Type WLL (t) L (mm) E (mm) D (mm) Weight (kg)
M-2622-10 28 250 150 42 7.8
M-3226-10 43 300 200 50 15.01
M-3632-10 56 350 200 55 20.7
Grade 8 Master Link M Dimensions



Part N° Type WLL (t) L (mm) E (mm) D (mm) Weight (kg) Unit Price Quantity
4212-T22294
Z101275
M-2622-10 28 250 150 42 7.8 £  102.35
4212-T22295
Z101276
M-3226-10 43 300 200 50 14.8 £  185.93
4212-T22296
Z101277
M-3632-10 56 350 200 55 20.7 £  282.13
Pricing Currency: Not available at the moment. Add To Quote Request   ?
