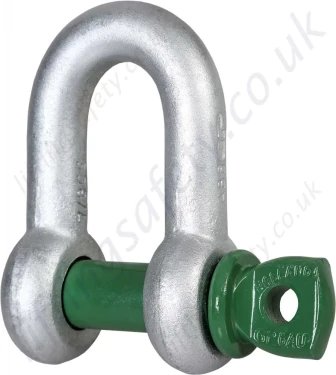

Green Pin G-4151 Standard Screw Pin Dee Shackle, Range from 330kg to 55 tonne
Grade 6, Galvanised Green Pin D-Shackle with Screw Pin
Model:
G4151 / GPSP-4564


- Grade 6 high tensile steel, quenched and tempered.
- Minimum breaking load is 6 times the W.L.L.
- Conforms to EN 13889 and meets the performance requirements of US Fed Spec RC-C-271 Type IVA class 2, Grade A.
- Hot dipped galvanised.
- Temperature range -40 ° C upto +200 ° C.
- Supplied with proof load certificate, material certificate available on request.

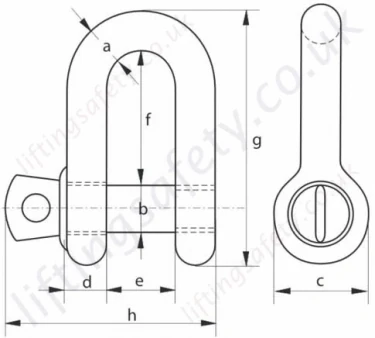

Deminsions and Specifications
W.L.L (tonnes) | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) | g (mm) | h (mm) | Weight (kg) |
0.33 | 5 | 6 | 12.5 | 5 | 9.5 | 19 | 38 | 31 | 0.02 |
0.5 | 7 | 8 | 17 | 7 | 12 | 22 | 47 | 40 | 0.05 |
0.75 | 9 | 10 | 21 | 9 | 13.5 | 26 | 56 | 49 | 0.09 |
1 | 10 | 11 | 23 | 10 | 17 | 32 | 66 | 56 | 0.14 |
1.5 | 11 | 13 | 26 | 11 | 19 | 37 | 74 | 68 | 0.19 |
2 | 13.5 | 16 | 34 | 13.5 | 22 | 43 | 85 | 76 | 0.32 |
3.25 | 16 | 19 | 40 | 16 | 27 | 51 | 105 | 93 | 0.54 |
4.75 | 19 | 22 | 47 | 19 | 31 | 59 | 125 | 107 | 0.87 |
6.5 | 22 | 25 | 53 | 22 | 36 | 73 | 144 | 123 | 1.34 |
8.5 | 25 | 28 | 60 | 25 | 43 | 85 | 161 | 141 | 2.08 |
9.5 | 28 | 32 | 67 | 28 | 47 | 90 | 179 | 158 | 2.77 |
12 | 32 | 35 | 74 | 32 | 51 | 94 | 199 | 176 | 3.72 |
13.5 | 35 | 38 | 80 | 35 | 57 | 115 | 220 | 192 | 5.14 |
17 | 38 | 42 | 89 | 38 | 60 | 127 | 239 | 208 | 6.85 |
25 | 45 | 50 | 104 | 45 | 74 | 149 | 283 | 250 | 11.45 |
35 | 50 | 57 | 111 | 50 | 83 | 171 | 333 | 281 | 16.86 |
42.5 | 57 | 65 | 134 | 57 | 95 | 190 | 360 | 321 | 24.61 |
55 | 65 | 70 | 145 | 65 | 105 | 203 | 399 | 355 | 32.65 |

- Grade 6 high tensile steel, quenched and tempered.
- Minimum breaking load is 6 times the W.L.L.
- Conforms to EN 13889 and meets the performance requirements of US Fed Spec RC-C-271 Type IVA class 2, Grade A.
- Hot dipped galvanised.
- Temperature range -40 ° C upto +200 ° C.
- Supplied with proof load certificate, material certificate available on request.
Deminsions and Specifications
W.L.L (tonnes) | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) | g (mm) | h (mm) | Weight (kg) |
0.33 | 5 | 6 | 12.5 | 5 | 9.5 | 19 | 38 | 31 | 0.02 |
0.5 | 7 | 8 | 17 | 7 | 12 | 22 | 47 | 40 | 0.05 |
0.75 | 9 | 10 | 21 | 9 | 13.5 | 26 | 56 | 49 | 0.09 |
1 | 10 | 11 | 23 | 10 | 17 | 32 | 66 | 56 | 0.14 |
1.5 | 11 | 13 | 26 | 11 | 19 | 37 | 74 | 68 | 0.19 |
2 | 13.5 | 16 | 34 | 13.5 | 22 | 43 | 85 | 76 | 0.32 |
3.25 | 16 | 19 | 40 | 16 | 27 | 51 | 105 | 93 | 0.54 |
4.75 | 19 | 22 | 47 | 19 | 31 | 59 | 125 | 107 | 0.87 |
6.5 | 22 | 25 | 53 | 22 | 36 | 73 | 144 | 123 | 1.34 |
8.5 | 25 | 28 | 60 | 25 | 43 | 85 | 161 | 141 | 2.08 |
9.5 | 28 | 32 | 67 | 28 | 47 | 90 | 179 | 158 | 2.77 |
12 | 32 | 35 | 74 | 32 | 51 | 94 | 199 | 176 | 3.72 |
13.5 | 35 | 38 | 80 | 35 | 57 | 115 | 220 | 192 | 5.14 |
17 | 38 | 42 | 89 | 38 | 60 | 127 | 239 | 208 | 6.85 |
25 | 45 | 50 | 104 | 45 | 74 | 149 | 283 | 250 | 11.45 |
35 | 50 | 57 | 111 | 50 | 83 | 171 | 333 | 281 | 16.86 |
42.5 | 57 | 65 | 134 | 57 | 95 | 190 | 360 | 321 | 24.61 |
55 | 65 | 70 | 145 | 65 | 105 | 203 | 399 | 355 | 32.65 |
