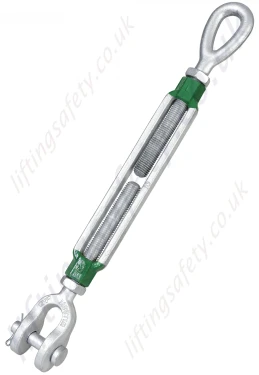

Green Pin G-6315 Eye & Jaw Turnbuckles, WLL Range from 0.54 to 34.0 Tonne

Turnbuckles are used for rigging or tensioning wires, ropes, rods etc. They are designed for in-line rigging, tensioning or lashing. Green Pin® Turnbuckles (G-6313, G-6323, G-6333, G-6311, G-6312, G-6315 and G-6314) can be used in lifting applications.

Green Pin turnbuckles are available with the following end fittings: eye/eye, hook/hook, hook/eye, jaw/jaw and jaw/eye. All fittings are interchangeable. Locking nuts are supplied with all sizes.

Features

• Material: drop forged high tensile steel SAE 1035 or 1045
• Safety factor: MBL equals 5 x WLL
• Standard: generally to ASTM F1145-92 formerly U.S. Federal Specification FF-T-791b
• Finish: hot dipped galvanized
• Temperature range: -20°C up to +200°C
• Certification: 2.1, 2.2, 3.1, MTCa & CE

Markings

All Green Pin turnbuckles are generally marked with:

• Working Load Limit - e.g. 2.36 t
• Manufacturer’s symbol - e.g. GP
• Thread diameter - e.g. 3/4"
• Traceability code - e.g. A1
• Thread - L (lefthanded) and R (righthanded)

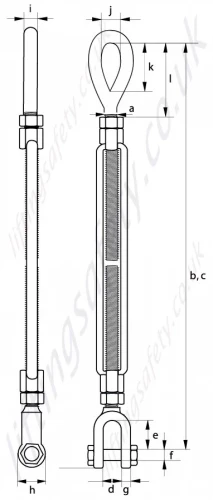

Dimensions & Specifications

WLL t	Thread Dia. (a) - inch	Take up - inch	Length Closed (b) - mm	Length Open (c) - mm	Jaw Opening (d) - mm	Jaw Inside Length (e) - mm	Jaw Pin Dia. (f) - mm	Eye Jaw Thickness (g) - mm	Eye Jaw Dia. (h) - mm	Eye Dia. (i) - mm	Width inside eye (j) - mm	Length inside eye (k) - mm	Length Closed (l) - mm	Weight (kg)
0.54	3/8	6	283	418	12	21	8	9	21	10	13	29	49	0.52
1	1/2	6	315	446	16	26	10	11	25	12	18	36	58	0.88
1	1/2	9	390	598	16	26	10	11	25	12	18	36	57	1.13
1	1/2	12	466	751	16	26	10	11	25	12	18	36	57	1.37
1.59	5/8	6	363	486	18	32	13	14	33	14	21	45	79	1.55
1.59	5/8	9	438	639	18	32	13	14	33	14	21	45	78	1.84
1.59	5/8	12	514	790	18	32	13	14	33	14	21	45	78	2.17
2.36	3/4	6	391	510	24	38	16	16	41	17	26	54	89	2.28
2.36	3/4	9	467	663	24	38	16	16	41	17	26	54	89	2.82
2.36	3/4	12	542	815	24	38	16	16	41	17	26	54	88	2.95
2.36	3/4	18	694	1120	24	38	16	16	41	17	26	54	89	3.3
3.27	7/8	12	583	848	27	42	19	19	48	20	32	61	101	4.35
3.27	7/8	18	735	1153	27	42	19	19	48	20	32	61	101	5.46
4.54	1	6	473	579	31	50	22	20	54	24	37	76	118	4.66
4.54	1	12	624	884	31	50	22	20	54	24	37	76	117	5.94
4.54	1	18	776	1190	31	50	22	20	54	24	37	76	117	7.98
4.5	1	24	928	1494	31	50	22	20	54	24	37	76	116	8.35
6.9	1 1/4	12	677	950	44	71	29	26	68	29	47	91	145	10.4
6.9	1 1/4	18	833	1258	44	71	29	26	68	29	47	91	144	11
6.9	1 1/4	24	989	1566	44	71	29	26	68	29	47	91	144	12.9
9.71	1 1/2	12	716	983	52	71	35	28	80	32	55	106	156	13.1
9.71	1 1/2	18	871	1290	52	71	35	28	80	32	55	106	160	14.7
9.71	1 1/2	24	1023	1594	52	71	35	28	80	32	55	106	158	17.8
12.7	1 3/4	18	979	1356	60	86	41	33	90	38	61	120	197	22.3
12.7	1 3/4	24	1130	1662	60	86	41	33	90	38	61	120	196	27.5
16.8	2	24	1208	1728	63	93	51	40	107	46	69	147	230	42.9
27.2	2 1/2	24	1343	1899	75	114	57	41	143	51	80	165	274	68
34	2 3/4	24	1399	1953	90	110	70	41	158	57	84	178	284	91
