Green Pin G-4163 Standard Bolt Type Bow Shackle, Range from 500kg to 85 tonne

Green Pin G-4163 Standard Bolt Type Bow Shackle, Range from 500kg to 85 tonne

Grade 6, Galvanised Safety Pin Bolt Type Anchor Shackle.

Model:

G4163 / GPBT-4552

Green Pin G-4163 Standard Bolt Type Bow Shackle, Range from 500kg to 85 tonne

  • Grade 6 high tensile steel, quenched and tempered.
  • Minimum breaking load is 6 times the W.L.L.
  • Conforms to EN 13889 and meets the performance requirements of US Fed Spec RC-C-271 Type IVA class 2, Grade A.
  • Hot dipped galvanised.
  • Temperature range -40 ° C upto +200 ° C.
  • Supplied with proof load certificate, material certificate available on request.
  • DNV Type Approved product (see product support for the latest certificate).

Dimensions and Specifications

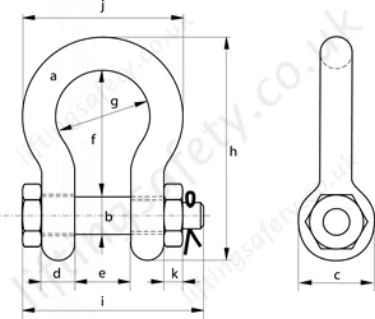

W.L.L (tonnes) a (mm) b (mm) c (mm) d (mm) e (mm) f (mm) g (mm) h (mm) i (mm) j (mm) k (mm) Weight (Kg)
0.5 7 8 17 7 12 29 20 54 43 37 4 0.06
0.75 9 10 21 9 13.5 32 22 61 51 42 5 0.11
1 10 11 23 10 17 36.5 26 71 61 49 8 0.16
1.5 11 13 26 11 19 43 29 80 68 54 11 0.22
2 13.5 16 34 13.5 22 51 32 91 83 63 13 0.42
3.25 16 19 40 16 27 64 43 114 99 79 17 0.74
4.75 19 22 47 19 31 76 51 136 115 94 20 1.18
6.5 22 25 53 22 36 83 58 157 131 107 23 1.77
8.5 25 28 60 25 43 95 68 176 151 124 25 2.58
9.5 28 32 67 28 47 108 75 197 167 137 28 3.66
12 32 35 74 32 51 115 83 218 179 154 31 4.91
13.5 35 38 80 35 57 133 92 240 198 170 34 6.54
17 38 42 89 38 60 146 99 262 202 183 19 8.19
25 45 50 104 45 74 178 126 314 244 226 24 14.22
35 50 57 111 50 83 197 138 358 270 250 27 19.85
42.5 57 65 134 57 95 222 160 414 302 287 30 28.33
55 65 70 145 65 105 260 180 463 330 329 33 39.59
85 75 83 163 75 127 329 190 556 376 355 40 62
Dimensions
Part N° Type W.L.L (tonnes) Pin Dia. (mm) Jaw Width (mm) Weight (Kg) Guide Price Quantity
4552-T23176 G4163 0.5t 0.5 8 12 0.06 £ 4.73
4552-T23177 G4163 0.75t 0.75 10 13.5 0.11 £ 5.37
4552-T23178 G4163 1t 1 11 17 0.16 £ 6.60
4552-T23179 G4163 1.5t 1.5 13 19 0.22 £ 7.57
4552-T23180 G4163 2t 2 16 22 0.42 £ 8.46
4552-T23181 G4163 3.25t 3.25 19 27 0.74 £ 13.02
4552-T23182 G4163 4.75t 4.75 22 31 1.18 £ 16.13
4552-T23183 G4163 6.5t 6.5 25 36 1.77 £ 23.76
4552-T23184 G4163 8.5t 8.5 28 43 2.58 £ 34.03
4552-T23185 G4163 9.5t 9.5 32 47 3.66 £ 47.02
4552-T23186 G4163 12t 12 35 51 4.91 £ 62.60
4552-T23187 G4163 13.5t 13.5 38 57 6.54 £ 83.59
4552-T23188 G4163 17t 17 42 60 8.19 £ 105.18
4552-T23189 G4163 25t 25 50 74 14.22 £ 171.96
4552-T23190 G4163 35t 35 57 83 19.85 £ 217.78
4552-T23191 G4163 42.5t 42.5 65 95 28.33 £ 400.60
4552-T23192 G4163 55t 55 70 105 39.59 £ 468.12
4552-T23193 G4163 85t 85 83 127 62 £ 728.71
Add To Quote Request   ?
  • Grade 6 high tensile steel, quenched and tempered.
  • Minimum breaking load is 6 times the W.L.L.
  • Conforms to EN 13889 and meets the performance requirements of US Fed Spec RC-C-271 Type IVA class 2, Grade A.
  • Hot dipped galvanised.
  • Temperature range -40 ° C upto +200 ° C.
  • Supplied with proof load certificate, material certificate available on request.
  • DNV Type Approved product (see product support for the latest certificate).

Dimensions and Specifications

W.L.L (tonnes) a (mm) b (mm) c (mm) d (mm) e (mm) f (mm) g (mm) h (mm) i (mm) j (mm) k (mm) Weight (Kg)
0.5 7 8 17 7 12 29 20 54 43 37 4 0.06
0.75 9 10 21 9 13.5 32 22 61 51 42 5 0.11
1 10 11 23 10 17 36.5 26 71 61 49 8 0.16
1.5 11 13 26 11 19 43 29 80 68 54 11 0.22
2 13.5 16 34 13.5 22 51 32 91 83 63 13 0.42
3.25 16 19 40 16 27 64 43 114 99 79 17 0.74
4.75 19 22 47 19 31 76 51 136 115 94 20 1.18
6.5 22 25 53 22 36 83 58 157 131 107 23 1.77
8.5 25 28 60 25 43 95 68 176 151 124 25 2.58
9.5 28 32 67 28 47 108 75 197 167 137 28 3.66
12 32 35 74 32 51 115 83 218 179 154 31 4.91
13.5 35 38 80 35 57 133 92 240 198 170 34 6.54
17 38 42 89 38 60 146 99 262 202 183 19 8.19
25 45 50 104 45 74 178 126 314 244 226 24 14.22
35 50 57 111 50 83 197 138 358 270 250 27 19.85
42.5 57 65 134 57 95 222 160 414 302 287 30 28.33
55 65 70 145 65 105 260 180 463 330 329 33 39.59
85 75 83 163 75 127 329 190 556 376 355 40 62
Dimensions
Part N° Type W.L.L (tonnes) Pin Dia. (mm) Jaw Width (mm) Weight (Kg) Guide Price Quantity
4552-T23176 G4163 0.5t 0.5 8 12 0.06 £ 4.73
4552-T23177 G4163 0.75t 0.75 10 13.5 0.11 £ 5.37
4552-T23178 G4163 1t 1 11 17 0.16 £ 6.60
4552-T23179 G4163 1.5t 1.5 13 19 0.22 £ 7.57
4552-T23180 G4163 2t 2 16 22 0.42 £ 8.46
4552-T23181 G4163 3.25t 3.25 19 27 0.74 £ 13.02
4552-T23182 G4163 4.75t 4.75 22 31 1.18 £ 16.13
4552-T23183 G4163 6.5t 6.5 25 36 1.77 £ 23.76
4552-T23184 G4163 8.5t 8.5 28 43 2.58 £ 34.03
4552-T23185 G4163 9.5t 9.5 32 47 3.66 £ 47.02
4552-T23186 G4163 12t 12 35 51 4.91 £ 62.60
4552-T23187 G4163 13.5t 13.5 38 57 6.54 £ 83.59
4552-T23188 G4163 17t 17 42 60 8.19 £ 105.18
4552-T23189 G4163 25t 25 50 74 14.22 £ 171.96
4552-T23190 G4163 35t 35 57 83 19.85 £ 217.78
4552-T23191 G4163 42.5t 42.5 65 95 28.33 £ 400.60
4552-T23192 G4163 55t 55 70 105 39.59 £ 468.12
4552-T23193 G4163 85t 85 83 127 62 £ 728.71
Add To Quote Request   ?
