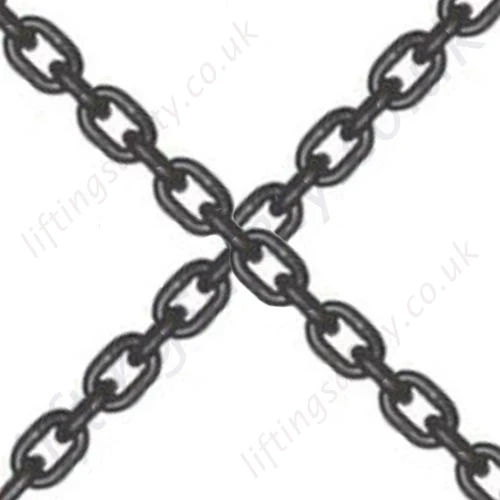

Grade 10 / 100 Lifting Chain - Chain Diameter 6mm to 32mm, WLL 1400kg to 40,000kg

Grade 10 / 100 blue coloured, alloy steel lifting chain specifically designed for chain slings.

Model:

G1LC-3332


Our Grade 100 Alloy Steel Chain is manufactured specifically for use in chain slings for lifting purposes.

The chain is heat treated for tensile strength and resistance to wear whilst also allowing for shock absorption. The chain is easily identifiable with Scaw logo, chain batch number and Gr100 embossed at meter intervals. Operating temperature range -40°C to +200°C.

Dimensions & Specifications

A B (mm) C (mm) WLL Weight per metre (kg) Metres per Drum
6mm 18 25.9 1.4t (1400kg) 0.8 500
8mm 24 29.6 2.5t (2500kg) 1.5 350
10mm 30 37.0 4t (4000kg) 2.2 250
13mm 39 48.1 6.7t (67000kg) 3.8 150
16mm 48 59.2 10t (10000kg) 5.8 100
20mm 60 74.0 16t (16000kg) 9.1 60
22mm 66 81.4 19t (19000kg) 11.0 50
26mm 78 96.2 26.5t (26,500kg) 16.12 30
32mm 96 118.0 40t (40,000kg) 24.8 25

Dimensional Drawing

Our Grade 100 Alloy Steel Chain is manufactured specifically for use in chain slings for lifting purposes.

The chain is heat treated for tensile strength and resistance to wear whilst also allowing for shock absorption. The chain is easily identifiable with Scaw logo, chain batch number and Gr100 embossed at meter intervals. Operating temperature range -40°C to +200°C.

Dimensions & Specifications

A B (mm) C (mm) WLL Weight per metre (kg) Metres per Drum
6mm 18 25.9 1.4t (1400kg) 0.8 500
8mm 24 29.6 2.5t (2500kg) 1.5 350
10mm 30 37.0 4t (4000kg) 2.2 250
13mm 39 48.1 6.7t (67000kg) 3.8 150
16mm 48 59.2 10t (10000kg) 5.8 100
20mm 60 74.0 16t (16000kg) 9.1 60
22mm 66 81.4 19t (19000kg) 11.0 50
26mm 78 96.2 26.5t (26,500kg) 16.12 30
32mm 96 118.0 40t (40,000kg) 24.8 25

Dimensional Drawing

Pricing

Chain Diameter / WLL
Chain Length (m)(e.g. 5) ?
@ £6.36 (min:1,max:500) (1 included in price)
Quantity
Unit Price

£6.36



Contact Us About This Product
