- Crosby 'AS6' Eye and Hook Angular Swivel, WLL Range from 400kg to 31,500kg
Crosby 'AS6' Eye and Hook Angular Swivel, WLL Range from 400kg to 31,500kg

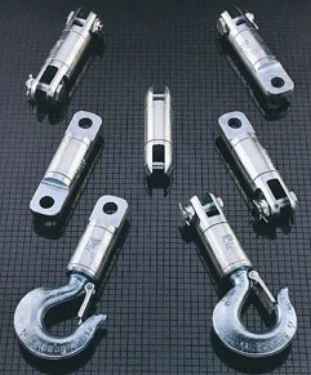

Crosby Eye and Hook Angular Contact Bearing Swivel.
Model:
Crosby AS-6 / EHAS-2497
With the Crosby AS6 Eye / Hook option of the Angular Contact Bearing Swivel we offer a wide range of options (size and SWL) WLL available from 450kg to 35 tonne. Wire Rope Sizes: 1/8" through 1-1/2"
- Angular contact bearings maximize efficiency, reliability and service life of swivel and extend the life of the wire rope.
- Designed for high rotation speed: Lower torque required to initiate rotation.
- Individually Proof Tested to 2 times the Working Load Limit with certification.
- Hook models utilize genuine Crosby hooks which are forged alloy steel, Quenched and Tempered and contain the patented QUIC-CHECK markings.
- Design Factor of 5 to 1.
- Entire swivel is Zinc plated to resist corrosion.
- Each swivel, 8.5 tons and larger is furnished with a pressure lubrication fitting.

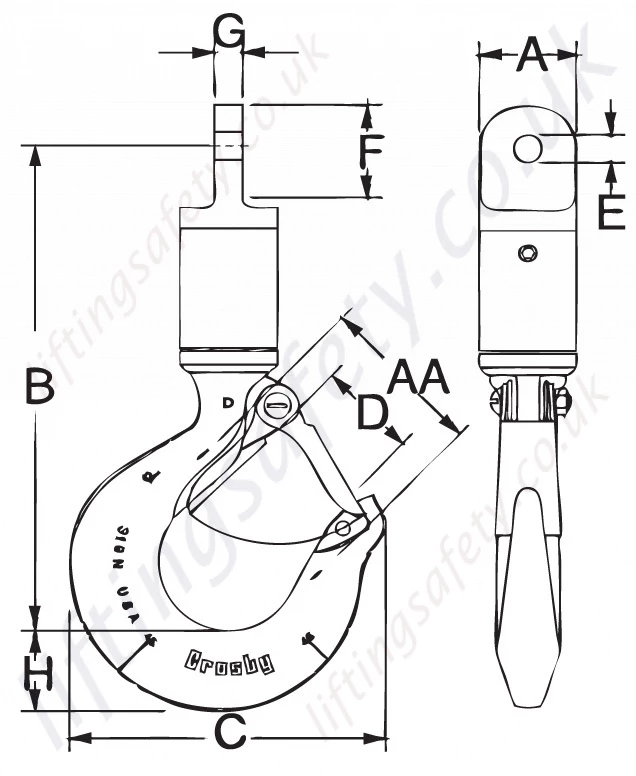

Metric Dimensions & Specifications
| Working Load Limit (t)* | Wire Rope Size (mm) | AS-6 Stock No. | Weight (kg) | A | B | C | D | E | F | G | H | Deformation Indicator (AA) | Replacement Latch Kit Stock No. |
| 0.40 | 3 | 1016502 | 0.32 | 22.4 | 111 | 72.5 | 23.6 | 6.35 | 20.6 | 6.35 | 18.5 | 38.1 | 1096325 |
| 0.68 | 6 | 1016513 | 0.68 | 33.3 | 141 | 80.0 | 24.6 | 9.65 | 22.4 | 7.85 | 21.3 | 38.1 | 1096374 |
| 1.35 | 10 | 1016520 | 1.32 | 41.4 | 158 | 102 | 29.5 | 16.8 | 34.0 | 12.7 | 29.0 | 51.0 | 1096374 |
| 2.70 | 13 | 1016529 | 2.81 | 51.0 | 219 | 123 | 35.8 | 23.1 | 51.0 | 19.1 | 36.6 | 63.5 | 1096374 |
| 4.50 | 16 | 1016538 | 5.62 | 63.5 | 274 | 160 | 42.9 | 31.8 | 67.0 | 25.4 | 46.2 | 76.0 | 1096562 |
| 7.65 | 19 | 1016547 | 10.7 | 76.0 | 343 | 212 | 61.0 | 35.6 | 79.5 | 31.8 | 66.0 | 102 | 1096657 |
| 9.00 | 22 | 1016556 | 23.6 | 102 | 459 | 263 | 81.0 | 42.2 | 119 | 43.7 | 76.0 | 127 | 1096704 |
| 13.5 | 25 | 1016565 | 24.0 | 102 | 448 | 263 | 81.0 | 51.5 | 119 | 51.0 | 76.0 | 127 | 1096704 |
| 22.5 | 32 | 1016574 | 42.6 | 127 | 530 | 346 | 82.5 | 59.0 | 133 | 57.0 | 92.0 | 165 | 1090161 |
| 31.5 | 38 | 1016583 | 62.6 | 127 | 610 | 357 | 76.0 | 59.0 | 133 | 57.0 | 116 | 178 | 1090189 |
*Ultimate Load is 5 times the Working Load Limit. Individually Proof Tested to 2 times the Working Load Limit.
Product Options
AS-20 thimble Insert
- When terminating with wire rope clips, we recommend the use of the thimble Insert. The result will be extended wire rope life.
- Allows standard swivel to be used in application requiring a thimble fitting.
- For use with our Bullet Style (AS-7) and Jaw Style (AS-1, AS-2, AS-3 & AS-4) swivels.
- Machined from carbon steel. Zinc plated.
| METRIC Rope Size (mm.) |
AS-20 Stock No. |
| 13 | 1038200 |
| 16 | 1038209 |
| 19 | 1038218 |
| 22-25 | 1038227 |
| 28-32 | 1038236 |
| 38 | 1038245 |
| IMPERIAL Rope Size (in.) |
AS-20 Stock No. |
| 1/2 | 1038200 |
| 5/8 | 1038209 |
| 3/4 | 1038218 |
| 7/8 - 1 | 1038227 |
| 1-1/8 - 1-1/4 | 1038236 |
| 1-1/2 | 1038245 |
