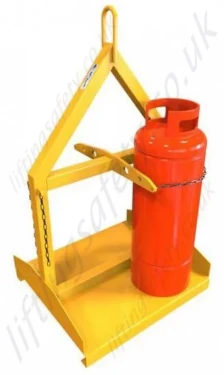

Crane Slung Cylinder Handler, Capacity 500kg

Crane Lift Gas Bottle Lifting Frame

Model:

CSCH-5199


The crane slung cylinder handler allows cylinders to be handled via a crane or overhead hook. The base is raised off the ground slightly to also allow for a forklift to lift, for positional purposes. Two retaining chains safely secure the gas bottles in place when in use.

  • This crane slung gas bottle handler is designed to suit a range of different gas bottle diameters and can carry up to four gas bottles at one time.
  • The unit has 4 segments for the gas bottles to sit in, each of which is 345mm x 396mm. This enables you to carry any bottle or cylinder up to this size safely and securely
  • Large central lifting eye suitable for attachment to most sized overhead hooks
  • Secure fitment of gas bottles via chain retention to allow gas bottles to be safely handled with no need for manual handling
  • Raised base to facilitate being handled by forklift truck forks for positioning purposes only (NOT for lifting)
  • Few moving parts allows for low maintenance and servicing costs
  • Painted in safety yellow gloss finish to aid visibility
  • 'CE' marked and supplied with Certificate of Conformity for Health & Safety Regulations

Dimensions & Specifications

Capacity (kg) Max. No. of Cylinders Max. Fork Size (mm) Weight (kg)
 500 4 200 x 70 78

The crane slung cylinder handler allows cylinders to be handled via a crane or overhead hook. The base is raised off the ground slightly to also allow for a forklift to lift, for positional purposes. Two retaining chains safely secure the gas bottles in place when in use.

  • This crane slung gas bottle handler is designed to suit a range of different gas bottle diameters and can carry up to four gas bottles at one time.
  • The unit has 4 segments for the gas bottles to sit in, each of which is 345mm x 396mm. This enables you to carry any bottle or cylinder up to this size safely and securely
  • Large central lifting eye suitable for attachment to most sized overhead hooks
  • Secure fitment of gas bottles via chain retention to allow gas bottles to be safely handled with no need for manual handling
  • Raised base to facilitate being handled by forklift truck forks for positioning purposes only (NOT for lifting)
  • Few moving parts allows for low maintenance and servicing costs
  • Painted in safety yellow gloss finish to aid visibility
  • 'CE' marked and supplied with Certificate of Conformity for Health & Safety Regulations

Dimensions & Specifications

Capacity (kg) Max. No. of Cylinders Max. Fork Size (mm) Weight (kg)
 500 4 200 x 70 78
