Crosby A341 Alloy Pear Shaped Links - Range from 3150kg to 169,000kg

Crosby A341 Alloy Pear Shaped Links - Range from 3150kg to 169,000kg

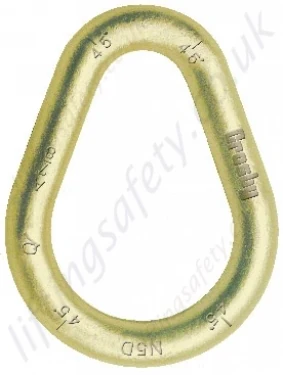

Crosby Alloy Pear Shaped Links.

Model:

Crosby A-341 / APSL-2425

Alloy Steel - Quenched and Tempered.
Individually Proof Tested at 2 times Working Load Limit with certification.
Proof Test certification shipped with each link.
Sizes 13mm, 16mm, 19mm, 22mm, 25mm, 32mm and 35mm are forged.

Metric Dimensions & Specifications

Size (A) (mm)	Size (A) (In.)	A-341 Stock No.	Working Load Limit		Weight Each (kg)	Dimensions (mm)
Size (A) (mm)	Size (A) (In.)	A-341 Stock No.	(t)*	(lbs.)	Weight Each (kg)	B	C	F
13	1/2	1013575	3.15	7000	.25	76.2	50.8	25.4
16	5/8	1013584	4.09	9000	.50	95.3	63.5	31.8
19	3/4	1013595	5.59	12300	.80	114	76.2	38.1
22	7/8	1013604	6.81	15000	1.28	133	88.9	44.5
25	1	1013613	11.0	24360	1.91	152	102	51.0
28	1-1/8	1013622	13.9	30600	2.83	171	114	57.0
32	1-1/4	1013631	16.4	36000	3.74	191	127	63.5
35	1-3/8	1013640	19.5	43000	5.10	210	140	70.0
†† 38	1-1/2	1013649	24.7	54300	6.46	229	152	76.0
†† 42	1-5/8	1013658	28.4	62600	8.39	248	165	82.5
†† 44	1-3/4	1013667	38.6	84900	10.2	267	178	89.0
†† 48	1-7/8	1013676	43.5	95800	13.2	286	191	95.5
†† 51	2	1013685	46.6	102600	15.4	305	203	102
†† 57	2-1/4	1013694	65.0	143100	21.8	343	229	114
†† 64	2-1/2	1013703	66.9	147300	29.9	381	254	127
†† 70	2-3/4	1013712	98.6	216900	39.9	419	279	140
†† 76	3	1013721	103	228000	52	457	305	152
†† 83	3-1/4	1013730	119	262200	66	495	330	165
†† 89	3-1/2	1013739	126	279000	82	533	356	178
†† 102	4	1013748	169	373000	123	610	406	203

*Based on single leg sling (in-line load), or resultant load on multiple legs with an included angle less than or equal to 120°. Minimum Ultimate load is 5 times the Working Load Limit.

†† Welded Link.

Crosby-catalogue-page-number-141.pdf

(approx. 0.1Mb)

Part N°	Size (mm)	Size (In.)	Weight Each (kg)	Guide Price
2425-T15836 1013575	13	1/2	0.25	£ 37.90
2425-T15837 1013584	16	5/8	0.50	£ 43.80
2425-T15838 1013595	19	3/4	0.80	£ 47.10
2425-T15839 1013604	22	7/8	1.28	£ 67.30
2425-T15840 1013613	25	1	1.91	£ 79.60
2425-T15841 1013622	†† 28	1-1/8	2.83	£ 132.00
2425-T15842 1013631	32	1-1/4	3.74	£ 194.00
2425-T15843 1013640	35	1-3/8	5.10	Quote Required
2425-T15844 1013649	†† 38	1-1/2	6.46	£ 296.00
2425-T15845 1013658	†† 42	1-5/8	8.39	£ 354.00
2425-T15846 1013667	†† 44	1-3/4	10.2	£ 454.00
2425-T15847 1013676	†† 48	1-7/8	13.2	£ 552.00
2425-T15848 1013685	†† 51	2	15.4	£ 600.00
2425-T15849 1013694	†† 57	2-1/4	21.8	£ 1193.00
2425-T15850 1013703	†† 64	2-1/2	29.9	£ 1562.00
2425-T15851 1013712	†† 70	2-3/4	39.9	£ 1826.00
2425-T15852 1013721	†† 76	3	52	Quote Required
2425-T15853 1013730	†† 83	3-1/4	66	£ 3397.00
2425-T15854 1013739	†† 89	3-1/2	82	£ 4589.00
2425-T15855 1013748	†† 102	4	123	£ 5659.00
Pricing Currency: Not available at the moment.			Add To Quote Request × More information about shopping on LiftingSafety Quotation Help Please choose the correct configuration of your desired product, then once complete - press on the 'Request Quote' button, this item will then be added to your basket (). To view your basket, simply click on the basket icon at the top of the page OK ?

Alloy Steel - Quenched and Tempered.
Individually Proof Tested at 2 times Working Load Limit with certification.
Proof Test certification shipped with each link.
Sizes 13mm, 16mm, 19mm, 22mm, 25mm, 32mm and 35mm are forged.

Metric Dimensions & Specifications

Size (A) (mm)	Size (A) (In.)	A-341 Stock No.	Working Load Limit		Weight Each (kg)	Dimensions (mm)
Size (A) (mm)	Size (A) (In.)	A-341 Stock No.	(t)*	(lbs.)	Weight Each (kg)	B	C	F
13	1/2	1013575	3.15	7000	.25	76.2	50.8	25.4
16	5/8	1013584	4.09	9000	.50	95.3	63.5	31.8
19	3/4	1013595	5.59	12300	.80	114	76.2	38.1
22	7/8	1013604	6.81	15000	1.28	133	88.9	44.5
25	1	1013613	11.0	24360	1.91	152	102	51.0
28	1-1/8	1013622	13.9	30600	2.83	171	114	57.0
32	1-1/4	1013631	16.4	36000	3.74	191	127	63.5
35	1-3/8	1013640	19.5	43000	5.10	210	140	70.0
†† 38	1-1/2	1013649	24.7	54300	6.46	229	152	76.0
†† 42	1-5/8	1013658	28.4	62600	8.39	248	165	82.5
†† 44	1-3/4	1013667	38.6	84900	10.2	267	178	89.0
†† 48	1-7/8	1013676	43.5	95800	13.2	286	191	95.5
†† 51	2	1013685	46.6	102600	15.4	305	203	102
†† 57	2-1/4	1013694	65.0	143100	21.8	343	229	114
†† 64	2-1/2	1013703	66.9	147300	29.9	381	254	127
†† 70	2-3/4	1013712	98.6	216900	39.9	419	279	140
†† 76	3	1013721	103	228000	52	457	305	152
†† 83	3-1/4	1013730	119	262200	66	495	330	165
†† 89	3-1/2	1013739	126	279000	82	533	356	178
†† 102	4	1013748	169	373000	123	610	406	203

*Based on single leg sling (in-line load), or resultant load on multiple legs with an included angle less than or equal to 120°. Minimum Ultimate load is 5 times the Working Load Limit.

†† Welded Link.

Crosby-catalogue-page-number-141.pdf

(approx. 0.1Mb)

Part N°	Size (mm)	Size (In.)	Weight Each (kg)	Guide Price
2425-T15836 1013575	13	1/2	0.25	£ 37.90
2425-T15837 1013584	16	5/8	0.50	£ 43.80
2425-T15838 1013595	19	3/4	0.80	£ 47.10
2425-T15839 1013604	22	7/8	1.28	£ 67.30
2425-T15840 1013613	25	1	1.91	£ 79.60
2425-T15841 1013622	†† 28	1-1/8	2.83	£ 132.00
2425-T15842 1013631	32	1-1/4	3.74	£ 194.00
2425-T15843 1013640	35	1-3/8	5.10	Quote Required
2425-T15844 1013649	†† 38	1-1/2	6.46	£ 296.00
2425-T15845 1013658	†† 42	1-5/8	8.39	£ 354.00
2425-T15846 1013667	†† 44	1-3/4	10.2	£ 454.00
2425-T15847 1013676	†† 48	1-7/8	13.2	£ 552.00
2425-T15848 1013685	†† 51	2	15.4	£ 600.00
2425-T15849 1013694	†† 57	2-1/4	21.8	£ 1193.00
2425-T15850 1013703	†† 64	2-1/2	29.9	£ 1562.00
2425-T15851 1013712	†† 70	2-3/4	39.9	£ 1826.00
2425-T15852 1013721	†† 76	3	52	Quote Required
2425-T15853 1013730	†† 83	3-1/4	66	£ 3397.00
2425-T15854 1013739	†† 89	3-1/2	82	£ 4589.00
2425-T15855 1013748	†† 102	4	123	£ 5659.00
Pricing Currency: Not available at the moment.			Add To Quote Request × More information about shopping on LiftingSafety Quotation Help Please choose the correct configuration of your desired product, then once complete - press on the 'Request Quote' button, this item will then be added to your basket (). To view your basket, simply click on the basket icon at the top of the page OK ?
