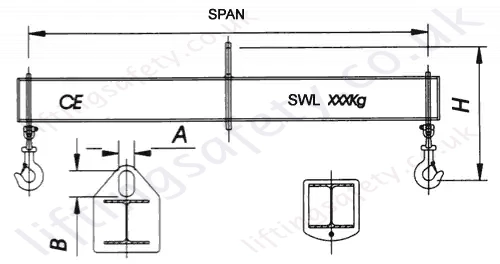

Lifting beam design is for illustration purposes only. Drawing for approval will be issued with your order.
Please note: The lifting beams listed below are examples only. All Lifting beams are made to order and therefore the design and lifting capacity can be modified to suit your individual requirements.
Options
Span (metre)
SWL
A x B
Heights and weights (mm) and (kg)
1
2
3
4
5
6
1 Tonne
60x90
Approximate Height (H) mm
371
399
408
446
465
465
Approximate Weight kg
27
51
84
153
223
317
2 Tonne
70x100
Approximate Height (H) mm
414
451
491
508
548
568
Approximate Weight kg
30
64
121
186
330
433
3 Tonne
80x110
Approximate Height (H) mm
476
532
570
610
630
650
Approximate Weight kg
33
87
154
275
373
495
5 Tonnes
90x140
Approximate Height (H) mm
574
631
670
710
750
770
Approximate Weight kg
46
113
194
320
502
649
8 Tonnes
100x160
Approximate Height (H) mm
668
725
785
825
845
885
Approximate Weight kg
80
143
282
435
577
770
10 Tonnes
110x170
Approximate Height (H) mm
746
804
844
884
944
984
Approximate Weight kg
110
186
302
462
685
886
All the lifting beams are designed according to each and every individual customer request / specification and are advertised for illustration purposes only. We will ensure that drawings for approval will be issued with receipt of your order.
Lifting and spreader beams are individually designed to customers requirement and for a wide variety of applications including customer specified safe working load and dimensions, painted or galvanised. for marine and offshore use with adjustable centre of gravity and with anti sparking (spark resistant) features. All lifting beams are supplied CE certified.
