- Tiger "TCB14" Manual Chain Hoist, Top Hook Suspended - Range from 500kg to 30 tonnes

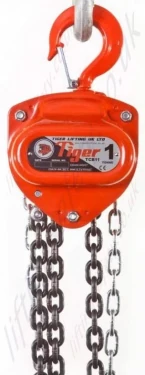

Tiger "TCB14" Manual Chain Hoist, Top Hook Suspended - Range from 500kg to 30 tonnes
TCB14 / TMCH-4673
This page has expired. This product has now been renamed as the Tiger "PROCB14" Manual Chain Hoist.
The TCB14 Tiger hand chain hoist which superseeds the TCB11 is manufactured from the highest quality steel materials, offering a lightweight, compact and rugged construction, producing an exceptionally strong product resistant to impact damage. The exceptional short head room allows for easy installation where every centimetre must be achieved. Using only the highest quality materials precisely machined in our own factory, the TCB is the ideal block for long term use with less maintenance and servicing costs. These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009, ANSI/ASME B30.16, AS1418.2 and SANS 1594.
Certification
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC. This document clearly states the proof test at 1.5 times the rated capacity and the light load test of 2% of the rated capacity, which exceeds the requirements of the current applicable standard.
Main Features
- Range from 500kg – 30000kg.
- DNV GL Verification tested according to NORSOK R-002.
- Rugged steel body construction.
- Drop forged & heat treated alloy hooks.
- Certified 2% light load protection.
- Proof tested to 1.5 times rated capacity.
- Suitable for underground mining use.
- Available with stainless steel load chain.
- Available with forged clevis adaptor components.
- Lightweight and portable.
- High quality alloy calibrated load chain.
- Heat treated alloy steel triple spur gears and pinion shaft.
- Can be chained to meet your exact requirements.
- Tested and certified for “fleeting” and “cross-hauling” applications up to 45°.
- Meets or exceeds all international standards.
- 8t, 15t and 30t capacity units available.
- Double cover protection for brake chamber.
- Patented Quad Cam pawl system.
- Operating temperature of -40°C to +50°C.
- Individual spares readily available.
- Overload protection available.
- Meets and exceeds all international standards.
- Can be supplied with Various Top and Bottom fitting to suit your needs, see the 'Adaptor Fittings' tab above for further information.
Dimensions and Specifications
Product Code | Capacity | Effort (kg) | Dimensions (mm) | Load Chain | Standard HOL (m) | Mass (kg) @ std HOL | Mass (kg) per extra metre HOL | ||||||
A | B | D | E | F1 | G | Diameter (mm) | No. of falls | ||||||
CB-0050 | 0.5 | 21 | 93 | 66 | 52 | 78 | 24 | 305 | 6.3 | 1 | 3 | 10.8 | 1.86 |
CB-0100 | 1.0 | 25 | 93 | 66 | 63 | 87 | 28 | 340 | 6.3 | 1 | 3 | 11.8 | 1.86 |
CB-0150 | 1.5 | 32 | 98 | 73 | 78 | 102 | 34 | 385 | 7.1 | 1 | 3 | 16.2 | 2.10 |
CB-0200 | 2.0 | 34 | 101 | 79 | 87 | 113 | 35 | 420 | 8.0 | 1 | 3 | 20.0 | 2.39 |
CB-020L | 2.0 | 42 | 98 | 73 | 78 | 103 | 35 | 399 | 7.1 | 1 | 3 | 16.7 | 2.10 |
CB-0300 | 3.0 | 38 | 109 | 84 | 98 | 157 | 36 | 550 | 10.0 | 1 | 3 | 30.6 | 3.17 |
CB-030T | 3.0 | 34 | 98 | 73 | 60 | 148 | 36 | 465 | 7.1 | 2 | 3 | 23.3 | 3.20 |
CB-0500 | 5.0 | 37 | 101 | 79 | 122 | 209 | 49 | 575 | 8.0 | 3 | 3 | 37.8 | 5.17 |
CB-0800 | 8.0 | 37 | 101 | 79 | 140 | 238 | 51 | 745 | 8.0 | 4 | 3 | 64.0 | 6.56 |
CB-1000 | 10.0 | 40 | 109 | 84 | 153 | 263 | 54 | 660 | 10.0 | 3 | 3 | 64.0 | 7.54 |
CB-1500 | 15.0 | 41 | 110 | 84 | 225 | 378 | 59 | 840 | 10.0 | 5 | 3 | 128.5 | 11.85 |
CB-2000 | 20.0 | 43 | 161 | 90 | 148 | 360 | 81 | 1050 | 10.0 | 6 | 3 | 178.7 | 14.20 |
CB-200T | 20.0 | 43 | 161 | 161 | 383 | 383 | 81 | 1050 | 10.0 | 6 | 3 | 210.4 | 15.20 |
CB-3000 | 30.0 | 42 | 220 | 220 | 388 | 388 | 91 | 1200 | 10.0 | 10 | 3 | 306.9 | 23.80 |
Dimensional Drawings
0.5 tonne to 2.0 tonne | 3.0 tonne twin fall | 3.0 tonne single fall | 5.0 tonne |
8.0 tonne | 10 tonne | 15 tonne | 20 tonne single head |
20 tonne twin head | 30 tonne |
Hook Technical Data
Capacity (tonnes) | Collar Measurements (mm) | Hook Thickness at point shown in diagram (mm) | Hook throat Opening (mm) | "Ez Check" Measurement (mm) | ||
a | c | c | d | e | f | |
0.5 | 8 | 13.5 | 19 | 15 | 29 | 45 |
1.0 | 8 | 13.5 | 23 | 17 | 33 | 52 |
1.5 | 10 | 15.5 | 26 | 21 | 38 | 59 |
2.0 | 10 | 17.5 | 30 | 22 | 42 | 64 |
3.0 | 12.5 | 20 | 37 | 32 | 40 | 76 |
5.0 | 19 | 30 | 43 | 36 | 54 | 86 |
8.0 | 21.7 | 33 | 50 | 43 | 55 | 110 |
10.0 | 20 | 33 | 52 | 48 | 60 | 121 |
15.0 | - | 36 | 67 | 60 | 64 | 130 |
20.0 | - | 48 | 77 | 72 | 90 | 162 |
30.0 | - | 56 | 94 | 78 | 100 | 177 |
Traditional Tiger Hooks
Tiger Hooks with new "EZ Check" 3 point marking system
Newer models of the TCB are fitted with the patent pending Tiger “EZ check” 3 point marking system. With this system a quick check that the A and B measurements are the same (as shown in the diagram below) will indicate if the hooks have stretched If A≦B the hook is fine; If A>B the hook needs to be replaced:
Tiger Adaptor Hoists are available with a drop-forged clevis adaptor allowing for the interchangeable range of EN1677 Tiger grade 100 clevis fittings.
This Tiger manufactured knuckle configuration gives 360° Rotation and 180° Pivot for maximum flexibility, whilst maintaining our 4:1 factor of safety at all angles.
- Available for Tiger TCB14 / SS12 chain blocks and PROLH / SS11 / TLH lever hoists.
- All fittings meet the standards of EN1677 grade 100 at 400°C tempering.
- Drop forged adaptor for maximum strength certified 4:1 FOS at all angles.
- Self-locking (safety) hook, clevis shackle, reevable egg (master) link or sling hook fitting available.
- Overload protection available.
- For lifting at angles (cross hauling/fleeting/drifting) with no deration.
- Chain Blocks – 500kg – 10t capacity.
- Lever Hoists – 800kg – 10t capacity.
Adaptor Sling Hook
Safety Hooks
Reevable Egg Link
Hoist Clevis Shackle
Adaptor Rotation
This page has expired. This product has now been renamed as the Tiger "PROCB14" Manual Chain Hoist.
The TCB14 Tiger hand chain hoist which superseeds the TCB11 is manufactured from the highest quality steel materials, offering a lightweight, compact and rugged construction, producing an exceptionally strong product resistant to impact damage. The exceptional short head room allows for easy installation where every centimetre must be achieved. Using only the highest quality materials precisely machined in our own factory, the TCB is the ideal block for long term use with less maintenance and servicing costs. These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009, ANSI/ASME B30.16, AS1418.2 and SANS 1594.
Certification
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC. This document clearly states the proof test at 1.5 times the rated capacity and the light load test of 2% of the rated capacity, which exceeds the requirements of the current applicable standard.
Main Features
- Range from 500kg – 30000kg.
- DNV GL Verification tested according to NORSOK R-002.
- Rugged steel body construction.
- Drop forged & heat treated alloy hooks.
- Certified 2% light load protection.
- Proof tested to 1.5 times rated capacity.
- Suitable for underground mining use.
- Available with stainless steel load chain.
- Available with forged clevis adaptor components.
- Lightweight and portable.
- High quality alloy calibrated load chain.
- Heat treated alloy steel triple spur gears and pinion shaft.
- Can be chained to meet your exact requirements.
- Tested and certified for “fleeting” and “cross-hauling” applications up to 45°.
- Meets or exceeds all international standards.
- 8t, 15t and 30t capacity units available.
- Double cover protection for brake chamber.
- Patented Quad Cam pawl system.
- Operating temperature of -40°C to +50°C.
- Individual spares readily available.
- Overload protection available.
- Meets and exceeds all international standards.
- Can be supplied with Various Top and Bottom fitting to suit your needs, see the 'Adaptor Fittings' tab above for further information.
Dimensions and Specifications
Product Code | Capacity | Effort (kg) | Dimensions (mm) | Load Chain | Standard HOL (m) | Mass (kg) @ std HOL | Mass (kg) per extra metre HOL | ||||||
A | B | D | E | F1 | G | Diameter (mm) | No. of falls | ||||||
CB-0050 | 0.5 | 21 | 93 | 66 | 52 | 78 | 24 | 305 | 6.3 | 1 | 3 | 10.8 | 1.86 |
CB-0100 | 1.0 | 25 | 93 | 66 | 63 | 87 | 28 | 340 | 6.3 | 1 | 3 | 11.8 | 1.86 |
CB-0150 | 1.5 | 32 | 98 | 73 | 78 | 102 | 34 | 385 | 7.1 | 1 | 3 | 16.2 | 2.10 |
CB-0200 | 2.0 | 34 | 101 | 79 | 87 | 113 | 35 | 420 | 8.0 | 1 | 3 | 20.0 | 2.39 |
CB-020L | 2.0 | 42 | 98 | 73 | 78 | 103 | 35 | 399 | 7.1 | 1 | 3 | 16.7 | 2.10 |
CB-0300 | 3.0 | 38 | 109 | 84 | 98 | 157 | 36 | 550 | 10.0 | 1 | 3 | 30.6 | 3.17 |
CB-030T | 3.0 | 34 | 98 | 73 | 60 | 148 | 36 | 465 | 7.1 | 2 | 3 | 23.3 | 3.20 |
CB-0500 | 5.0 | 37 | 101 | 79 | 122 | 209 | 49 | 575 | 8.0 | 3 | 3 | 37.8 | 5.17 |
CB-0800 | 8.0 | 37 | 101 | 79 | 140 | 238 | 51 | 745 | 8.0 | 4 | 3 | 64.0 | 6.56 |
CB-1000 | 10.0 | 40 | 109 | 84 | 153 | 263 | 54 | 660 | 10.0 | 3 | 3 | 64.0 | 7.54 |
CB-1500 | 15.0 | 41 | 110 | 84 | 225 | 378 | 59 | 840 | 10.0 | 5 | 3 | 128.5 | 11.85 |
CB-2000 | 20.0 | 43 | 161 | 90 | 148 | 360 | 81 | 1050 | 10.0 | 6 | 3 | 178.7 | 14.20 |
CB-200T | 20.0 | 43 | 161 | 161 | 383 | 383 | 81 | 1050 | 10.0 | 6 | 3 | 210.4 | 15.20 |
CB-3000 | 30.0 | 42 | 220 | 220 | 388 | 388 | 91 | 1200 | 10.0 | 10 | 3 | 306.9 | 23.80 |
Dimensional Drawings
0.5 tonne to 2.0 tonne | 3.0 tonne twin fall | 3.0 tonne single fall | 5.0 tonne |
8.0 tonne | 10 tonne | 15 tonne | 20 tonne single head |
20 tonne twin head | 30 tonne |
Hook Technical Data
Capacity (tonnes) | Collar Measurements (mm) | Hook Thickness at point shown in diagram (mm) | Hook throat Opening (mm) | "Ez Check" Measurement (mm) | ||
a | c | c | d | e | f | |
0.5 | 8 | 13.5 | 19 | 15 | 29 | 45 |
1.0 | 8 | 13.5 | 23 | 17 | 33 | 52 |
1.5 | 10 | 15.5 | 26 | 21 | 38 | 59 |
2.0 | 10 | 17.5 | 30 | 22 | 42 | 64 |
3.0 | 12.5 | 20 | 37 | 32 | 40 | 76 |
5.0 | 19 | 30 | 43 | 36 | 54 | 86 |
8.0 | 21.7 | 33 | 50 | 43 | 55 | 110 |
10.0 | 20 | 33 | 52 | 48 | 60 | 121 |
15.0 | - | 36 | 67 | 60 | 64 | 130 |
20.0 | - | 48 | 77 | 72 | 90 | 162 |
30.0 | - | 56 | 94 | 78 | 100 | 177 |
Traditional Tiger Hooks
Tiger Hooks with new "EZ Check" 3 point marking system
Newer models of the TCB are fitted with the patent pending Tiger “EZ check” 3 point marking system. With this system a quick check that the A and B measurements are the same (as shown in the diagram below) will indicate if the hooks have stretched If A≦B the hook is fine; If A>B the hook needs to be replaced:
Tiger Adaptor Hoists are available with a drop-forged clevis adaptor allowing for the interchangeable range of EN1677 Tiger grade 100 clevis fittings.
This Tiger manufactured knuckle configuration gives 360° Rotation and 180° Pivot for maximum flexibility, whilst maintaining our 4:1 factor of safety at all angles.
- Available for Tiger TCB14 / SS12 chain blocks and PROLH / SS11 / TLH lever hoists.
- All fittings meet the standards of EN1677 grade 100 at 400°C tempering.
- Drop forged adaptor for maximum strength certified 4:1 FOS at all angles.
- Self-locking (safety) hook, clevis shackle, reevable egg (master) link or sling hook fitting available.
- Overload protection available.
- For lifting at angles (cross hauling/fleeting/drifting) with no deration.
- Chain Blocks – 500kg – 10t capacity.
- Lever Hoists – 800kg – 10t capacity.
Adaptor Sling Hook
Safety Hooks
Reevable Egg Link
Hoist Clevis Shackle
Adaptor Rotation
Pricing
Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
Contact Us About This Product
If you wish to receive a quote for this product, please use the 'Pricing' tab above, this form is for general enquiries regarding this product only.
You can also Request a Quote using the Buy/Quote tab above!
You can easily add more than one item to the Quote Request. This is highly recommend as we will be able to suit your needs much more efficiently.
Share this page!
Save this QR code
for use on Smart Phones
