Pfaff Silverline HWK KLS Workshop Cranes - 500kg or 1000kg SWL
HWK KLS / PS-3207






This page has expired. Unfortunately this product is no longer available. Contact us with your requirements for a possible suitable alternative.
When adaptability is required, the HWK KLS workshop crane is the master of versatility. In both versions for either 0,5 t or 1,0 tonnes lifting capacity, both with a parallel or V-shaped chassis, you have a device to cope with every conceivable workshop requirement.
The rotatable hydraulic system provides for absolute operating convenience even in confined spaces. Moreover, the pump raises the cantilever arm to a height of 2080 mm in overdrive with just 30 pump movements and it does all this with the utmost safety, thanks to the specially designed chassis and the parking wheel brake supplied as standard which hold the crane firmly in position.
Once the job has been completed the crane can be quickly and easily folded together and stored away again by just one person.
Features
- A hydraulic system that can rotate for use in confined spaces.
- Parking brake fitted as standard to secure the crane firmly in position.
- Cantilever arm can raise to 2080mm & can be extended to suit applications.
- Quickly and easily folded away by one person.

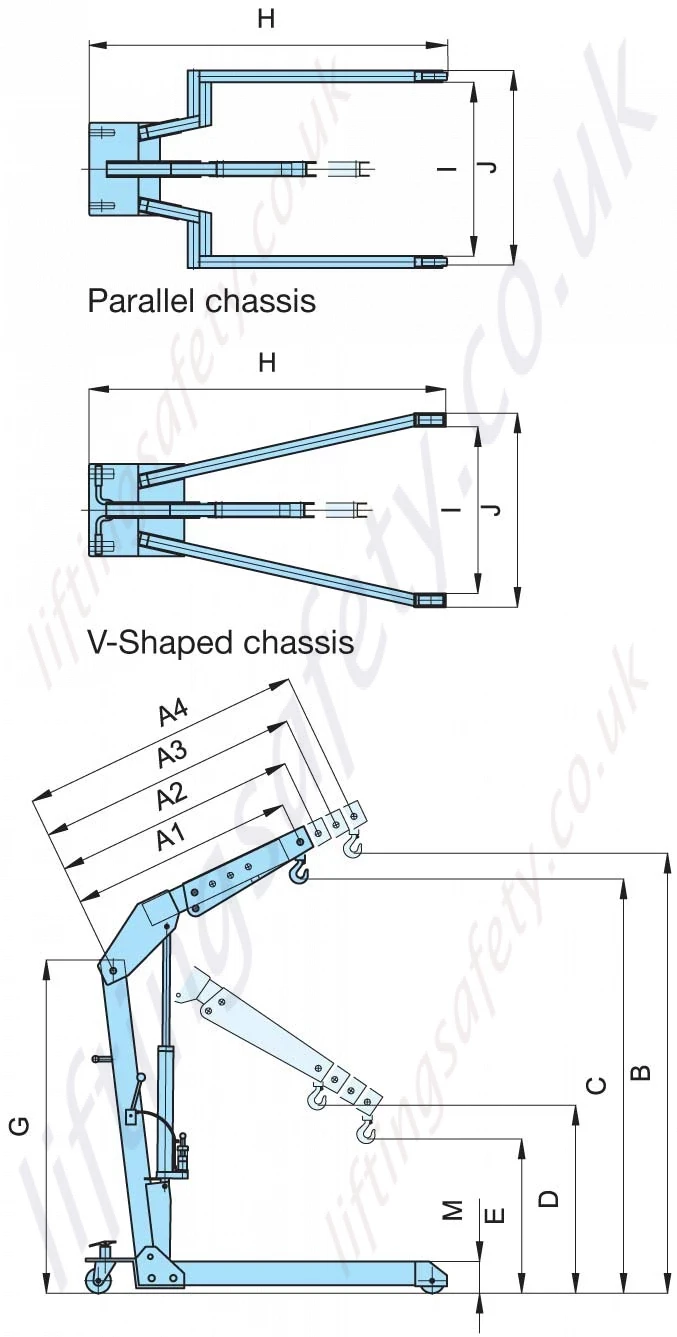

Dimensions & Specifications
Model | Dims | HWK KLS 0.5 | HWK KLS 0.5 | HWK KLS 1.0 | HWK KLS 1.0 | |
Chassis form | Parallel chassis | V Shaped | Parallel chassis | V Shaped | ||
Total cantilever arm length | mm | 1430 | 1430 | 1430 | 1430 | |
Admissible load for | A1 | kg/mm | 500/1130 | 500/1130 | 1000/1130 | 1000/1130 |
crane arm length | A2 | kg/mm | 400/1230 | 400/1230 | 800/1230 | 800/1230 |
Max. hook height with cantilever arm in/out | A3 | kg/mm | 350/1330 | 350/1330 | 700/1330 | 700/1330 |
Underclearance height | A4 | kg/mm | 250/1430 | 250/1430 | 500/1430 | 500/1430 |
Drive-through height with | B/C | mm | 2080/2200 | 2080/2200 | 2080/2200 | 2080/2200 |
cantilever arm lowered | F | mm | 160 | 160 | 160 | 160 |
Chassis length incl. wheels | G | mm | 1680 | 1680 | 1680 | 1680 |
Chassis width: | H | mm | 1820 | 1820 | 1820 | 1820 |
External/internal | I/J | mm | 990/850 | 990/850 | 990/850 | 990/850 |
Rear width | K | mm | 620 | 620 | 620 | 620 |
Hand power for nominal load | daN | 16 | 16 | 32 | 32 | |
Lift per pump movement (with load/without load) | mm | 90/30 | 90/30 | 90/30 | 90/30 | |
Unladen weight | kg | 150 | 150 | 150 | 150 |
