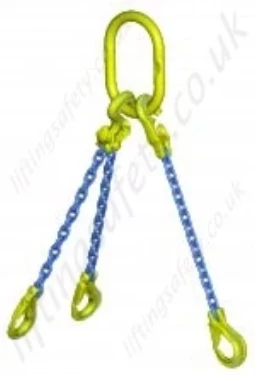

Gunnebo GrabiQ "TG3-EGKN Three Leg Chain Sling with "Master Link MF and EGKN Sling Hook" Range from 2.2t to 33.6t

Model:

TG3-EGKN / GGTL-4014


Description

+

This Page has now expired. Please view our complete range of Chain Slings Assemblies & Components or Contact us with your requirements for a possible suitable alternative.

Gunnebo TG3-EGKN ready made three leg chain slings with a unique master ring, coupler and sling safety hook.

Part no WLL α 0°-90° WLL α 90°-120° Master link Chain Coupling Hook Weight kgs/eff.length 2m Chain weight kg/m Comp.length mm
TG3-EGKN 6mm 3.1 2.2 MF-108-10 KLA-6-10 CGD/CG-6-10 EGKN-6-10 7.8 3.0 306
TG3-EGKN 8mm 5.2 3.7 MF-1310-10 KLA-8-10 CGD/CG-8-10 EGKN-8-10 13.0 5.1 357
TG3-EGKN 10mm 8.4 6.0 MF-1613-10 KLA-10-10 CGD/CG-10-10 EGKN-10-10 21.0 8.1 444
TG3-EGKN 13mm 14.0 10.0 MF-2016-10 KLA-13-10 CGD/CG-13-10 EGKN-13-10 36.6 13.2 559
TG3-EGKN 16mm 21.0 15.0 MF-2220-10 KLA-16-10 CGD/CG-16-10 EGKN-16-10 59.3 20.1 634
TG3-EGKN 20mm 33.6 24.0 MTC-20-10 KLA-20-10 G/GG-20-10 EGKN-20-10 134.0 28.2 665
Master Link MF Master Link MTC KLA Chain CGD Coupling CG Coupling G Coupling GG Coupling EGKN Sling Hook
Grabiq Mf Master Link
GrabiQ MTC
Gunnebo GrabiQ KLA Grade 10 Chain
C Grab Duo CGD GrabiQ
GrabiQ CG C Grab
Grabiq G
Grabiq GG
GrabiQ EGKN Sling Hook
Individual Components

+

Individual Components

Below you can find the individual specifications of the many different components that make up a GrabiQ TG3-EGKN Chain Sling.

MF Master Link

The top suspended master link.

Code WLL t
Grabiq Mf Master Link Dimensions
 For chain mm, 1-leg L E D Weight kgs
MF-6-10 1.25 6 100 60 11
MF-86-10 2.5 6, 8 125 70 14 0.43
MF-108-10 4 10 140 80 17 0.75
MF-1310-10 7.5 13 160 95 22 1.47
MF-1613-10 10 16 190 110 28 2.8
MF-2016-10 17 20 240 140 34 5.24
MF-2220-10 25 20 250 150 40 7

MTC Master Link

Code WLL t
GrabiQ MTC
 L1 L E D (l) b d Weight kgs
MTC-6-10 3.15 210 150 90 19 60 38 13 1.4
MTC-8-10 5.2 230 160 95 22 70 46 16 2.3
MTC-10-10 8.4 290 200 120 30 90 60 19 5
MTC-13-10 14.1 380 240 140 34 140 65 28 8.3

KLA Grade 10 Chain

  • Heat Treatment: Hardened and tempered.
  • Note! For chain grade 10 the maximum in service temperature is 200°C.
  • Surface treatment: Blue painted.
  • Marking: 10G.
Code WLL (t) Chain Ø (mm)
Gunnebo Grabiq Kla Grade 10 Chain Dimensions
 L (mm)
 E (mm)
 Weight (kg) MPF Breaking force (kN)
KLA-6-10 1.5 6 18 8 0.842 37 60
KLA-8-10 2.5 8 24 11 1.45 62.5 100
KLA-10-10 4 10 30 14 2.25 100 160
KLA-13-10 6.7 13 39 18 3.76 162 260
KLA-16-10 10 16 48 22 5.64 250 402
KLA-20-10 16 20 60 29 9.4 393 630

C-grab Duo CGD Coupling Hook

For use with Master Links, all GrabiQ C connectors can be equipped with quickpin.

Code WLL t
C Grab Duo Cgd Grabiq Dimensions
 L B E H Weight kgs
CGD-6-10 2.1 79 11 24 22 0.55
CGD-8-10 3.5 107 12 32 29 1.11
CGD-10-10 5.6 134 15 40 37 2.21
CGD-13-10 9.5 173 19 48 48 5.6
CGD-16-10 14 215 22 64 57 9.6

CG Coupling Hook

For use with master link, eye hooks and choke. All GrabiQ C-connectors can be equipped with QuickPin.
Code WLL t
Grabiq Cg C Grab Dimensions
 L B E H Weight kgs
CG-6-10 1.5 80 11 24 19 0.344
CG-8-10 2.5 107 12 32 24 0.734
CG-10-10 4 134 15 40 29 1.466
CG-13-10 6.7 172 18 52 38 3.15
CG-16-10 10 215 22 64 47 6.2

G Coupling Hook

Code WLL t
Grabiq G Dimensions
 L E F C Weight kgs
G-6-10 1.5 45 15 8 16 0.09
G-8-10 2.5 56 18 9 22 0.17
G-10-10 4 68 25 12 26 0.32
G-13-10 6.7 89 29 15 33 0.68
G-16-10 10 106 36 19 40 1.35
G-20-10 16 125 43 26 44 2.6

GG Coupling Hook

Code WLL t
Grabiq Gg Dimensions
 L B Weight kgs
GG-8-10 2.5 57 10.5 0.4
GG-10-10 4 76 12 0.88
GG-13-10 6.7 97 16 1.85
GG-16-10 10 124 20 3.1
GG-20-10 16 147 26 7

EGKN Sling Hook

Code WLL (t)
Grabiq Egkn Sling Hook Dimensions
 L (mm) B (mm) G (mm) H (mm) Weight (kg)
EGKN-6-10 1.5 86 24 17 20 0.34
EGKN-8-10 2.5 95 28 17 23 0.53
EGKN-10-10 4 121 35 23 31 1.02
EGKN-13-10 6.7 145 42 28 38 2.27
EGKN-16-10 10 170 52 36 46 3.8
EGKN-20-10 16 209 61 42 60 7.6
Pricing

+
Part N° Effective Working Length WLL α 0°-90° WLL α 90°-120° Master link Chain Coupling Hook Weight kgs/eff.length 2m Chain weight kg/m Comp.length mm Unit Price Quantity
4014-T8429
TG3-EGKN 6mm 		2m 3.1 2.2 MF-108-10 KLA-6-10 CGD/CG-6-10 EGKN-6-10 7.8 3.0 306 Quote Required
4014-T8430
TG3-EGKN 8mm 		2m 5.2 3.7 MF-1310-10 KLA-8-10 CGD/CG-8-10 EGKN-8-10 13.0 5.1 357 Quote Required
4014-T8431
TG3-EGKN 10mm 		2m 8.4 6.0 MF-1613-10 KLA-10-10 CGD/CG-10-10 EGKN-10-10 21.0 8.1 444 Quote Required
4014-T8432
TG3-EGKN 13mm 		2m 14.0 10.0 MF-2016-10 KLA-13-10 CGD/CG-13-10 EGKN-13-10 36.6 13.2 559 Quote Required
4014-T8433
TG3-EGKN 16mm 		2m 21.0 15.0 MF-2220-10 KLA-16-10 CGD/CG-16-10 EGKN-16-10 59.3 20.1 634 Quote Required
4014-T8434
TG3-EGKN 20mm 		2m 33.6 24.0 MTC-20-10 KLA-20-10 G/GG-20-10 EGKN-20-10 134.0 28.2 665 Quote Required
Add to Quote Basket   ?
