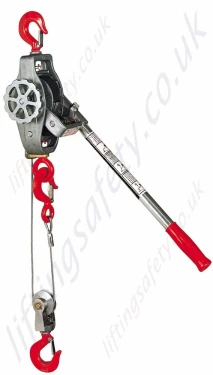

Yale "LM" Wire Rope Cable Puller - Range from 500kg to 1800kg (Not for lifting applications)
Yale LM / YLCP-191
This page has expired. Unfortunately this product is no longer available. Please view our full range of Cable Pullers / Hoists, Wire Rope Manual Operation or Contact us with your requirements for a possible suitable alternative.
A device for gripping, pulling and tensioning of unsheathed wire ropes, cables and metal rods, depending on the rope diameter and surface integrity, up to a tensile strength of 1770N/mm2.
Pulling force 2000 - 5000 daN
Technical data
| Model | Single fall | Double fall | Weight (kg) | Availability Note | ||
| Capacity SWL (kg) | Rope travel (metres) | Capacity SWL (kg) | Rope travel (metres) | |||
| 115D-V | 500 | 4.6 | 1000 | 2.3 | 4.5 | |
| 202WN-V | 500 | 6.0 | 1000 | 3.0 | 5.2 | Model No Loner Available |
| 434WN-V | 500 | 9.0 | 1000 | 4.5 | 5.8 | |
| S434WN-V | 700 | 6.0 | 1400 | 3.0 | 6.0 | |
| S40WN-V | 900 | 5.2 | 1800 | 2.6 | 5.9 | |
Yale LM Operating Manual
The operating instructions contain important information on how to handle the trolley in a safe, correct and economic way. Acting in accordance with these instructions helps to avoid dangers, reduce repair costs and down time and to increase the reliability and lifetime of the trolley. Anyone involved in doing any of the following work with the trolley must read the operation instructions and act accordingly.(approx. 0.3Mb)
Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
This page has expired. Unfortunately this product is no longer available. Please view our full range of Cable Pullers / Hoists, Wire Rope Manual Operation or Contact us with your requirements for a possible suitable alternative.
A device for gripping, pulling and tensioning of unsheathed wire ropes, cables and metal rods, depending on the rope diameter and surface integrity, up to a tensile strength of 1770N/mm2.
Pulling force 2000 - 5000 daN
Technical data
| Model | Single fall | Double fall | Weight (kg) | Availability Note | ||
| Capacity SWL (kg) | Rope travel (metres) | Capacity SWL (kg) | Rope travel (metres) | |||
| 115D-V | 500 | 4.6 | 1000 | 2.3 | 4.5 | |
| 202WN-V | 500 | 6.0 | 1000 | 3.0 | 5.2 | Model No Loner Available |
| 434WN-V | 500 | 9.0 | 1000 | 4.5 | 5.8 | |
| S434WN-V | 700 | 6.0 | 1400 | 3.0 | 6.0 | |
| S40WN-V | 900 | 5.2 | 1800 | 2.6 | 5.9 | |
Yale LM Operating Manual
The operating instructions contain important information on how to handle the trolley in a safe, correct and economic way. Acting in accordance with these instructions helps to avoid dangers, reduce repair costs and down time and to increase the reliability and lifetime of the trolley. Anyone involved in doing any of the following work with the trolley must read the operation instructions and act accordingly.(approx. 0.3Mb)
Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
