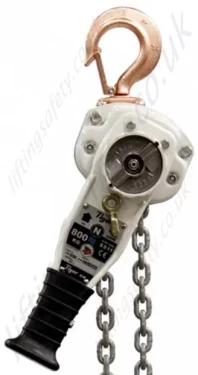

Tiger "SS11 XSS" Spark Resistant Lever Hoist - 800kg to 10 tonnes

Model:

XSS / TSRL-4497


Description

+

This page has expired. The Tiger SS11 XSS Subsea Lever Hoist is now obsolete and has been superseded by the Tiger Lifting "SS19" Subsea Lever Hoist.

In many areas of industry, plants are operated with potentially explosive atmospheres. Due to the very high risk to personal and other assets, extremely strict guidelines and technical requirements are in place in explosive zones. Tiger Spark Resistant products are manufactured in accordance with ATEX Directive 94/9/EC and the Machinery Directive 2006/42/EC. Our products are lightweight and durable with a proven track record. Atex marking: Ex II 2 GD c IIC IIIC T4. Suitable for gas and dust hazardous areas: Zone 1 & 2 (gas) and Zone 21 & 22 (dust).

A non-atex version of this unit is also available. See Tiger SS11 for more details.

Features

  • Category II – high safety - Certification: Ex II 2 GD c IIC T4 IIIC T135°C
  • Manufactured in accordance with ATEX Directive 94/9/EC and Machinery Directive 2006/42/EC
  • Developed for the use in potentially explosive atmospheres (ATEX zones).
  • Special coated units
  • Different capacities and heights of lift to suit your specific requirements

Specifications

  • Corrosion protected load chain
  • Special corrosion protected coated body
  • Marine specific friction discs
  • Brake chamber protection from outside contamination
  • Copper plated suspension and load hooks, load chain guides, grip rings, hand wheels and end anchorage
  • Stainless steel fixings and fasteners

Optional

  • Stainless steel load chain
  • Overload protection device

Atex Certification:

Under the ATEX Directive 94/9/EC, equipment for areas with an explosion hazard are assigned to groups, categories and temperature classes. Our products are assigned as follows:

Ex II 2 GD c IIC T4 IIIC T135°C

Certification Explained

II Equipment Group: surface industries
2 Category: High Safety
GD Ex Atmosphere: Gas and Dust
c Protection type: Design safety
IIC Gas Explosion Group: Protected for group IIC which includes groups IIA & IIB
T4 Gas Temperature Class: Maximum external surface temperature 135°C
IIIC Groups of Dust: Protected for group IIIC which includes groups IIIA & IIIB
T135°C Dust Temperature Class: Maximum external surface temperature 135°C
Technical Specifications

+

Specifications

Product Code Capacity (tonne) Effort (kg) Effort (kg) with ext’n handle Dimensions (mm) Load Chain Standard HOL (m) Mass Kg @ std HOL
A B C D E F F1 Diameter (mm) No. of falls
XSS-0080-015 0.8 23 - 128 240 275 158 99 30 26 Ø6.3 1 3.0 8.52
XSS-0150-015 1.5 26 - 154 360 320 172 104 38 34 Ø7.1 1 3.0 11.85
XSS-0300-015 3.0 38 22 182 360 400 195 108 43 38 Ø10.0 1 3.0 21.3
XSS-0600-015 6.0 40 23.5 242 360 570 195 108 57 52 Ø10.0 2 3.0 34.6
XSS-1000-015 10.0 47 27.5 370 360 630 195 108 71 56 Ø10.0 3 3.0 45.9

Dimensional Images

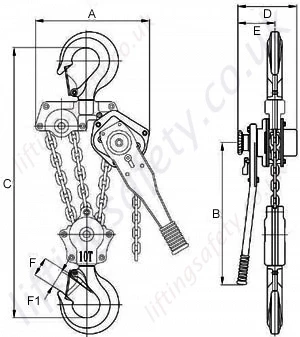

800kg to 3000kg Dimensions
6 tonne Dimensions
10 tonne Dimensions
800kg to 3000kg 6000kg 10000kg



This page has expired. The Tiger SS11 XSS Subsea Lever Hoist is now obsolete and has been superseded by the Tiger Lifting "SS19" Subsea Lever Hoist.

In many areas of industry, plants are operated with potentially explosive atmospheres. Due to the very high risk to personal and other assets, extremely strict guidelines and technical requirements are in place in explosive zones. Tiger Spark Resistant products are manufactured in accordance with ATEX Directive 94/9/EC and the Machinery Directive 2006/42/EC. Our products are lightweight and durable with a proven track record. Atex marking: Ex II 2 GD c IIC IIIC T4. Suitable for gas and dust hazardous areas: Zone 1 & 2 (gas) and Zone 21 & 22 (dust).

A non-atex version of this unit is also available. See Tiger SS11 for more details.

Features

  • Category II – high safety - Certification: Ex II 2 GD c IIC T4 IIIC T135°C
  • Manufactured in accordance with ATEX Directive 94/9/EC and Machinery Directive 2006/42/EC
  • Developed for the use in potentially explosive atmospheres (ATEX zones).
  • Special coated units
  • Different capacities and heights of lift to suit your specific requirements

Specifications

  • Corrosion protected load chain
  • Special corrosion protected coated body
  • Marine specific friction discs
  • Brake chamber protection from outside contamination
  • Copper plated suspension and load hooks, load chain guides, grip rings, hand wheels and end anchorage
  • Stainless steel fixings and fasteners

Optional

  • Stainless steel load chain
  • Overload protection device

Atex Certification:

Under the ATEX Directive 94/9/EC, equipment for areas with an explosion hazard are assigned to groups, categories and temperature classes. Our products are assigned as follows:

Ex II 2 GD c IIC T4 IIIC T135°C

Certification Explained

II Equipment Group: surface industries
2 Category: High Safety
GD Ex Atmosphere: Gas and Dust
c Protection type: Design safety
IIC Gas Explosion Group: Protected for group IIC which includes groups IIA & IIB
T4 Gas Temperature Class: Maximum external surface temperature 135°C
IIIC Groups of Dust: Protected for group IIIC which includes groups IIIA & IIIB
T135°C Dust Temperature Class: Maximum external surface temperature 135°C

Specifications

Product Code Capacity (tonne) Effort (kg) Effort (kg) with ext’n handle Dimensions (mm) Load Chain Standard HOL (m) Mass Kg @ std HOL
A B C D E F F1 Diameter (mm) No. of falls
XSS-0080-015 0.8 23 - 128 240 275 158 99 30 26 Ø6.3 1 3.0 8.52
XSS-0150-015 1.5 26 - 154 360 320 172 104 38 34 Ø7.1 1 3.0 11.85
XSS-0300-015 3.0 38 22 182 360 400 195 108 43 38 Ø10.0 1 3.0 21.3
XSS-0600-015 6.0 40 23.5 242 360 570 195 108 57 52 Ø10.0 2 3.0 34.6
XSS-1000-015 10.0 47 27.5 370 360 630 195 108 71 56 Ø10.0 3 3.0 45.9

Dimensional Images

800kg to 3000kg Dimensions
6 tonne Dimensions
10 tonne Dimensions
800kg to 3000kg 6000kg 10000kg
