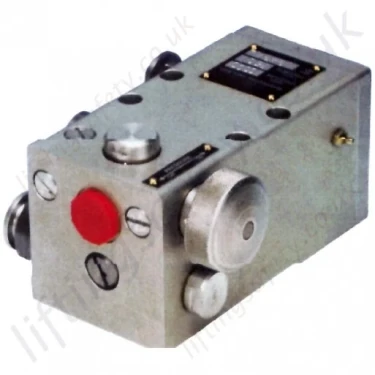

LiftingSafety Powerlite Two Stage Hydraulic Pumps - Range from 110 BAR to 700 BAR

Compact and Versatile Hydraulic Pumps.

Model:

Powerlite / PHP-3122


Description

+

Features

  • Two speed operation.
  • Range of high pressures.
  • Fast low pressure displacement.
  • Compact design.
  • Highly adaptable.
  • Suitable for use with various fluids.
  • Gauges and tanks available.
  • Lever Length: 610mm.
  • Lever effort at max. rated pressure: 45kgf (100lbs).
  • Pump Weight: 4.5kg.
  • Tanks available upto 6 Gallons. Alternative tank capacities made to order

Specifications

Max. Working Pressure (p.s.i.). 10000 (700 BAR) 8000 (552 BAR) 6500 (448 BAR) 4500 (310 BAR) 2500 (172 BAR) 1600 (110 BAR)
Diameter of High-pressure Plunger. 1/2 in. (12.7mm) 9/16 in. (14.3mm) 5/8 in. (16mm) 3/4 in. (19mm) 1 in. (25.4mm) 1 1/4 in. (32mm)
Cu. Ins. Displaced Per Stroke. 0.221 (3cm sq) 0.279 (4cm sq) 0.345 (5cm sq) 0.445 (7cm sq) 0.883 (13cm sq) 1.380 (20cm sq)

Dimensions

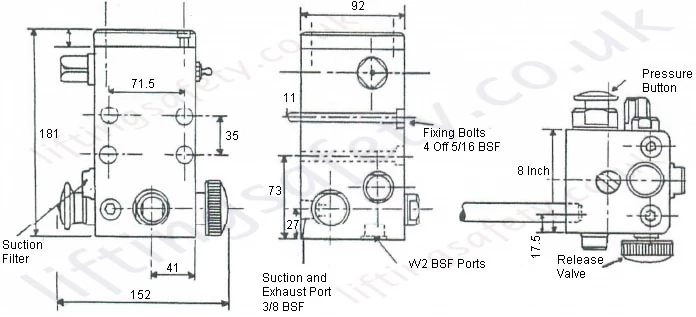

Dimensional Diagram

Pricing

+
Part N° Max Working Pressure (p.s.i.) Dia. of Plunger Cu. in. Displaced per Stroke Guide Price Quantity
3122-T20245 10000 (700 BAR) 1/2 in. (12.7mm) 0.221 (3cm sq) £  857.30
3122-T20246 8000 (552 BAR) 9/16 in. (14.3mm) 0.279 (4cm sq) Quote Required
3122-T20247 6500 (448 BAR) 5/8 in. (16mm) 0.345 (5cm sq) Quote Required
3122-T20248 4500 (310 BAR) 3/4 in. (19mm) 0.445 (7cm sq) Quote Required
3122-T20249 2500 (172 BAR) 1 in. (25.4mm) 0.883 (13cm sq) Quote Required
3122-T20250 1600 (110 BAR) 1 1/4 in. (32mm) 1.380 (20cm sq) Quote Required
Pricing Currency: Not available at the moment. Add To Quote Request   ?

Features

  • Two speed operation.
  • Range of high pressures.
  • Fast low pressure displacement.
  • Compact design.
  • Highly adaptable.
  • Suitable for use with various fluids.
  • Gauges and tanks available.
  • Lever Length: 610mm.
  • Lever effort at max. rated pressure: 45kgf (100lbs).
  • Pump Weight: 4.5kg.
  • Tanks available upto 6 Gallons. Alternative tank capacities made to order

Specifications

Max. Working Pressure (p.s.i.). 10000 (700 BAR) 8000 (552 BAR) 6500 (448 BAR) 4500 (310 BAR) 2500 (172 BAR) 1600 (110 BAR)
Diameter of High-pressure Plunger. 1/2 in. (12.7mm) 9/16 in. (14.3mm) 5/8 in. (16mm) 3/4 in. (19mm) 1 in. (25.4mm) 1 1/4 in. (32mm)
Cu. Ins. Displaced Per Stroke. 0.221 (3cm sq) 0.279 (4cm sq) 0.345 (5cm sq) 0.445 (7cm sq) 0.883 (13cm sq) 1.380 (20cm sq)

Dimensions

Dimensional Diagram

Part N° Max Working Pressure (p.s.i.) Dia. of Plunger Cu. in. Displaced per Stroke Guide Price Quantity
3122-T20245 10000 (700 BAR) 1/2 in. (12.7mm) 0.221 (3cm sq) £  857.30
3122-T20246 8000 (552 BAR) 9/16 in. (14.3mm) 0.279 (4cm sq) Quote Required
3122-T20247 6500 (448 BAR) 5/8 in. (16mm) 0.345 (5cm sq) Quote Required
3122-T20248 4500 (310 BAR) 3/4 in. (19mm) 0.445 (7cm sq) Quote Required
3122-T20249 2500 (172 BAR) 1 in. (25.4mm) 0.883 (13cm sq) Quote Required
3122-T20250 1600 (110 BAR) 1 1/4 in. (32mm) 1.380 (20cm sq) Quote Required
Pricing Currency: Not available at the moment. Add To Quote Request   ?
