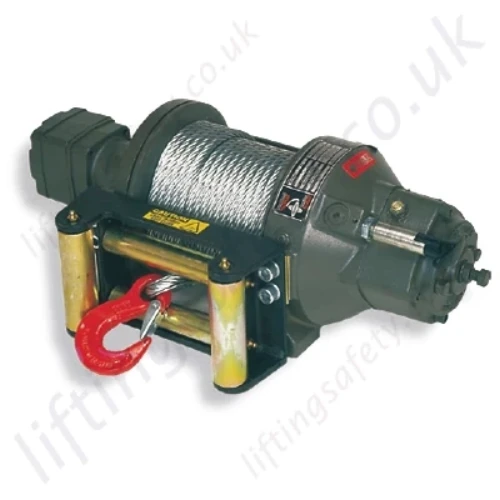

This fast, powerful and reliable machine offers the latest in single-stage planetary gear design for quiet reliable operation and is designed for either foot or side mount.
Options
Air shift freespool clutch with remote activation and positive engagement indicator light.
Radio control system to give flexibility in operating the winch up to 40m distance.
Electric / pneumatic control valve with manual lever and including 7m wanderlead control, heavy duty
16 amp socket, electrical control system with allwiring in Armaflex protection also includes dump valve with emergency stop button ensuring compliance with EU machinery directive.
Hydraulic oil reservoir tank with filter sight gauge and filler cap, PTO and pump.
Features Include
3630kgf line pull (BS7901 and DIN 15020 rating 35.6kN) and
4540kgf line pull (BS7901 and DIN 15020 rating 42.9kN)
Single stage planetary gearing Ideally suited to slidebed and spec lift applications
Fast recovery speeds Up to 15m per minute
Large 100mm diameter with deep flanges Extends rope life and assists wrapping
2 drum length options For RPH 8,000
Heavy duty roller guide assembly With greaseways and large diameter rollers
Spring loaded clutch
Powered cable payout
Braking system Brake and counter balance valve supplied as standard to give 100% braking efficiency
Fitting service Full or partial fitting can be provided, including load testing and certification
After sales service Technical advice given on winch fitting and component replacement, plus efficient overnight parts despatch and fast repairs

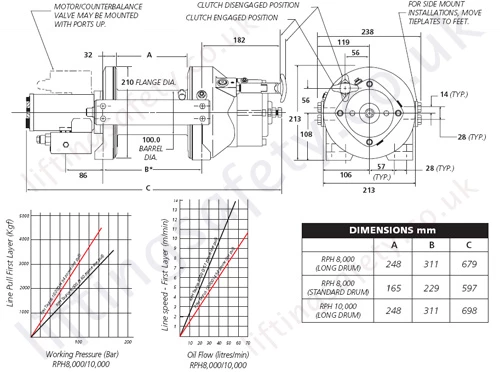

Dimensions
Specification
Individual Features
Description
1184-182559
1184-182561
Rated Line Pull
3630kgf (BS7901 and DIN 15020 rating 35.6kN)
4540kgf (BS7901 and DIN 15020 rating 42.9kN)
Line Speed
15m/min. at 55 lt/min.
10m/min. at 55 lt/min.
Wire Rope
10mm diameter 1960N/mm2 grade
11mm diameter 1960N/mm2 grade
23m (standard drum) 30m (long drum)
30m (long drum)
Weight with roller guides
44kg (standard drum) 47kg (long drum)
49kg (long drum)
Shared Features
Gear Reduction: 5.1:1 Gear Type: Single stage planetary. Winch Construction: Die cast aluminium end housings with steel drum. Braking: Disc brake and counter balance valve providing full 100% braking. Motor: Low speed, high torque. Drum: 100mm diameter. Drum Rotation: Clockwise, viewed from motor end (Counter clockwise option available). Roller Guides: Heavy duty commercial type with large diameter rollers and greaseways. Freespooling: Spring loaded lever.
Warning
This winch is not intended for the transportation of personnel and 5 wraps of wire rope must be maintained on the drum.
Warranty
Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.
Pricing
Unfortunately, this product has been discontinued and/or is no longer available.
Please contact us for details on possible alternative products.
This fast, powerful and reliable machine offers the latest in single-stage planetary gear design for quiet reliable operation and is designed for either foot or side mount.
Options
Air shift freespool clutch with remote activation and positive engagement indicator light.
Radio control system to give flexibility in operating the winch up to 40m distance.
Electric / pneumatic control valve with manual lever and including 7m wanderlead control, heavy duty
16 amp socket, electrical control system with allwiring in Armaflex protection also includes dump valve with emergency stop button ensuring compliance with EU machinery directive.
Hydraulic oil reservoir tank with filter sight gauge and filler cap, PTO and pump.
Features Include
3630kgf line pull (BS7901 and DIN 15020 rating 35.6kN) and
4540kgf line pull (BS7901 and DIN 15020 rating 42.9kN)
Single stage planetary gearing Ideally suited to slidebed and spec lift applications
Fast recovery speeds Up to 15m per minute
Large 100mm diameter with deep flanges Extends rope life and assists wrapping
2 drum length options For RPH 8,000
Heavy duty roller guide assembly With greaseways and large diameter rollers
Spring loaded clutch
Powered cable payout
Braking system Brake and counter balance valve supplied as standard to give 100% braking efficiency
Fitting service Full or partial fitting can be provided, including load testing and certification
After sales service Technical advice given on winch fitting and component replacement, plus efficient overnight parts despatch and fast repairs
Dimensions
Specification
Individual Features
Description
1184-182559
1184-182561
Rated Line Pull
3630kgf (BS7901 and DIN 15020 rating 35.6kN)
4540kgf (BS7901 and DIN 15020 rating 42.9kN)
Line Speed
15m/min. at 55 lt/min.
10m/min. at 55 lt/min.
Wire Rope
10mm diameter 1960N/mm2 grade
11mm diameter 1960N/mm2 grade
23m (standard drum) 30m (long drum)
30m (long drum)
Weight with roller guides
44kg (standard drum) 47kg (long drum)
49kg (long drum)
Shared Features
Gear Reduction: 5.1:1 Gear Type: Single stage planetary. Winch Construction: Die cast aluminium end housings with steel drum. Braking: Disc brake and counter balance valve providing full 100% braking. Motor: Low speed, high torque. Drum: 100mm diameter. Drum Rotation: Clockwise, viewed from motor end (Counter clockwise option available). Roller Guides: Heavy duty commercial type with large diameter rollers and greaseways. Freespooling: Spring loaded lever.
Warning
This winch is not intended for the transportation of personnel and 5 wraps of wire rope must be maintained on the drum.
Warranty
Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.
