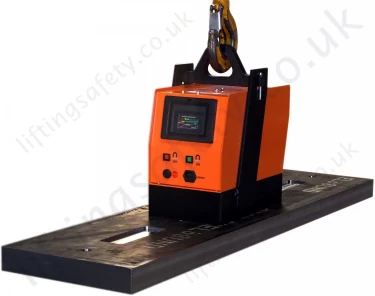

These Battery Powered Lifting Magnets are compact, mobile, self-contained battery powered units. Operating on their own power sources, they are free of restricting cords and wires and have the further advantage of being usable in areas where electric power is not available. Local & cordless remote controlled battery powered lift magnets are designed for flat material handling.
These versatile lifting magnets have widespread application for lifting & handling of plates, die blocks, machined components, smooth castings, and forgings.
Standard Features and Benefits
Self contained lifting magnets
Powered by built-in 12 V battery for at least 8 hours of operation
Hand-held, IR remote control unit allows to operate the lifting magnet from up to 4.5 metres
High degree of safety
Bail sensor prevents magnet de-energization while lifting a load
Dual push buttons for RELEASE
Visual and audible alarms indicate low battery level
Magnet cannot be turned "ON" if battery charge is too low
Exhaustive lifting guidelines ensure a double lift capacity with respect to weight of load
High degree of comfort
Controller/battery enclosure with detachable front and back panel
Easy access to controller and battery for installation and inspection
Additional Lift and Release push buttons on front panel
LED display shows battery charge level when magnet is ON
Built-in, temperature compensated, automatic cut-off charger
Pocket to store remote and mains power cord
Clip on remote allows operator to attach to belt or pocket
Meets all the requirements of ANSI/ASME B30.20 (safety standard).
110V AC cord and plug for built-in battery charger
Interlock prevents magnet de-energization when suspended in air.
Removable cover allows inspection of battery.
Pocket for IR Remote Transmitter*
Temperature compensated: built-in automatic cut-off charger prevents over-charging of battery.
Supplied with manual, pull test certificate, video, and safety poster.
For safety, magnet can not be turned "ON" if battery charge is too low.
Audible Warning Alarm and flashing light indicate low battery
Lighted display indicates battery charge level.
Uses "Deep Discharge" type low maintenance Gel Cell Battery.
IR remote
Single push button lift
Clip allows operator to attach to belt or pocket
Dual push button release
Additional remote control units available at nominal cost.
Specifications
LSLift-BM
LSLift-BMP
Type
LSLift-BM 1350
LSLift-BM 2500
LSLift-BM 3600
LSLift-BM 5000
Description
3poles flat magnet
3poles flat magnet
3poles flat magnet
3poles flat magnet
L (mm)
272
400
1050
1200
W (mm)
242
242
240
300
H (mm)
460
460
460
460
Weight (kg)
60
72
180
203
Tested lifting capacity (kg)
2700
5000
7200
10000
Safe lifting capacity for flat material (kg)
1350
2500
3600
5000
Accumulator capacity (V/Ah)
13119
18598
25903
25903
Accumulator type (DIN)
43539-2
43539-3
43539-3
43539-3
Working time at 50%load (h)
8
8
8
8
Type
LSLift-BMP 1800
LSLift-BMP 3600
Description
2 poles magnet with prism
2 poles magnet with prism
L (mm)
470
760
W (mm)
242
262
H (mm)
610
620
Weight (kg)
167
420
Tested lifting capacity (kg)
3600
7200
Safe lifting capacity for flat material (kg)
1800
3600
Safe lifting capacity for circular material (kg)
1100
2200
Accumulator capacity (V/Ah)
25903
25903
Accumulator type (DIN)
43539-3
43539-3
Working time at50%load (h)
8
8
Unfortunately, this product has been discontinued and/or is no longer available.
Please contact us for details on possible alternative products.
