Crosby IPHTONZ IPHSZ Horizontal Plate Clamps - Range from 750kg to 12,000kg

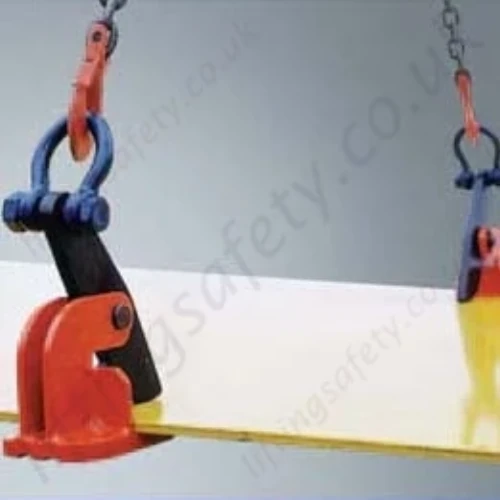

Non Sagging, Crosby IP Horizontal Plate Clamp.

Model:

IPHTONZ IPHSZ / HPC-889


Unfortunately this product is no longer available. Please view our full range of Horizontal Plate Lifting Clamps or Contact us with your requirements for a possible suitable alternative.

  • The IPHTONZ and IPHSZ horizontal lifting clamps are suitable for the lifting and transfer in horizontal position of non-sagging steel plates.
  • Light-weight clamp.
  • The IPHTONZ/IPHSZ lifting clamps may also be used hanging vertically under a spreader beam.
  • The IPHSZ is equal to the IPHTONZ but with a higher jaw aperture.
  • For correct use of the clamp, please consult fig. 2 & 3.
  • Higher WLL and different jaw apertures upon request.
  • Please note: WLL and Weight are given per pair, price is per piece
Model WLL per pair Jaw (mm) Dimensions (mm) Weight per pair
(tonnes) A B C D E F G H J K (kg)
2705343 0.75 0-30 75 16 - 16 64 118 81 12 46 4.0
2705344 1.5 0-60 114 16 - 22 87 153 110 16 52 9.0
2705477 3.0 0-60 117 20 - 26 87 163 120 20 69 14.0
2705483 4.5 0-60 132 25 - 30 87 183 130 20 69 20.0
2705484 6.0 0-60 143 25 - 36 96 213 130 20 69 25.0
2705485 9.0 0-60 157 30 - 43 110 223 140 25 86 31.0
2705486 12.0 0-60 172 30 - 47 120 254 150 25 88 41.0

Crosby IP HTONZ / IP HSZ None Sagging Clamps. Dimensional Drawing

Crosby IP HTONZ / IP HSZ None Sagging Clamp

Model WLL per pair Jaw (mm) Dimensions (mm) Weight per pair
(tonnes) A B C D E F G H J K (kg)
2705308 3.0 0-100 192 20 - 26 160 222 140 20 65 22.0
2705311 6.0 0-100 200 25 - 32 160 249 180 20 69 36.4
2705313 9.0 0-100 220 30 - 35 170 270 190 25 85 49.2
2705318 12.0 0-100 220 35 - 47 170 270 200 25 95 62.8



Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.

Unfortunately this product is no longer available. Please view our full range of Horizontal Plate Lifting Clamps or Contact us with your requirements for a possible suitable alternative.

  • The IPHTONZ and IPHSZ horizontal lifting clamps are suitable for the lifting and transfer in horizontal position of non-sagging steel plates.
  • Light-weight clamp.
  • The IPHTONZ/IPHSZ lifting clamps may also be used hanging vertically under a spreader beam.
  • The IPHSZ is equal to the IPHTONZ but with a higher jaw aperture.
  • For correct use of the clamp, please consult fig. 2 & 3.
  • Higher WLL and different jaw apertures upon request.
  • Please note: WLL and Weight are given per pair, price is per piece
Model WLL per pair Jaw (mm) Dimensions (mm) Weight per pair
(tonnes) A B C D E F G H J K (kg)
2705343 0.75 0-30 75 16 - 16 64 118 81 12 46 4.0
2705344 1.5 0-60 114 16 - 22 87 153 110 16 52 9.0
2705477 3.0 0-60 117 20 - 26 87 163 120 20 69 14.0
2705483 4.5 0-60 132 25 - 30 87 183 130 20 69 20.0
2705484 6.0 0-60 143 25 - 36 96 213 130 20 69 25.0
2705485 9.0 0-60 157 30 - 43 110 223 140 25 86 31.0
2705486 12.0 0-60 172 30 - 47 120 254 150 25 88 41.0

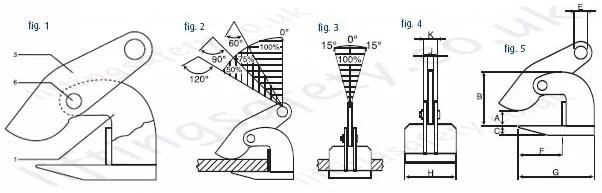

Crosby IP HTONZ / IP HSZ None Sagging Clamps. Dimensional Drawing

Crosby IP HTONZ / IP HSZ None Sagging Clamp

Model WLL per pair Jaw (mm) Dimensions (mm) Weight per pair
(tonnes) A B C D E F G H J K (kg)
2705308 3.0 0-100 192 20 - 26 160 222 140 20 65 22.0
2705311 6.0 0-100 200 25 - 32 160 249 180 20 69 36.4
2705313 9.0 0-100 220 30 - 35 170 270 190 25 85 49.2
2705318 12.0 0-100 220 35 - 47 170 270 200 25 95 62.8



Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
