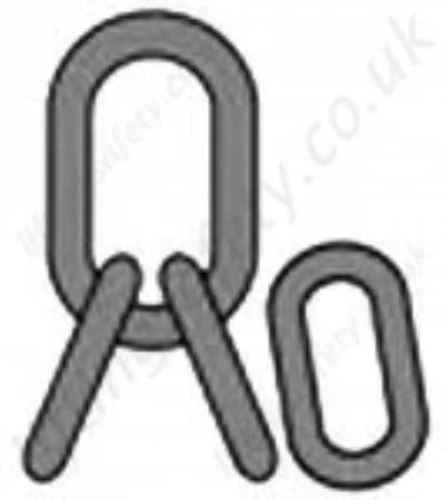

Grade 8 Sub-Assemblies for use with 7mm to 32mm Lifting Chain

Model:

G8S-3426


This page has expired. Please view our new and updated full range of Master Links & Quad Assemblies or Contact us with your requirements for a suitable alternative.

  • Forged from alloy steel in accordance with EN1677.
  • Individually magnaflux crack detected after heat treatment.
  • Individually proof load tested to 2.5 times working load limit in accordance with EN1677.
  • Fully compliant with all aspects of EN1677, so can be used in chain slings certified to EN818-4.
  • Suitable for use in a temperature range of -40C up to 200C without reduction in working load limit.
  • Testing according to ASTM A952/A - DIN PAS 1061
  • Design factor 4:1 proof tested and certified.

Dimensions & Specifications

Chain Size (mm) Weight (kg) WLL (tonnes) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm)
6 1.3 2.9 16 140 70 13 110 60
7 and 8 2.5 5.3 20 160 90 16 140 70
10 5.0 8.4 25.5 200 110 20 160 90
13 10.0 14.0 32 270 140 26 200 110
16 18.6 21.0 40 280 155 32 270 140
20 16.4 28.1
22 23.5 38.3
26 32.3 45.0
32 63.9 75.0
Dimensional Drawing

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
