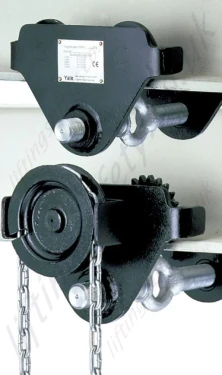

- Yale "HTP" / "HTG" Beam Trolley, Quick Fit - Range from 500kg to 50,000kg
Yale "HTP" / "HTG" Beam Trolley, Quick Fit - Range from 500kg to 50,000kg
Push and Geared Travel (hand chain drive) Beam Trolleys with optional track clamp (locking device)
Yale HTP/HTG / YBTQF-207
A beam trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment. It has excellent controlling features due to machined steel wheels mounted on prelubricated, encapsulated ball bearings.
Standard Flange Width and Wide Beam Flange Range.

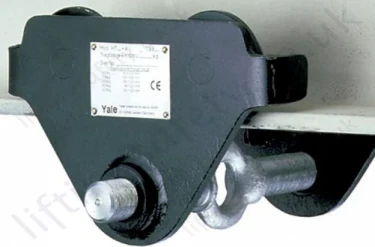

- Push travel (HTP) - Capacities 500kg- 5000kg
- No hand chain
- Geared travel (HTG) - Capacities 500kg - 50,000kg
- 2.5 metre hand chain drop (zinc plated) as standard to suit 3 metre HOL (height of lift).
The HTP/HTG beam runners are adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB). The trolley wheels are designed for a max. beam profile incline of 14%. Adjustments are made by rotating the clevis load bar which also ensure the centred positioning of the hoist in the clevis - no creeping to the left or the right. Trolleys are in accordance with the UVV and machinery directive.
Optional
- Buffers can be fitted.
- Rust and acid resistant hand chains (geared travel only).
- Corrosion resistant.
- Track clamp (locking device) for 500kg to 5000kg models for fixing the beam glide in a stationary position.
- Lock nuts for 500kg to 2000kg models.
Technical Data
| Model | Capacity (kg) |
Size | Beam Flange Width b (mm) |
Max. Flange Thickness |
Min. Radius Curve (m) |
Effort at WLL daN |
Net weight in kg | |||
| without locking device | with locking device | |||||||||
| HTP | HTG* | HTP | HTG* | |||||||
| HTP/G | 500 | A B |
50-220 160-300 |
25 40 |
0.90 | 3 | 8.0 10.6 |
9.7 12.6 |
14.5 17.1 |
16.2 19.1 |
| HTP/G | 1000 | A B |
50-220 160-300 |
25 40 |
0.90 | 6 | 9.0 12.0 |
11.2 14.1 |
17.0 20.0 |
19.2 22.1 |
| HTP/G | 2000 | A B |
66-220 160-300 |
25 40 |
1.15 | 7 | 16.0 19.3 |
18.0 21.3 |
24.0 27.3 |
26.0 29.3 |
| HTP/G | 3000 | A B |
74-220 160-300 |
25 40 |
1.40 | 7 | 32.0 35.8 |
35.4 39.2 |
41.2 45.0 |
44.6 48.4 |
| HTP/G | 5000 | A B |
90-220 180-300 |
25 40 |
1.80 |
9 | 48.0 52.2 |
51.8 56.0 |
58.5 62.7 |
62.3 66.5 |
| HTG | 10000 | B | 125-310 | 40 | 1.80 | 14 | - | 104.0 | - | - |
| HTG | 20000 | B | 125-310 | 40 | 5.00 | 29 | - | 230.0 | - | - |
| HTG | 30000 | B | 175-305 | TBC | TBC | TBC | - | 248.0 | - | - |
| HTG | 50000 | B | 175-305 | TBC | TBC | TBC | - | 489.0 | - | - |

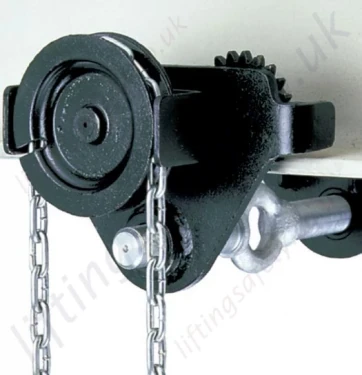

Manual Geared Travel Hand Chain Drive
Track Clamp Chain Drive
Technical Dimensions
Technical dimensions/measurements for the Yale HTP and HTG beam trolleys.(approx. 0.2Mb)
Locking Device (track clamp)
Example of the working and positioning of the locking device (track clamp) fitted to a Yale HTP Beam Trolley.(approx. 0.1Mb)
Yale HTP/G Operating Manual
The operating instructions contain important information on how to handle the trolley in a safe, correct and economic way. Acting in accordance with these instructions helps to avoid dangers, reduce repair costs and down time and to increase the reliability and lifetime of the trolley. Anyone involved in doing any of the following work with the trolley must read the operation instructions and act accordingly.(approx. 0.3Mb)
A beam trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment. It has excellent controlling features due to machined steel wheels mounted on prelubricated, encapsulated ball bearings.
Standard Flange Width and Wide Beam Flange Range.
- Push travel (HTP) - Capacities 500kg- 5000kg
- No hand chain
- Geared travel (HTG) - Capacities 500kg - 50,000kg
- 2.5 metre hand chain drop (zinc plated) as standard to suit 3 metre HOL (height of lift).
The HTP/HTG beam runners are adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB). The trolley wheels are designed for a max. beam profile incline of 14%. Adjustments are made by rotating the clevis load bar which also ensure the centred positioning of the hoist in the clevis - no creeping to the left or the right. Trolleys are in accordance with the UVV and machinery directive.
Optional
- Buffers can be fitted.
- Rust and acid resistant hand chains (geared travel only).
- Corrosion resistant.
- Track clamp (locking device) for 500kg to 5000kg models for fixing the beam glide in a stationary position.
- Lock nuts for 500kg to 2000kg models.
Technical Data
| Model | Capacity (kg) |
Size | Beam Flange Width b (mm) |
Max. Flange Thickness |
Min. Radius Curve (m) |
Effort at WLL daN |
Net weight in kg | |||
| without locking device | with locking device | |||||||||
| HTP | HTG* | HTP | HTG* | |||||||
| HTP/G | 500 | A B |
50-220 160-300 |
25 40 |
0.90 | 3 | 8.0 10.6 |
9.7 12.6 |
14.5 17.1 |
16.2 19.1 |
| HTP/G | 1000 | A B |
50-220 160-300 |
25 40 |
0.90 | 6 | 9.0 12.0 |
11.2 14.1 |
17.0 20.0 |
19.2 22.1 |
| HTP/G | 2000 | A B |
66-220 160-300 |
25 40 |
1.15 | 7 | 16.0 19.3 |
18.0 21.3 |
24.0 27.3 |
26.0 29.3 |
| HTP/G | 3000 | A B |
74-220 160-300 |
25 40 |
1.40 | 7 | 32.0 35.8 |
35.4 39.2 |
41.2 45.0 |
44.6 48.4 |
| HTP/G | 5000 | A B |
90-220 180-300 |
25 40 |
1.80 |
9 | 48.0 52.2 |
51.8 56.0 |
58.5 62.7 |
62.3 66.5 |
| HTG | 10000 | B | 125-310 | 40 | 1.80 | 14 | - | 104.0 | - | - |
| HTG | 20000 | B | 125-310 | 40 | 5.00 | 29 | - | 230.0 | - | - |
| HTG | 30000 | B | 175-305 | TBC | TBC | TBC | - | 248.0 | - | - |
| HTG | 50000 | B | 175-305 | TBC | TBC | TBC | - | 489.0 | - | - |
Manual Geared Travel Hand Chain Drive
Track Clamp Chain Drive
Technical Dimensions
Technical dimensions/measurements for the Yale HTP and HTG beam trolleys.(approx. 0.2Mb)
Locking Device (track clamp)
Example of the working and positioning of the locking device (track clamp) fitted to a Yale HTP Beam Trolley.(approx. 0.1Mb)
Yale HTP/G Operating Manual
The operating instructions contain important information on how to handle the trolley in a safe, correct and economic way. Acting in accordance with these instructions helps to avoid dangers, reduce repair costs and down time and to increase the reliability and lifetime of the trolley. Anyone involved in doing any of the following work with the trolley must read the operation instructions and act accordingly.(approx. 0.3Mb)
