Alloy Gantry 'A' Frame with Twin Parallel Top Beams and Adjustable Feet, 2000kg or 3000kg (8 Options)

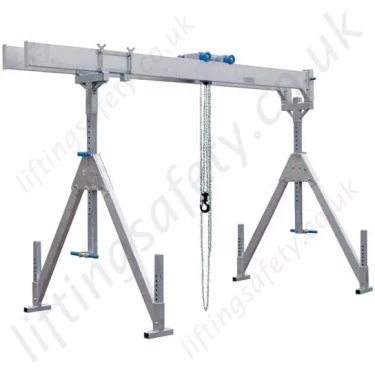

Fully Adjustable double overhead beam, aluminium gantry crane with folding lateral legs, not movable under load. Beams over 4 metres are supplied as 2-part beams.

Model:

HDBG-3087


Double overhead lifting beams offer excellent features not possible with other lightweight aluminum mobile lifting gantries.

  • Much longer spans than conventional designs ie, the distance between legs (vertical columns)
  • The load trolley spans between the two lifting beams allowing the hoist to operate in the space between the beams thus giving a very high hook height (low headroom)
  • Twin overhead beams give greater rigidity and stability to the overall structure

Excellent choice with gantries up to 3 tonne SWL and 7.1 metre span. Excellent quality, designed and manufactured in Germany for heavy industrial use by professionals.

Fully adjustable, these lightweight alloy lifting gantries are not fitted with castor's and are not designed to be movable under load. The gantry has vertical adjustable in two positions, at the feet and vertical column giving a wide adjustment range. No castors has many advantages for example possible rough terrain capability and greater stability; also with this design having the ability to adjust each individual leg to maintain a level top beam is perfect for use on uneven ground

The Unique design of our lifting gantry also enables horizontal adjustment; quickly and infinitely adjustable.

Each of the legs / vertical supports collapses for ease of transport making the gantry easily handled and moved by the user.

Included as standard is a braked load trolley that is supported on the 'box section' top lifting beam, the trolley is low headroom design providing a smooth and safe means of traversing a load.

All the Gantries in this range can be supplied certified for manriding, fall arrest and rescue applications for persons working at height or in confined spaces.

Gantry is available in two main capacities:

  • 2000kg Gantries
    • 2302mm min. height;
    • 3552mm max. height;
    • Beam lengths from 4 metres to 7 metre.
    • See the tab above labelled '2000kg' for technical information on the small gantry crane.
  • 3000kg Gantries
    • 2720mm min. height;
    • 3870mm max. height;
    • Beam lengths from 4 metres to 7 metre.
    • See the tab above labelled '3000kg' for technical information on the medium gantry crane.

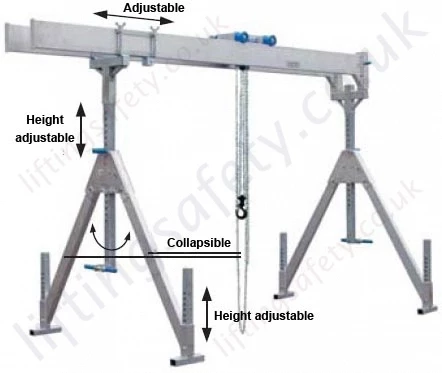

Adjustable Crane Features

Adjustable Features

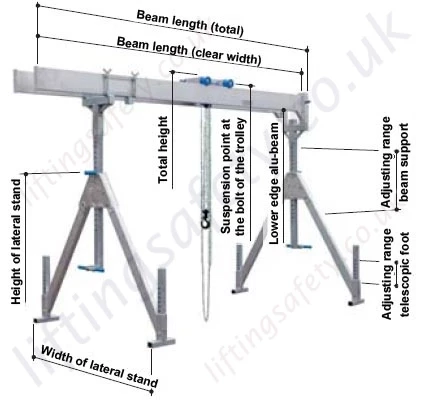

Labelled Image

Labelled Dimensions and Features

2000kg Gantry Crane Technical Specifications

Heavy Duty 2000kg Cranes

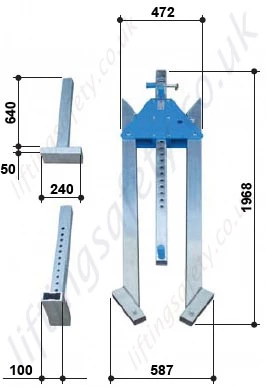

Component Dimensional Image

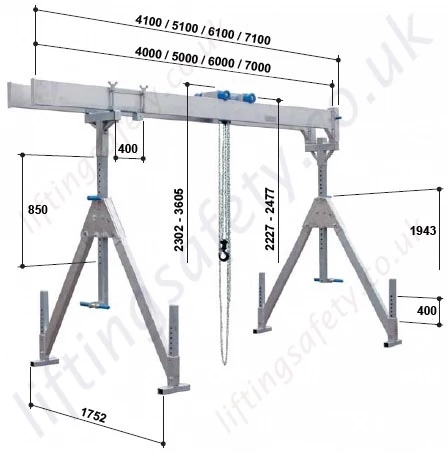

Dimensional Diagram

Dimensional specifications for the 2000kg aluminium gantry crane with collapsible lateral stands and fixed feet.

Item N° Load capacity Total height Beam length Suspension point at the bolt of the trolley Lower edge alu-beam Adjustment range Lateral stand Weight
min. max. Clear width Total min. max. min. max. beam support telescopic foot width height
(kg) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
3087-T4901 2000 2302 3552 4000 4100 2227 3477 1980 3230 850 400 1752 1943 225
3087-T4902 2000 2302 3552 5000 5100 2227 3477 1980 3230 850 400 1752 1943 239
3087-T4903 2000 2302 3552 6000 6100 2227 3477 1960 3210 850 400 1752 1943 273
3087-T4904 2000 2302 3552 7000 7100 2227 3477 1960 3210 850 400 1752 1943 291

Component Weights and Dimensions

Item n° Load capacity (kg) Beam length (mm) Beam support (mm) Beam profile (mm) Beam housing Width between alu-beams (mm) Total weight (kg) Aluminium beam (kg) Lateral stand (kg) Horizontal adjuster (kg) Beam mountings (kg) Trolley (kg)
3087-T4901 2000 4000 70 x 70 200 x 50 One side: sleeve 92 x 92mm, other side: sealing plate 260 225 2 x 30 2 x 51 30 15 18
3087-T4902 2000 5000 70 x 70 200 x 50 260 239 2 x 37 2 x 51 30 15 18
3087-T4903 2000 6000 70 x 70 220 x 60 250 273 2 x 54 2 x 51 30 15 18
3087-T4904 2000 7000 70 x 70 220 x 60 250 291 2 x 63 2 x 51 30 15 18
* with larger profile thickness.

3000kg Gantry Crane Technical Specifications

Heavy Duty 3000kg Cranes

Component Dimensional Image

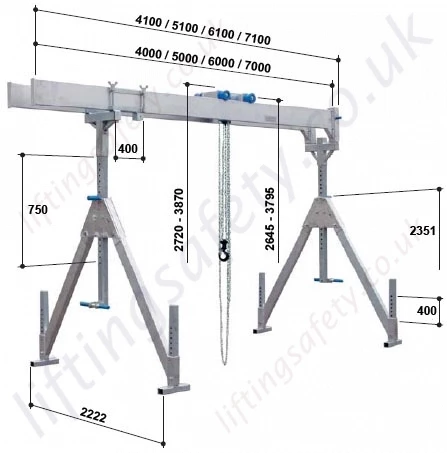

Dimensional Diagram

Dimensional specifications for the 3000kg aluminium gantry crane with collapsible lateral stands and fixed feet.

Item N° Load capacity Total height Beam length Suspension point at the bolt of the trolley Lower edge alu-beam Adjustment range Lateral stand Weight
min. max. Clear width Total min. max. min. max. beam support telescopic foot width height
(kg) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
3087-T4905 3000 2720 3870 4000 4100 2645 3795 2378 3528 750 400 2222 2351 267
3087-T4906 3000 2720 3870 5000 5100 2645 3795 2378 3528 750 400 2222 2351 325
3087-T4907 3000 2720 3870 6000 6100 2645 3795 2378 3528 750 400 2222 2351 351

Component Weights and Dimensions

Item n° Load capacity (kg) Beam length (mm) Beam support (mm) Beam profile (mm) Beam housing Width between alu-beams (mm) Total weight (kg) Aluminium beam (kg) Lateral stand (kg) Horizontal adjuster (kg) Beam mountings (kg) Trolley (kg)
3087-T4905 3000 4000 80 x 80 220 x 60 One side: sleeve 92 x 92mm, other side: sealing plate 250 267 2 x 36 2 x 66 30 15 18
3087-T4906 3000 5000 80 x 80 220 x 60 250 325 2 x 65 2 x 66 30 15 18
3087-T4907 3000 6000 80 x 80 220 x 60 250 351 2 x 78 2 x 66 30 15 18
* with larger profile thickness.

Optional Gantry Features

If you require any of the features below please feel free to contact us and we will be happy to assist you in finding the correct gantry and fittings for your lifting application.

Split Top Beam

Wall Bracket - More Detail

Split Top Beam

Separable aluminium top beam, to enable ease of transportation due to smaller lengths and weights making manual handling less of an issue. Being seperable / split means that it can also be packed away into a smaller space or fitted into the back of a van for movement between sites.

Wall Bracket Kit

Wall Bracket

Designed to fix one end of the beam to a wall.

Wheel Kit

Wheel Kits - spring loaded (not for movement under load)

Wheel kit for stationary Gantry Cranes:
The advantage of the wheel kits is that you have the stability of a stationary gantry crane combined with the flexibility to move the crane to another position. E.g. the crane will be used in a factory building and when needed in more than just one spot they can move the crane to the area that they need to do further work. As soon as load is applied to the crane the frame around the casters will be pushed onto the floor and the crane will rest on this frame and no longer on the castors. As soon as the load is taken off the gantry the crane will raise slightly once more making the gantry mobile so that it can be moved to the next working area. Without that wheel kit the crane would need to be disassembled for transport to the next working area or manually carried.

This wheel kit facilitates the moving of the assembled gantry crane, without load. (not under load)

  • The spring mounted guide rolls allow the crane's lateral stands to rest directly on the supports when under greater loads.
  • The leg and forks construction permits the lateral stands to remain upright when assembling and dis-assembling the crane.
  • The fork legs are individually height adjustable.
  • 1 wheel kit = 4 x castors (forked supports)

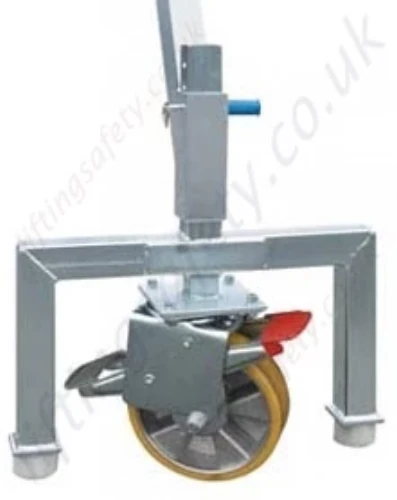

Heavy duty polyurethane lining

Wheel Kit - Polyurethane Lining

Attention:

- When using this wheel kit together with this aluminium gantry crane the minimum suspension point at the trolley pin is increased by 360mm and the maximum suspension point at the trolley pin is increases by 160mm.

- The adjustment range of the wheel kit legs is 200mm.

Kit Features:

  • 4 Steel Castors.
  • With integrated wheel and live ring brake.
  • For indoor moving of the crane without load.
  • Weight: 60kg.
Heavy duty polyurethane foam tyres

Wheel Kit - Polyurethane Foam Tyres

Attention:

- When using this wheel kit together with this aluminium gantry crane the minimum suspension point at the trolley pin is increased by 400mm and the maximum suspension point at the trolley pin is increases by 200mm.

- The adjustment range of the wheel kit legs is 200mm.

Kit Features:

  • 4 Steel Castors.
  • With integrated wheel and live ring brake.
  • For indoor and outdoor moving of the crane without load.
  • Weight: 60kg.
Crane Transporter - Shown with packed away gantry craneCrane Transporter - Showing components

Crane Transporter

Designed to transport this type of gantry crane around from location to location whilst packed away reducing manual effort.

If the assembly site cannot be directly reached by vehicle, the easy handling of the crane transporter makes it possible to transport the gantry crane conveniently over distance.

Where the crane is used adjacent to the site you can do without a vehicle altogether.

The accessories of the crane can also be safely carried on the crane transporter.

Weight: 30kg (small and medium cranes), 32kg (high cranes).

Hand Chain Hoist

Chain Hoist

A choice of compact and lightweight hand chain hoists from a number of reputable manufacturers made from high quality materials.

Hoist Features

  • Minimum weight, thus easy to hang up.
  • Two-step spur gear.
  • Safe working loads to suit your application
  • High-strength, galvanised round link chain according to DIN 5684.
  • Corrosion resistant option, better suited for outdoor use.
  • Ball-bearing load hook.
  • The closed housing protects the drive and brake against dirt.
  • All mechanical parts are made from high quality steel.
  • Load hook comes complete with integrated safety catch.
Electric Chain Hoist

Electric Chain Hoist

This electric hoist is a hook suspended version and it is manufactured in accordance with EU - Machinery Directive and Equipment Safety Law. We can offer electric hoists to suit your application from a wide selection of manufacturers tailored to suit your requirements.

Hoist Features

  • IP rating to your specification
  • SWL to match with your choice of gantry
  • Suitable for internal or exterior use.
  • Power supply single phase or 3 phase, 110v, 240v or 415v.

Lifting Mechanism Specifics

  • Ambient temperature rating -20 to +40°C
  • Lifting speed to suit your requirements, single or dual speed
  • Duty cycle to your spec
  • Galvanised chain.

Electrical Features

  • Operating voltage: options
  • Low voltage pendant control
  • Control unit including control cable.
  • Control unit protection class: IP66
  • Can also be delivered with radio control.
Cable System - Power SupplyCable Syetem Power Supply - Closer Detail

Spring Recoil Power SupplyCable System/Power Supply

Features

  • Power supply 110v, 230 or 400 V / 16 Amp. 50 Hz.
  • Spring recoil - PUR-coil lead (memory cable - curly wirly cable) or spring recoil power supply festoon option.
  • The electrical connection for the chain hoist is made using a plug and socket connection (Protection Class DIN EN 60529 IP66).
  • All electrical components can be appropriate for internal and external operating conditions.
Hand Winch

Hand Winch

  • For height adjustment. (raise and lower the vertical column)
  • 1 set  = 2 pieces (1 hand winch per lateral stand).
  • Pertmits large lifting height.
  • The load on the crank is constant and independent of the cylinder diameter.
  • Durability due to the chain drive.
  • Height of lift per winch rotation: 90mm
  • Weight: 20kg.
Man-riding Application Gantry

Gantry for Man-riding Applications

  • All the Aluminium Lifting Gantries in this range can be supplied certified for manriding, fall arrest and rescue applications
  • For persons working at height or in confined spaces.
  • We can supply fitted with a fall arrest inertia reel or / and manriding / rescue winch.
  • As you can see on the image to the right the winch options are fitted to the vertical upright then the cable is reeved over two fixed pulley wheels so that the hook can be lowered directly above the person.
Wire Rope Lifting Hoist

Wire Rope Lifting Hoist

  • Using the same principle as above we can also supply the lifting gantry with a wire rope lifting hoist fitted (electric or pneumatic).
  • By deflection of the wire rope over two pulley wheels you can create maximum height of lift.
  • Lifting position on the top beam is adjustable to any required position.
  • Contact our sales office for further information or for a quotation.
