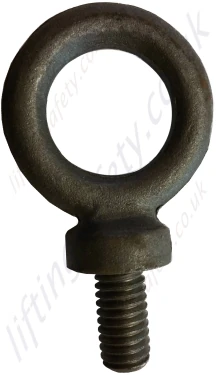

Imperial Thread Dynamo Eye Bolts to BS4278 - Range from 250kg to 3200kg

High tensile Imperial thread dynamo eye bolts.

Model:

IDEB-3272

Manufacturing Standard: BS4278


Description

+
  • Material: as specified by BS 4278 Hardened & Tempered
  • S.W.L. shown at 0° (vertical) angle of lift.
  • Not to be used for inclined lift.
  • Available thread types BSW, UNC, BSF and UNF.

Dimensions & Specifications

Thread Size SWL (tonne) B (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Weight Each (kg)
3/8 0.25 17 5 22 9 27 18 0.08
1/2 0.50 23 6 29 11 34 23 0.14
3/4 1.25 32 9 40 15 47 32 0.40
1 2.0 40 12 51 19 60 40 0.78
1-1/4 3.2 51 14 64 24 75 51 1.78
Dimensional Drawing



Pricing

+
Thread Type
Part N° Thread Dia. (in.) Safe Working Load Note Weight (kg) Guide Price Quantity
3272-T6363 3/8 250kg @ 0° (true vertical lift) Not to be used for an inclined lift 0.08 Quote Required
3272-T6364 1/2 500kg @ 0° (true vertical lift) Not to be used for an inclined lift 0.14 Quote Required
3272-T6365 3/4 1250kg @ 0° (true vertical lift) Not to be used for an inclined lift 0.40 Quote Required
3272-T6366 1 2000kg @ 0° (true vertical lift) Not to be used for an inclined lift 0.78 Quote Required
3272-T6367 1-1/4 3200kg @ 0° (true vertical lift) Not to be used for an inclined lift 1.78 Quote Required
Add to Quote Basket   ?
  • Material: as specified by BS 4278 Hardened & Tempered
  • S.W.L. shown at 0° (vertical) angle of lift.
  • Not to be used for inclined lift.
  • Available thread types BSW, UNC, BSF and UNF.

Dimensions & Specifications

Thread Size SWL (tonne) B (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Weight Each (kg)
3/8 0.25 17 5 22 9 27 18 0.08
1/2 0.50 23 6 29 11 34 23 0.14
3/4 1.25 32 9 40 15 47 32 0.40
1 2.0 40 12 51 19 60 40 0.78
1-1/4 3.2 51 14 64 24 75 51 1.78
Dimensional Drawing



Thread Type
Part N° Thread Dia. (in.) Safe Working Load Note Weight (kg) Guide Price Quantity
3272-T6363 3/8 250kg @ 0° (true vertical lift) Not to be used for an inclined lift 0.08 Quote Required
3272-T6364 1/2 500kg @ 0° (true vertical lift) Not to be used for an inclined lift 0.14 Quote Required
3272-T6365 3/4 1250kg @ 0° (true vertical lift) Not to be used for an inclined lift 0.40 Quote Required
3272-T6366 1 2000kg @ 0° (true vertical lift) Not to be used for an inclined lift 0.78 Quote Required
3272-T6367 1-1/4 3200kg @ 0° (true vertical lift) Not to be used for an inclined lift 1.78 Quote Required
Add to Quote Basket   ?
Contact Us About This Product
