Gebuwin "TC Series" Hand Operated Spur Gear Winch, Range from 1000kg to 1500kg

Model:  TC Series / GSGW-4763

Winch Capacity (1st Cable Layer)
Atex Certification

Unit Price £ 883.00
Part N°: 4763-14130143   Add to Quote Request

Spur gear free spool hand winch for lifting/hoisting and pulling. Optional painted/stainless steel finish and Atex rating.

These winches are used for both hoisting and pulling of loads. They are equipped with a cable drum free spool, making it possible for the cable to be easily pulled from the drum, due to the fact that the cable drum can be detached from the transmission. As well as this, these winches can be mounted in such a way that allows for the cable to come free from the winch horizontally.

The Gebuwin TC range of hand driven spur gear winches are known for their robust construction. The listed capacities refer to the hoisting capacities which are calculated according to the first cable layer on the cable drum. In the case of these winches being used for the pulling of loads, the hoisting capacity should be multiplied roughly by a factor of 2.5.

The spur gear winches are equipped with a load pressure brake. This brake holds the load at any required height during hoisting and lowering. The cranks can be adjusted in length and are recoil-free. All rotating parts run in maintenance free bearings. Due to the minimal friction loss in the transmission, the spur gear winches have a high performance efficiency. These spur gear winches have a sealed spur gear casing. With the painted range, most parts are made from steel and have been either painted or zinc plated. With the Stainless Steel range, the parts are made from stainless steel, excepting for the inner parts within the spur gear casing.

Product Features

  • Robust and safe hoisting or pulling winch with Free Spool.
  • Pulling capacity is approx. 2.5x hoisting capacity.
  • Static safety factor of 4 .
  • Load pressure brake with double ratchet system.
  • Maintenance-free bearing.
  • Adjustable crank from 250 to 350mm.
  • Ergonomic grip.
  • Cable outlet to left, right, and top side.
  • Paint thickness is 60 - 80 Micron in 1 layer (in compliance with DIN/ISO 12944, C1M). Winch: Grey (RAL 7035), Drum: Black (RAL 9005).
  • Closed gearbox.
  • In compliance with EN 13157 and DIN 15020 and EX types ATEX 114 (94/9/EG).
  • Also available with multiple compartment cable drum, and ATEX certified.
TC Series Spur Gear Lifting And Pulling Winch

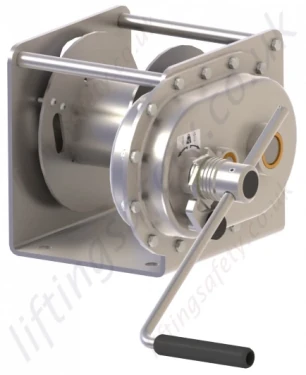

Gebuwin TC Spur Gear Winch

Technical Specifications

Model TC1000 TC1500
Capacity: 1st Cable Layer 1000kg 1000kg
Capacity: Last Cable Layer 614kg 927kg
Crank force 1st Cable Position 11daN 12daN
Hoisting Length by one rotation of crank (1st Layer) 20mm 14mm
Cable Capacity 33m 21m
Cable Dia. (EN 12383-4) 8mm 10mm
Min. Breaking Load Cable 34kN 51kN
Mounting Console, 4 x M12 Class 8.8 Console, 4 x M12 Class 8.8
Weight 27kg 27.5kg

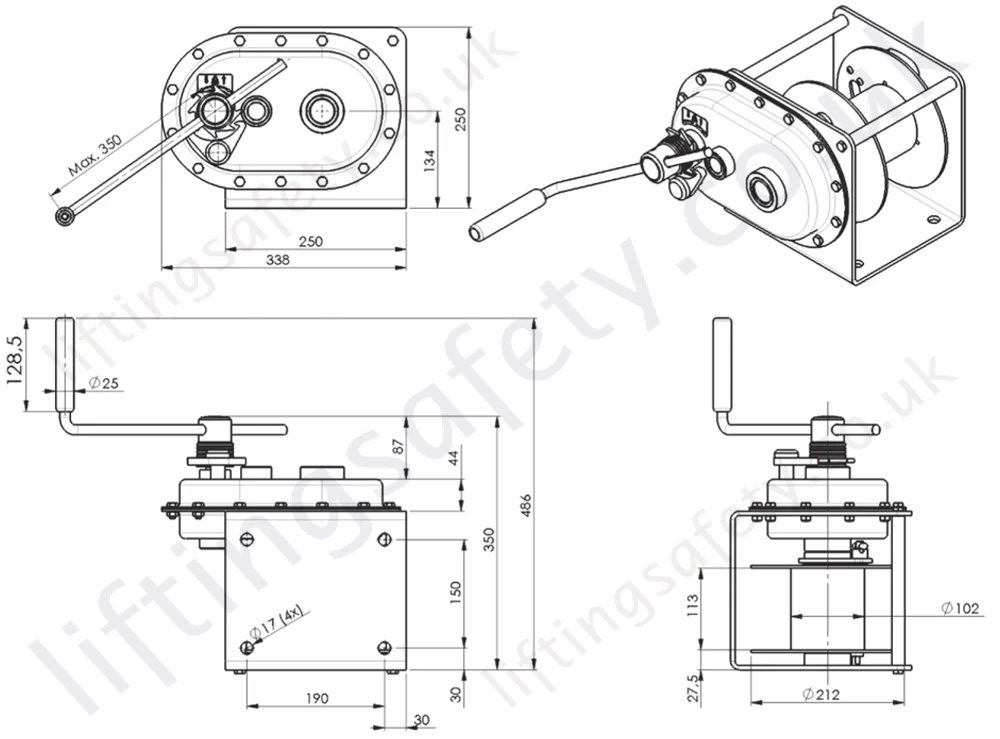

Dimensional Information

Spur Gear Winch
