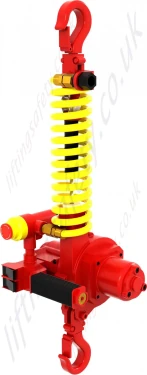

LiftingSafety Bench Handling, Hook Suspension Pneumatic Hoist, Capacity 140kg

140kg Tool Handling Air Hoist. Ideal for Work Benches and Small Applications.

Model:

PBHH-5093


Standard Features

  • Toku rotary vane motor.
  • Handle mounted pendant for one handed operation.
  • Failsafe automatic internal disc brake.
  • Variable speed.
  • self winding galvanised cable.
  • Internal silencing down to 83dB(A).
  • alloy safety swivel hooks c/w safety catch.

Available Options

  • Special paint.
  • Air service units

Specifications

WLL 140 kg
CHAIN FALLS 1 (cable)
LIFTING SPEED FULL LOAD 11.0 m/min
LIFTING SPEED WITHOUT LOAD 15.0 m/min
MAX AIR CONSUMPTION (L/SEC) 8
WORKING PRESSURE 6 Bar
AIR CONNECTION 3/8" BSP
MINIMUM HOSE DIA. 1/2"
WEIGHT 9.5 kg

Hoist Dimensions & Specifications will be uploaded here soon..... if in the mean time if you do require these or any further information Contact us confirming the Model (in the little red box above) and Capacity and we will happily send what you need.....Thank you.

The Sales Team

Standard Features

  • Toku rotary vane motor.
  • Handle mounted pendant for one handed operation.
  • Failsafe automatic internal disc brake.
  • Variable speed.
  • self winding galvanised cable.
  • Internal silencing down to 83dB(A).
  • alloy safety swivel hooks c/w safety catch.

Available Options

  • Special paint.
  • Air service units

Specifications

WLL 140 kg
CHAIN FALLS 1 (cable)
LIFTING SPEED FULL LOAD 11.0 m/min
LIFTING SPEED WITHOUT LOAD 15.0 m/min
MAX AIR CONSUMPTION (L/SEC) 8
WORKING PRESSURE 6 Bar
AIR CONNECTION 3/8" BSP
MINIMUM HOSE DIA. 1/2"
WEIGHT 9.5 kg

Hoist Dimensions & Specifications will be uploaded here soon..... if in the mean time if you do require these or any further information Contact us confirming the Model (in the little red box above) and Capacity and we will happily send what you need.....Thank you.

The Sales Team
