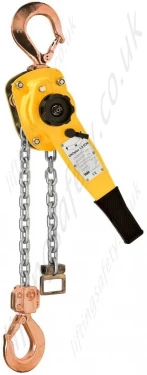

Yale "UNO Plus SR" Atex, Ratchet Lever Hoist. Spark and Corrosion Resistant - Pull-Lift Range from 750kg to 6000kg

Spark resistant and corrosion resistant hand lever hoist.

Model:

UNOplusSR / YUSA-3720


The Yale UNOplus has been developed thanks to further technical development, which has created a hoist to superseeded Yale's proven UNO Lever Hoist.

This versatile tool which can be used for lifting, pulling and securing of loads is characterised by its compact design and robust stamped steel construction.

Features

  • Minimum effort is required to operate the short hand lever due to optimized gearing and improved bearings in the housing cover.
  • Steel hand wheel as standard.
  • Automatic screw-and-disc type load brake with corrosion protected components.
  • Standard free chaining device to quickly attach the load or to pull the chain through the hoist in both directions.
  • Robust chain guide rollers eliminate fouling and jamming of chain on the load sheave.
  • Sturdy bottom hook block with encapsulated bolt connections.
  • Alloyed steel link chain in accordance with national and international standards and regulations.
  • Drop forged suspension and load hooks are made from non-aging, high tensile steel and fitted with robust safety latches.
  • Available with BASIC ATEX protection only.

Yale ATEX Levels of Protection

All of Yale’s ATEX hoists meet the following standards: EN1127-1:1997; EN13463-1:2001; EN13463-5:2003, and are supplied complete with the relevant ATEX approval documentation.

Yale (Columbus McKinnon) offer three levels of protection - BASIC, MEDIUM, and HIGH.

Under directive 94/9/EC, equipment for areas with an explosion hazard are assigned to groups, categories and temperature classes. This is necessary as the requirements for equipment need not be the same for every application and for every hazard classification.

NB: It is the responsibility of the end user to identify the explosion proof classification required, NOT the hoist manufacturer or the supplier. Reference Directive 99/92/EC.

BASIC

ATEX II 3 GD c IIB T4 (Zone 2/22)

MEDIUM

ATEX II 2 GD c IIB T4 (Zone 1/21 & 2/22)

HIGH

ATEX II 2 GD c IIC T4 (Zone 1/21 & 2/22)

  • Unit special coated.
  • Load chain galvanic zinc-plated, stainless steel hand chain.
  • Top hook and load hook special coated.
  • Trolleys special coated with buffers.
  • Plain roller special coated.
  • Unit special coated.
  • Load chain galvanic zinc-plated, stainless steel hand chain.
  • Top hook and load hook copper plated.
  • Trolleys special coated with buffers.
  • Bronze plain roller.
  • Unit special coated.
  • Stainless steel load and hand chain (Capacity reduction may apply).
  • Top hook and load hook copper plated.
  • Trolleys special coated with buffers.
  • Bronze plain roller.

Why explosion protection?

Explosion protection for electrical and mechanical machinery is an important precautionary measure to ensure the safety of persons and all kinds of production, storage and distribution systems, when explosive mixtures of combustible gases, dusts and air may occur.

What does explosion protection achieve?

Explosion protection can mean to generally prevent the ignition of an explosive mixture. Explosion protection can also be achieved by eliminating potential ignition sources in advance, e.g. high temperatures and sparking. In many trades and industries, combustible gases, vapours and dusts are handled which have the potential to cause explosions.

Examples of explosion hazards in various industries

  • Chemical industry
  • Waste disposal sites
  • Energy production companies
  • Waste management companies
  • Gas suppliers
  • Metal processing companies
  • Wood-processing companies
  • Paint shops
  • Agriculture
  • Food and feed-stuffs industry
  • Pharmaceutical industry
  • Refineries
  • Recycling companies

Technical data

Model EAN-No. 4025092* Capacity (kg) Number of chain falls Chain dimension d x p (mm) Lift with one full lever turn (mm) Angle pull at WLL (daN) Weight of standerd lift (1.5) (kg)
UNOplus ATEX 750 *168342 750 1 6 X 18 20 20 7.2
UNOplus ATEX 1500 *168359 1500 1 8 X 24 22 35 12.5
UNOplus ATEX 3000 *168366 3000
1 10 X 30 17 40 21.5
UNOplus ATEX 6000 *168380 6000 2 10 X 30 9 40 32.0

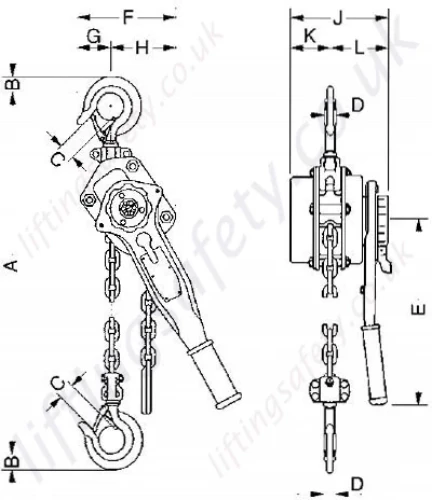

Dimensions

Model UNOplus ATEX 750 UNOplus ATEX 1500 UNOplus ATEX 3000 UNOplus ATEX 6000 Dimensional Drawing
A (mm) 320 410 510 690 UNOplus Dimensional Drawing
B (mm) 22 28 36 45
C (mm) 26 32 40 44
D (mm) 16 21 27 33
E (mm) 250 330 380 380
F (mm) 150 170 220 220
G (mm) 70 80 100 100
H (mm) 80 90 120 120
J (mm) 150 180 210 210
K (mm) 60 80 90 90
L (mm) 90 100 120 120

Yale UNOplus Ratchet Lever Hoist - ATEX. Capacities 0.75t to 6.0t

Yale Atex Lever Hoist Dimensions
  UNOplus ATEX 750 UNOplus ATEX 1500 UNOplus ATEX 3000 UNOplus ATEX 6000
A min. (mm) 340 410 510 690
B (mm) 22 28 36 45
C (mm) 26 32 40 44
D (mm) 16 21 27 33
E (mm) 250 330 380 380
F (mm) 150 170 220 220
G (mm) 70 80 100 100
H (mm) 80 90 120 120
I (mm) 150 180 210 210
K (mm) 60 80 90 90
L (mm) 90 100 120 120
No. of Chain Falls  1 1 1 2
Chain Dims. (mm)  6 x 18 8 x 24 10 x 30 10 x 30
Load Chain Grade  T T T T
Weight @ 1.5m HOL (kg)  7.2 12.5 21.5 32.0
Yale information on explosion protection.pdf

Yale information on explosion protection

(approx. 1.0Mb)

The Yale UNOplus has been developed thanks to further technical development, which has created a hoist to superseeded Yale's proven UNO Lever Hoist.

This versatile tool which can be used for lifting, pulling and securing of loads is characterised by its compact design and robust stamped steel construction.

Features

  • Minimum effort is required to operate the short hand lever due to optimized gearing and improved bearings in the housing cover.
  • Steel hand wheel as standard.
  • Automatic screw-and-disc type load brake with corrosion protected components.
  • Standard free chaining device to quickly attach the load or to pull the chain through the hoist in both directions.
  • Robust chain guide rollers eliminate fouling and jamming of chain on the load sheave.
  • Sturdy bottom hook block with encapsulated bolt connections.
  • Alloyed steel link chain in accordance with national and international standards and regulations.
  • Drop forged suspension and load hooks are made from non-aging, high tensile steel and fitted with robust safety latches.
  • Available with BASIC ATEX protection only.

Yale ATEX Levels of Protection

All of Yale’s ATEX hoists meet the following standards: EN1127-1:1997; EN13463-1:2001; EN13463-5:2003, and are supplied complete with the relevant ATEX approval documentation.

Yale (Columbus McKinnon) offer three levels of protection - BASIC, MEDIUM, and HIGH.

Under directive 94/9/EC, equipment for areas with an explosion hazard are assigned to groups, categories and temperature classes. This is necessary as the requirements for equipment need not be the same for every application and for every hazard classification.

NB: It is the responsibility of the end user to identify the explosion proof classification required, NOT the hoist manufacturer or the supplier. Reference Directive 99/92/EC.

BASIC

ATEX II 3 GD c IIB T4 (Zone 2/22)

MEDIUM

ATEX II 2 GD c IIB T4 (Zone 1/21 & 2/22)

HIGH

ATEX II 2 GD c IIC T4 (Zone 1/21 & 2/22)

  • Unit special coated.
  • Load chain galvanic zinc-plated, stainless steel hand chain.
  • Top hook and load hook special coated.
  • Trolleys special coated with buffers.
  • Plain roller special coated.
  • Unit special coated.
  • Load chain galvanic zinc-plated, stainless steel hand chain.
  • Top hook and load hook copper plated.
  • Trolleys special coated with buffers.
  • Bronze plain roller.
  • Unit special coated.
  • Stainless steel load and hand chain (Capacity reduction may apply).
  • Top hook and load hook copper plated.
  • Trolleys special coated with buffers.
  • Bronze plain roller.

Why explosion protection?

Explosion protection for electrical and mechanical machinery is an important precautionary measure to ensure the safety of persons and all kinds of production, storage and distribution systems, when explosive mixtures of combustible gases, dusts and air may occur.

What does explosion protection achieve?

Explosion protection can mean to generally prevent the ignition of an explosive mixture. Explosion protection can also be achieved by eliminating potential ignition sources in advance, e.g. high temperatures and sparking. In many trades and industries, combustible gases, vapours and dusts are handled which have the potential to cause explosions.

Examples of explosion hazards in various industries

  • Chemical industry
  • Waste disposal sites
  • Energy production companies
  • Waste management companies
  • Gas suppliers
  • Metal processing companies
  • Wood-processing companies
  • Paint shops
  • Agriculture
  • Food and feed-stuffs industry
  • Pharmaceutical industry
  • Refineries
  • Recycling companies

Technical data

Model EAN-No. 4025092* Capacity (kg) Number of chain falls Chain dimension d x p (mm) Lift with one full lever turn (mm) Angle pull at WLL (daN) Weight of standerd lift (1.5) (kg)
UNOplus ATEX 750 *168342 750 1 6 X 18 20 20 7.2
UNOplus ATEX 1500 *168359 1500 1 8 X 24 22 35 12.5
UNOplus ATEX 3000 *168366 3000
1 10 X 30 17 40 21.5
UNOplus ATEX 6000 *168380 6000 2 10 X 30 9 40 32.0

Dimensions

Model UNOplus ATEX 750 UNOplus ATEX 1500 UNOplus ATEX 3000 UNOplus ATEX 6000 Dimensional Drawing
A (mm) 320 410 510 690 UNOplus Dimensional Drawing
B (mm) 22 28 36 45
C (mm) 26 32 40 44
D (mm) 16 21 27 33
E (mm) 250 330 380 380
F (mm) 150 170 220 220
G (mm) 70 80 100 100
H (mm) 80 90 120 120
J (mm) 150 180 210 210
K (mm) 60 80 90 90
L (mm) 90 100 120 120

Yale UNOplus Ratchet Lever Hoist - ATEX. Capacities 0.75t to 6.0t

Yale Atex Lever Hoist Dimensions
  UNOplus ATEX 750 UNOplus ATEX 1500 UNOplus ATEX 3000 UNOplus ATEX 6000
A min. (mm) 340 410 510 690
B (mm) 22 28 36 45
C (mm) 26 32 40 44
D (mm) 16 21 27 33
E (mm) 250 330 380 380
F (mm) 150 170 220 220
G (mm) 70 80 100 100
H (mm) 80 90 120 120
I (mm) 150 180 210 210
K (mm) 60 80 90 90
L (mm) 90 100 120 120
No. of Chain Falls  1 1 1 2
Chain Dims. (mm)  6 x 18 8 x 24 10 x 30 10 x 30
Load Chain Grade  T T T T
Weight @ 1.5m HOL (kg)  7.2 12.5 21.5 32.0
Yale information on explosion protection.pdf

Yale information on explosion protection

(approx. 1.0Mb)

Pricing

ATEX Level ?
Capacity
Height of Lift (m) ?
@ £12.00 (min:1.5) (1.5 included in price)
Quantity
Unit Price

£335.00
