Tractel TOPAL PBM Adjustable Single Lifting Beams Pal-Beam Upper Hook By Central Ring - Range from 1000kg to 6000kg

Adjustable Single Lifting Beams.

Model:

TTP-3333


Description

+

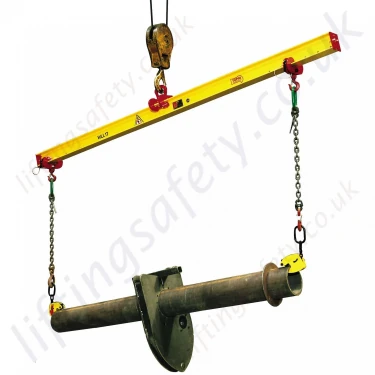

PBF and PEF standard fixed single beam spreader* or PBM and PEM adjustable single beam spreader, for suspension from above via a central ring, fitted with two separate compensating beams for new lifting possibilities with tilting of the beam and/or the compensating beams.

  • Lifting with compensating beams providing symmetrical or asymmetrical traction, slanting inwards or outwards (max. angle 15°).
  • Lifting with the beam tilted at 6° from horizontal: - Vertical traction with symmetrical compensating beams. - Slanting traction with asymmetrical compensating beams.

Specifications

Capacity (kg) L useful length (mm) min / max Model
1000 1000 PBMA1-A
1001 / 1500 PBMA1-B
1501 / 1999 PBMA1-C
2000 PBMA1-D
2001 / 2500 PBMA1-E
2501 / 2999 PBMA1-F
3000 PBMA1-G
3001 / 3500 PBMB1-H
3501 / 3999 PBMB1-I
4000 PBMB1-J
2000 1000 PBMA2-A
1001 / 1500 PBMB2-B
1501 / 1999 PBMB2-C
2000 PBMB2-D
2001 / 2500 PBMB2-E
2501 / 2999 PBMB2-F
3000 PBMB2-G
3001 / 3500 PBMC2-H
3501 / 3999 PBMC2-I
4000 PBMC2-J
3000 1000 PBMB3-A
1001 / 1500 PBMB3-B
1501 / 1999 PBMB3-C
2000 PBMB3-D
2001 / 2500 PBMC3-E
2501 / 2999 PBMC3-F
3000 PBMC3-G
3001 / 3500 PBMD3-H
3501 / 3999 PBMD3-I
4000 PBMD3-J
4000 1000 PBMC4-A
1001 / 1500 PBMC4-B
1501 / 1999 PBMC4-C
2000 PBMC4-D
2001 / 2500 PBMD4-E
2501 / 2999 PBMD4-F
3000 PBMD4-G
3001 / 3500 PBME4-H
3501 / 3999 PBME4-I
4000 PBME4-J
5000 1000 PBMD5-A
1001 / 1500 PBMD5-B
1501 / 1999 PBMD5-C
2000 PBMD5-D
2001 / 2500 PBME5-E
2501 / 2999 PBME5-F
3000 PBME5-G
3001 / 3500 PBME5-H
3501 / 3999 PBME5-I
4000 PBME5-J
Downloads

+
PBF-PBM-Lifting-Beam-Tech-Sheet.pdf

Product Datasheet

Covers both the PBM (adjustable) and the PBF (fixed) range of lifting beams
(approx. 0.2Mb)
