Stainless Steel Electric Lift & Tilting Pallet Lifter, Capacity 1000kg

• Suitable for the food and pharmaceutical industries where hygiene is of great importance.
• Ergonomically designed handle.
• Adjustable working height when tilted.
• The handle can be turned to the side and locked to allow the user easy access to the crate/box contents.
• Tilting function operated by remote control.
• Tilting angle can be adjusted during filling and emptying operation.
• The tilting degree can be set so that the tilter stops automatically at the same angle each time.
• Designed with foot protectors and parking brake.
• Safety valve and emergency stop ensures safe operation.

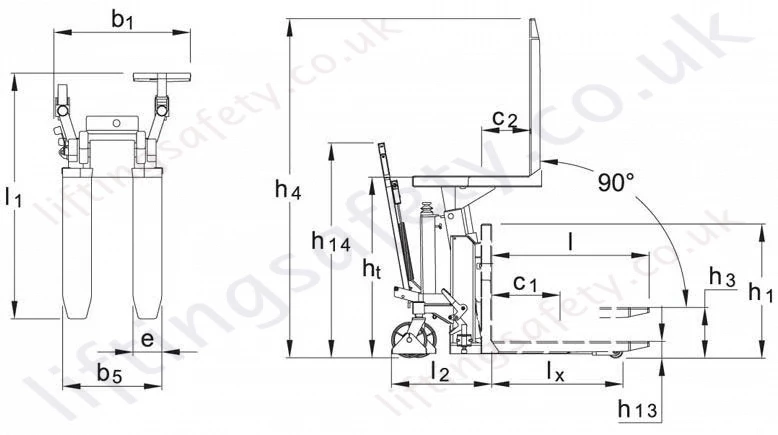

Dimensions & Specifications

Capacity		1000 kg
Load Centre	c1	max. l/2
Load Centre	c2	min. 200 - max. 420
Height, Tilted	ht	750 - 950 mm
Lifting Height	h3	275 mm
Fork Length	l	800 mm
Overall Height with Handle	h14	1090 mm
Overall Height	h1	680 mm
Overall Width	b1	780 mm
Width over Forks	b5	560 mm
Individual Fork Width	e	163 mm
Overall Length by 800 mm Forks	l1	1410 mm
Length without Forks	l2	590 mm
Run-in Length	lx	665 mm
Overall Height of Forks at Max. Tilt	h4	ht + l
Lowered Height	h13	85 mm
Pump Motor		0.8 kW 12V
Lifting Speed - Lift/Tilt		4 s / 14 s
Lowering Speed - Lift/Tilt		3 s / 11 s
Battery		12V / 70Ah
Weight by 800 mm Forks (with battery)		173 kg
