Nappy Pins / Safety Pins / Retaining Pins

Available in Carbon Steel or Stainless Steel

Model:

NSP-5127


  • Specials available against a production quantity demand.

Dimensions

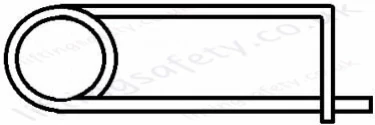

Nappy Pin Dimensions

Dimensions in mm  Carbon Steel  Stainless Steel
A: Internal Length B: Wire Dia. C: Overall Length D: Eye Dia.
20 1.6 44 14 Yes Yes
20 2 45 14 Yes
24 1.6 41 8   Yes
30 2 61 20 Yes
30 2.6 66 22 Yes
31 1.2 50 8 Yes
40 2.6 80 26 Yes Yes
40 3.3 85 27 Yes Yes
44 1.6 68 14 Yes Yes
44 2 76 22 Yes Yes
45 2.3 73 16 Yes
50 4 99 25   Yes
50 4.5 108 36 Yes
55 3 87 17 Yes Yes
56 3 96 24 Yes Yes
60 5 125 40 Yes
64 3 112 32 Yes Yes
76 3.7 130 35 Yes Yes
95 4.5 156 38 Yes Yes
112 6 175 35 Yes





Material
Part N° Wire Dia. (mm) Overall Length (mm) Guide Price Quantity
5127-T26362 1.6 44 Quote Required
5127-T26363 2 45 Quote Required
5127-T26364 2 61 Quote Required
5127-T26365 2.6 66 Quote Required
5127-T26366 1.2 50 Quote Required
5127-T26367 2.6 80 Quote Required
5127-T26368 3.3 85 Quote Required
5127-T26369 1.6 68 Quote Required
5127-T26370 2 76 Quote Required
5127-T26371 2.3 73 Quote Required
5127-T26372 4.5 108 Quote Required
5127-T26373 3 87 Quote Required
5127-T26374 3 96 Quote Required
5127-T26375 5 125 Quote Required
5127-T26376 3 112 Quote Required
5127-T26377 3.7 130 Quote Required
5127-T26378 4.5 156 Quote Required
5127-T26379 6 175 Quote Required
Add to Quote Basket   ?
  • Specials available against a production quantity demand.

Dimensions

Nappy Pin Dimensions

Dimensions in mm  Carbon Steel  Stainless Steel
A: Internal Length B: Wire Dia. C: Overall Length D: Eye Dia.
20 1.6 44 14 Yes Yes
20 2 45 14 Yes
24 1.6 41 8   Yes
30 2 61 20 Yes
30 2.6 66 22 Yes
31 1.2 50 8 Yes
40 2.6 80 26 Yes Yes
40 3.3 85 27 Yes Yes
44 1.6 68 14 Yes Yes
44 2 76 22 Yes Yes
45 2.3 73 16 Yes
50 4 99 25   Yes
50 4.5 108 36 Yes
55 3 87 17 Yes Yes
56 3 96 24 Yes Yes
60 5 125 40 Yes
64 3 112 32 Yes Yes
76 3.7 130 35 Yes Yes
95 4.5 156 38 Yes Yes
112 6 175 35 Yes





Material
Part N° Wire Dia. (mm) Overall Length (mm) Guide Price Quantity
5127-T26362 1.6 44 Quote Required
5127-T26363 2 45 Quote Required
5127-T26364 2 61 Quote Required
5127-T26365 2.6 66 Quote Required
5127-T26366 1.2 50 Quote Required
5127-T26367 2.6 80 Quote Required
5127-T26368 3.3 85 Quote Required
5127-T26369 1.6 68 Quote Required
5127-T26370 2 76 Quote Required
5127-T26371 2.3 73 Quote Required
5127-T26372 4.5 108 Quote Required
5127-T26373 3 87 Quote Required
5127-T26374 3 96 Quote Required
5127-T26375 5 125 Quote Required
5127-T26376 3 112 Quote Required
5127-T26377 3.7 130 Quote Required
5127-T26378 4.5 156 Quote Required
5127-T26379 6 175 Quote Required
Add to Quote Basket   ?
