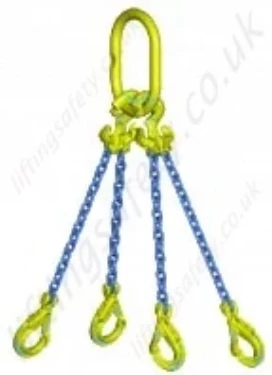

Gunnebo TG4-GBK ready made four leg chain slings with unique master rings, couplers and sling safety hooks.

Part no	WLL α 90°-120°	WLL α 0°-90°	Master link	Chain	Coupling	Hook	Weight kgs/eff.lengtd 2m	Chain weight kg/m	Comp.lengtd mm
TG4-GBK 6 mm	3.1	2.2	MF-108-10	KLA-6-10	CGD-6-10	GBK-6-10	10.5	4.0	311
TG4-GBK 8 mm	5.2	3.7	MF-1310-10	KLA-8-10	CGD-8-10	GBK-8-10	17.1	6.8	392
TG4-GBK 10 mm	8.4	6.0	MF-1613-10	KLA-10-10	CGD-10-10	GBK-10-10	29.6	10.8	474
TG4-GBK 13 mm	14.0	10.0	MF-2016-10	KLA-13-10	CGD-13-10	GBK-13-10	51.6	17.6	604
TG4-GBK 16 mm	21.0	15.0	MF-2220-10	KLA-16-10	CGD-16-10	GBK-16-10	78.4	26.8	680
TG4-GBK 20 mm	33.6	24.0	MTC-20-10	KLA-20-10	G/GG-20-10	BKG-20-10	175.0	37.6	665

MF Master Link	MTC Master Link	KLA Chain	CGD Coupling	G Coupling	GG Grab Hook	GBK Safety Hook	BKG Safety Hook

Individual Components

Below you can find the individual specifications of the three components that make up a GrabiQ TG4-GBK Chain Sling.

MF Master Link

The top suspended master link.

Code	WLL t		For chain mm, 1-leg	L	E	D	Weight kgs
MF-6-10	1.25		6	100	60	11
MF-86-10	2.5		6, 8	125	70	14	0.43
MF-108-10	4		10	140	80	17	0.75
MF-1310-10	7.5		13	160	95	22	1.47
MF-1613-10	10		16	190	110	28	2.8
MF-2016-10	17		20	240	140	34	5.24
MF-2220-10	25		20	250	150	40	7

MTC Master Link

Code	WLL t		L1	L	E	D	(l)	b	d	Weight kgs
MTC-6-10	3.15		210	150	90	19	60	38	13	1.4
MTC-8-10	5.2		230	160	95	22	70	46	16	2.3
MTC-10-10	8.4		290	200	120	30	90	60	19	5
MTC-13-10	14.1		380	240	140	34	140	65	28	8.3

KLA Grade 10 Chain

Heat Treatment: Hardened and tempered.
Note! For chain grade 10 the maximum in service temperature is 200°C.
Surface treatment: Blue painted.
Marking: 10G.

Code	WLL (t)	Chain Ø (mm)		L (mm)	E (mm)	Weight (kg)	MPF	Breaking force (kN)
KLA-6-10	1.5	6		18	8	0.842	37	60
KLA-8-10	2.5	8		24	11	1.45	62.5	100
KLA-10-10	4	10		30	14	2.25	100	160
KLA-13-10	6.7	13		39	18	3.76	162	260
KLA-16-10	10	16		48	22	5.64	250	402
KLA-20-10	16	20		60	29	9.4	393	630

C-grab Duo CGD Coupling Hook

For use with Master Links, all GrabiQ C connectors can be equipped with quickpin.

Code	WLL t		L	B	E	H	Weight kgs
CGD-6-10	2.1		79	11	24	22	0.55
CGD-8-10	3.5		107	12	32	29	1.11
CGD-10-10	5.6		134	15	40	37	2.21
CGD-13-10	9.5		173	19	48	48	5.6
CGD-16-10	14		215	22	64	57	9.6

G Coupling Hook

Code	WLL t		L	E	F	C	Weight kgs
G-6-10	1.5		45	15	8	16	0.09
G-8-10	2.5		56	18	9	22	0.17
G-10-10	4		68	25	12	26	0.32
G-13-10	6.7		89	29	15	33	0.68
G-16-10	10		106	36	19	40	1.35
G-20-10	16		125	43	26	44	2.6

GG Coupling Hook

Code	WLL t		L	B	Weight kgs
GG-8-10	2.5		57	10.5	0.4
GG-10-10	4		76	12	0.88
GG-13-10	6.7		97	16	1.85
GG-16-10	10		124	20	3.1
GG-20-10	16		147	26	7

GBK Safety Hook

Code	WLL t		L	B	G	H	Weight kgs
GBK-6-10	1.5		87	26	15	17	0.4
GBK-8-10	2.5		119	36	20	22	0.8
GBK-10-10	4		149	47	22	29	1.4
GBK-13-10	6.7		172	53	29	38	2.7
GBK-16-10	10		208	68	30	45	4.4
BKG-20-10	16		240	73	44	65	9.6

BKG Safety Hook

Code	WLL t		L	B	G	H	Weight kgs
BKG- 6-10 Standard trigger	1.5		91	29	15	21	0.44
BKG- 8-10 Standard trigger	2.5		121	37	17	26	0.8
BKG-10-10 Standard trigger	4		144	45	21	30	1.42
BKG-13-10 Standard trigger	6.7		180	55	30	40	2.8
BKG-16-10 Recessed trigger	10		219	62	37	50	5.4
BKG-20-10 Recessed trigger	16		240	68	44	64	9.6

Part N°	WLL α 90°-120°	WLL α 0°-90°	Master link	Chain	Coupling	Hook	Weight kgs/eff.length 2m	Chain weight kg/m	Comp.length mm	Guide Price	Quantity
4018-T8447 TG4-GBK 6mm	3.1	2.2	MF-108-10	KLA-6-10	CGD-6-10	GBK-6-10	10.5	4.0	311	Quote Required
4018-T8448 TG4-GBK 8mm	5.2	3.7	MF-1310-10	KLA-8-10	CGD-8-10	GBK-8-10	17.1	6.8	392	Quote Required
4018-T8449 TG4-GBK 10mm	8.4	6.0	MF-1613-10	KLA-10-10	CGD-10-10	GBK-10-10	29.6	10.8	474	Quote Required
4018-T8450 TG4-GBK 13mm	14.0	10.0	MF-2016-10	KLA-13-10	CGD-13-10	GBK-13-10	51.6	17.6	604	Quote Required
4018-T8451 TG4-GBK 16mm	21	15.0	MF-2220-10	KLA-16-10	CGD-16-10	GBK-16-10	78.4	26.8	680	Quote Required
4018-T8452 TG4-GBK 20mm	33.6	24.0	MT-20-10	KLA-20-10	G/GG-20-10	BKG-20-10	175.0	37.6	665	Quote Required
