Gunnebo GrabiQ "TG4-EGKN" Four Leg Chain Sling with "Master Link MF and EGKN Sling Hook" Range from 2.2t to 33.6t

Gunnebo GrabiQ "TG4-EGKN" Four Leg Chain Sling with "Master Link MF and EGKN Sling Hook" Range from 2.2t to 33.6t

Model:

TG4-EGKN / GGFL-4017

This Page has now expired. Please view our complete range of Chain Slings Assemblies & Components or Contact us with your requirements for a possible suitable alternative.

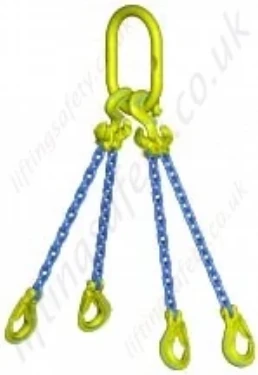

Gunnebo TG4-EGKN ready made four leg chain slings with a unique master ring, coupler and sling safety hook.

Part no	WLL α 0°-90°	WLL α 90°-120°	Master link	Chain	Coupling	Hook	Weight kgs/eff.length 2m	Chain weight kg/m	Comp.length mm
TG4-EGKN 6 mm	3.1	2.2	MF-108-10	KLA-6-10	CGD-6-10	EGKN-6-10	8.3	4.0	306
TG4-EGKN 8 mm	5.2	3.7	MF-1310-10	KLA-8-10	CGD-8-10	EGKN-8-10	14.9	6.8	362
TG4-EGKN 10 mm	8.4	6.0	MF-1613-10	KLA-10-10	CGD-10-10	EGKN-10-10	25.0	10.8	445
TG4-EGKN 13 mm	14.0	10.0	MF-2016-10	KLA-13-10	CGD-13-10	EGKN-13-10	46.4	17.6	558
TG4-EGKN 16 mm	21.0	15.0	MF-2220-10	KLA-16-10	CGD-16-10	EGKN-16-10	72.3	26.8	635
TG4-EGKN 20 mm	33.6	24.0	MT-20-10	KLA-20-10	G/GG-20-10	EGKN-20-10	157.2	37.6	884
