Gunnebo GrabiQ "TG3-GBK" Three Leg Chain Sling with "Master Link MF and GBK Sling Hook" Range from 2.2t to 33.6t

Gunnebo GrabiQ "TG3-GBK" Three Leg Chain Sling with "Master Link MF and GBK Sling Hook" Range from 2.2t to 33.6t

Model:

GGTL-4016

Gunnebo GrabiQ "TG3-GBK" Three Leg Chain Sling with "Master Link MF and GBK Sling Hook" Range from 2.2t to 33.6t

Grabiq TG3 GBK GrabiQ MF Master Link GrabiQ MT Master Ring C Grab Duo CGD GrabiQ GrabiQ CG C Grab GrabiQ G GrabiQ GG GrabiQ GBK Safety Hook GrabiQ BKG Safety Hook Gunnebo GrabiQ KLA Grade 10 Chain

This Page has now expired. Please view our complete range of Chain Slings Assemblies & Components or Contact us with your requirements for a possible suitable alternative.

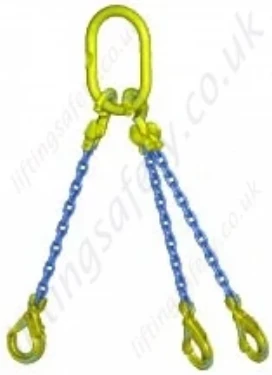

Gunnebo TG3-GBK ready made three leg chain slings with a unique master ring, coupler and sling safety hook.

Part no WLL α 0°-90° WLL α 90°-120° Master link Chain Coupling Hook Weight kgs/eff.lengtd 2m Chain weight kg/m Comp.lengtd mm
TG3-GBK 6 mm 3.1 2.2 MF-108-10 KLA-6-10 CGD/CG-6-10 GBK-6-10 7.0 3.0 307
TG3-GBK 8 mm 5.2 3.7 MF-1310-10 KLA-8-10 CGD/CG-8-10 GBK-8-10 12.5 5.1 386
TG3-GBK 10 mm 8.4 6.0 MF-1613-10 KLA-10-10 CGD/CG-10-10 GBK-10-10 20.7 8.1 474
TG3-GBK 13 mm 14.0 10.0 MF-2016-10 KLA-13-10 CGD/CG-13-10 GBK-13-10 38.4 13.2 585
TG3-GBK 16 mm 21.0 15.0 MF-2220-10 KLA-16-10 CGD/CG-16-10 GBK-16-10 58.3 20.1 673
TG3-GBK 20 mm 33.6 24.0 MT-20-10 KLA-20-10 G/GG-20-10 BKG-20-10 131.8 28.2 915
Grabiq Mf Master Link

MF Master Link

Grabiq Mt

MT Master Link

Gunnebo Grabiq Kla Grade 10 Chain

KLA Chain

C Grab Duo Cgd Grabiq

CGD Coupling

Grabiq Cg C Grab

CG Coupling

Grabiq Gg

GG Coupling

Grabiq G

G Coupling

Safety Hook

GBK Hook

Grabiq Bkg Safety Hook

BKG Hook

Individual Components

Below you can find the individual specifications of the three components that make up a GrabiQ TG3-GBK Chain Sling.

MF Master Link

The top suspended master link.

Code WLL t
Grabiq Mf Master Link Dimensions
 For chain mm, 1-leg L E D Weight kgs
MF-6-10 1.25 6 100 60 11
MF-86-10 2.5 6, 8 125 70 14 0.43
MF-108-10 4 10 140 80 17 0.75
MF-1310-10 7.5 13 160 95 22 1.47
MF-1613-10 10 16 190 110 28 2.8
MF-2016-10 17 20 240 140 34 5.24
MF-2220-10 25 20 250 150 40 7

MT Master Link

Code WLL t
Grabiq Mt Dimensions
 L1 L E D (l) b d Weight kgs
MT-6-10 3.5 270 150 90 19 120 70 14 1.755
MT-8-10 5.2 300 160 95 22 140 80 17 2.95
MT-10-10 11.5 360 200 120 30 160 95 22 6.4
MT-13-10 17 450 250 150 40 200 120 30 14.7
MT-16-10 28 500 300 200 50 200 120 32 23
MT-20-10 35 550 300 200 55 250 150 40 32
MT-22-10 53 610 350 200 60 260 140 45 46
MT-26-10 70 730 450 250 70 280 160 50 71
MT-32-10 91 750 450 260 80 280 160 55 90.89

KLA Grade 10 Chain

  • Heat Treatment: Hardened and tempered.
  • Note! For chain grade 10 the maximum in service temperature is 200°C.
  • Surface treatment: Blue painted.
  • Marking: 10G.
Code WLL (t) Chain Ø (mm)
Gunnebo Grabiq Kla Grade 10 Chain Dimensions
 L (mm)
 E (mm)
 Weight (kg) MPF Breaking force (kN)
KLA-6-10 1.5 6 18 8 0.842 37 60
KLA-8-10 2.5 8 24 11 1.45 62.5 100
KLA-10-10 4 10 30 14 2.25 100 160
KLA-13-10 6.7 13 39 18 3.76 162 260
KLA-16-10 10 16 48 22 5.64 250 402
KLA-20-10 16 20 60 29 9.4 393 630

C-grab Duo CGD Coupling Hook

For use with Master Links, all GrabiQ C connectors can be equipped with quickpin.

Code WLL t
C Grab Duo Cgd Grabiq Dimensions
 L B E H Weight kgs
CGD-6-10 2.1 79 11 24 22 0.55
CGD-8-10 3.5 107 12 32 29 1.11
CGD-10-10 5.6 134 15 40 37 2.21
CGD-13-10 9.5 173 19 48 48 5.6
CGD-16-10 14 215 22 64 57 9.6

CG Coupling Hook

For use with master link, eye hooks and choke. All GrabiQ C-connectors can be equipped with QuickPin.
Code WLL t
Grabiq Cg C Grab Dimensions
 L B E H Weight kgs
CG-6-10 1.5 80 11 24 19 0.344
CG-8-10 2.5 107 12 32 24 0.734
CG-10-10 4 134 15 40 29 1.466
CG-13-10 6.7 172 18 52 38 3.15
CG-16-10 10 215 22 64 47 6.2

G Coupling Hook

Code WLL t
Grabiq G Dimensions
 L E F C Weight kgs
G-6-10 1.5 45 15 8 16 0.09
G-8-10 2.5 56 18 9 22 0.17
G-10-10 4 68 25 12 26 0.32
G-13-10 6.7 89 29 15 33 0.68
G-16-10 10 106 36 19 40 1.35
G-20-10 16 125 43 26 44 2.6

GG Coupling Hook

Code WLL t
Grabiq Gg Dimensions
 L B Weight kgs
GG-8-10 2.5 57 10.5 0.4
GG-10-10 4 76 12 0.88
GG-13-10 6.7 97 16 1.85
GG-16-10 10 124 20 3.1
GG-20-10 16 147 26 7

GBK Safety Hook

Code WLL t
Safety Hook Dimensions
 L B G H Weight kgs
GBK-6-10 1.5 87 26 15 17 0.4
GBK-8-10 2.5 119 36 20 22 0.8
GBK-10-10 4 149 47 22 29 1.4
GBK-13-10 6.7 172 53 29 38 2.7
GBK-16-10 10 208 68 30 45 4.4
BKG-20-10 16 240 73 44 65 9.6

Unfortunately, this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.

Contact Us About This Product
Description

This Page has now expired. Please view our complete range of Chain Slings Assemblies & Components or Contact us with your requirements for a possible suitable alternative.

Gunnebo TG3-GBK ready made three leg chain slings with a unique master ring, coupler and sling safety hook.

Part no WLL α 0°-90° WLL α 90°-120° Master link Chain Coupling Hook Weight kgs/eff.lengtd 2m Chain weight kg/m Comp.lengtd mm
TG3-GBK 6 mm 3.1 2.2 MF-108-10 KLA-6-10 CGD/CG-6-10 GBK-6-10 7.0 3.0 307
TG3-GBK 8 mm 5.2 3.7 MF-1310-10 KLA-8-10 CGD/CG-8-10 GBK-8-10 12.5 5.1 386
TG3-GBK 10 mm 8.4 6.0 MF-1613-10 KLA-10-10 CGD/CG-10-10 GBK-10-10 20.7 8.1 474
TG3-GBK 13 mm 14.0 10.0 MF-2016-10 KLA-13-10 CGD/CG-13-10 GBK-13-10 38.4 13.2 585
TG3-GBK 16 mm 21.0 15.0 MF-2220-10 KLA-16-10 CGD/CG-16-10 GBK-16-10 58.3 20.1 673
TG3-GBK 20 mm 33.6 24.0 MT-20-10 KLA-20-10 G/GG-20-10 BKG-20-10 131.8 28.2 915
Grabiq Mf Master Link

MF Master Link

Grabiq Mt

MT Master Link

Gunnebo Grabiq Kla Grade 10 Chain

KLA Chain

C Grab Duo Cgd Grabiq

CGD Coupling

Grabiq Cg C Grab

CG Coupling

Grabiq Gg

GG Coupling

Grabiq G

G Coupling

Safety Hook

GBK Hook

Grabiq Bkg Safety Hook

BKG Hook

Individual Components

Individual Components

Below you can find the individual specifications of the three components that make up a GrabiQ TG3-GBK Chain Sling.

MF Master Link

The top suspended master link.

Code WLL t
Grabiq Mf Master Link Dimensions
 For chain mm, 1-leg L E D Weight kgs
MF-6-10 1.25 6 100 60 11
MF-86-10 2.5 6, 8 125 70 14 0.43
MF-108-10 4 10 140 80 17 0.75
MF-1310-10 7.5 13 160 95 22 1.47
MF-1613-10 10 16 190 110 28 2.8
MF-2016-10 17 20 240 140 34 5.24
MF-2220-10 25 20 250 150 40 7

MT Master Link

Code WLL t
Grabiq Mt Dimensions
 L1 L E D (l) b d Weight kgs
MT-6-10 3.5 270 150 90 19 120 70 14 1.755
MT-8-10 5.2 300 160 95 22 140 80 17 2.95
MT-10-10 11.5 360 200 120 30 160 95 22 6.4
MT-13-10 17 450 250 150 40 200 120 30 14.7
MT-16-10 28 500 300 200 50 200 120 32 23
MT-20-10 35 550 300 200 55 250 150 40 32
MT-22-10 53 610 350 200 60 260 140 45 46
MT-26-10 70 730 450 250 70 280 160 50 71
MT-32-10 91 750 450 260 80 280 160 55 90.89

KLA Grade 10 Chain

  • Heat Treatment: Hardened and tempered.
  • Note! For chain grade 10 the maximum in service temperature is 200°C.
  • Surface treatment: Blue painted.
  • Marking: 10G.
Code WLL (t) Chain Ø (mm)
Gunnebo Grabiq Kla Grade 10 Chain Dimensions
 L (mm)
 E (mm)
 Weight (kg) MPF Breaking force (kN)
KLA-6-10 1.5 6 18 8 0.842 37 60
KLA-8-10 2.5 8 24 11 1.45 62.5 100
KLA-10-10 4 10 30 14 2.25 100 160
KLA-13-10 6.7 13 39 18 3.76 162 260
KLA-16-10 10 16 48 22 5.64 250 402
KLA-20-10 16 20 60 29 9.4 393 630

C-grab Duo CGD Coupling Hook

For use with Master Links, all GrabiQ C connectors can be equipped with quickpin.

Code WLL t
C Grab Duo Cgd Grabiq Dimensions
 L B E H Weight kgs
CGD-6-10 2.1 79 11 24 22 0.55
CGD-8-10 3.5 107 12 32 29 1.11
CGD-10-10 5.6 134 15 40 37 2.21
CGD-13-10 9.5 173 19 48 48 5.6
CGD-16-10 14 215 22 64 57 9.6

CG Coupling Hook

For use with master link, eye hooks and choke. All GrabiQ C-connectors can be equipped with QuickPin.
Code WLL t
Grabiq Cg C Grab Dimensions
 L B E H Weight kgs
CG-6-10 1.5 80 11 24 19 0.344
CG-8-10 2.5 107 12 32 24 0.734
CG-10-10 4 134 15 40 29 1.466
CG-13-10 6.7 172 18 52 38 3.15
CG-16-10 10 215 22 64 47 6.2

G Coupling Hook

Code WLL t
Grabiq G Dimensions
 L E F C Weight kgs
G-6-10 1.5 45 15 8 16 0.09
G-8-10 2.5 56 18 9 22 0.17
G-10-10 4 68 25 12 26 0.32
G-13-10 6.7 89 29 15 33 0.68
G-16-10 10 106 36 19 40 1.35
G-20-10 16 125 43 26 44 2.6

GG Coupling Hook

Code WLL t
Grabiq Gg Dimensions
 L B Weight kgs
GG-8-10 2.5 57 10.5 0.4
GG-10-10 4 76 12 0.88
GG-13-10 6.7 97 16 1.85
GG-16-10 10 124 20 3.1
GG-20-10 16 147 26 7

GBK Safety Hook

Code WLL t
Safety Hook Dimensions
 L B G H Weight kgs
GBK-6-10 1.5 87 26 15 17 0.4
GBK-8-10 2.5 119 36 20 22 0.8
GBK-10-10 4 149 47 22 29 1.4
GBK-13-10 6.7 172 53 29 38 2.7
GBK-16-10 10 208 68 30 45 4.4
BKG-20-10 16 240 73 44 65 9.6
