Gunnebo GrabiQ "TG2-GBK" Twin Leg Chain Sling "Master Link MF and GBK Sling Hook" Range from 1.5t to 22.4t

Model:

TG2-GBK / GGTL-4012


This Page has now expired. Please view our complete range of Chain Slings Assemblies & Components or Contact us with your requirements for a possible suitable alternative.

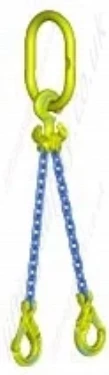

Gunnebo TG2-GBK ready made twin leg chain slings with a unique master ring, coupler and sling safety hook.

Part no WLL α 0°-90° WLL α 90°-120° Master link Chain Coupling Hook Weight kgs/eff.length 2m Chain weight kg/m Comp.length mm
TG2-GBK 6 mm 2.1 1.5 MF-86-10 KLA-6-10 CGD-6-10 GBK-6-10 4.6 2.0 291
TG2-GBK 8 mm 3.5 2.5 MF-108-10 KLA-8-10 CGD-8-10 GBK-8-10 8.4 3.4 366
TG2-GBK 10 mm 5.6 4.0 MF-1310-10 KLA-10-10 CGD-10-10 GBK-10-10 13.6 5.4 444
TG2-GBK 13 mm 9.5 6.7 MF-1613-10 KLA-13-10 CGD-13-10 GBK-13-10 24.3 8.8 535
TG2-GBK 16 mm 14.0 10.0 MF-2016-10 KLA-16-10 CGD-16-10 GBK-16-10 38,7 13.4 663
TG2-GBK 20 mm 22.4 16.0 MF-2220-10 KLA-20-10 G/GG-20-10 BKG-20-10 78.7 18.8 615
      Grabiq Mf Master Link Gunnebo Grabiq Kla Grade 10 Chain C Grab Duo Cgd Grabiq Safety Hook

Individual Components

Below you can find the individual specifications of the three components that make up a GrabiQ TG2-GBK Chain Sling.

MF Master Link

The top suspended master link.

Code WLL t
Grabiq Mf Master Link Dimensions
For chain mm, 1-leg L E D Weight kgs
MF-6-10 1.25 6 100 60 11
MF-86-10 2.5 6, 8 125 70 14 0.43
MF-108-10 4 10 140 80 17 0.75
MF-1310-10 7.5 13 160 95 22 1.47
MF-1613-10 10 16 190 110 28 2.8
MF-2016-10 17 20 240 140 34 5.24
MF-2220-10 25 20 250 150 40 7

GBK Safety Hook

Code WLL t
Safety Hook Dimensions
L B G H Weight kgs
GBK-6-10 1.5 87 26 15 17 0.4
GBK-8-10 2.5 119 36 20 22 0.8
GBK-10-10 4 149 47 22 29 1.4
GBK-13-10 6.7 172 53 29 38 2.7
GBK-16-10 10 208 68 30 45 4.4
BKG-20-10 16 240 73 44 65 9.6

C-grab Duo CGD Coupling Hook

For use with Master Links, all GrabiQ C connectors can be equipped with quickpin.

Code WLL t
C Grab Duo Cgd Grabiq Dimensions
L B E H Weight kgs
CGD-6-10 2.1 79 11 24 22 0.55
CGD-8-10 3.5 107 12 32 29 1.11
CGD-10-10 5.6 134 15 40 37 2.21
CGD-13-10 9.5 173 19 48 48 5.6
CGD-16-10 14 215 22 64 57 9.6

KLA Grade 10 Chain

  • Heat Treatment: Hardened and tempered.
  • Note! For chain grade 10 the maximum in service temperature is 200°C.
  • Surface treatment: Blue painted.
  • Marking: 10G.
Code WLL (t) Chain Ø (mm)
Gunnebo Grabiq Kla Grade 10 Chain Dimensions
L (mm)
E (mm)
Weight (kg) MPF Breaking force (kN)
KLA-6-10 1.5 6 18 8 0.842 37 60
KLA-8-10 2.5 8 24 11 1.45 62.5 100
KLA-10-10 4 10 30 14 2.25 100 160
KLA-13-10 6.7 13 39 18 3.76 162 260
KLA-16-10 10 16 48 22 5.64 250 402
KLA-20-10 16 20 60 29 9.4 393 630
Part N° WLL α 0°-90° WLL α 90°-120° Master Link Chain Coupling Hook Weight in kgwith 2m effective working length Chain weight kg/m Comp.length mm Guide Price Quantity
4012-T8418
TG2-GBK 6mm
2.1 1.5 MF-86-10 KLA-6-10 CGD-6-10 GBK-6-10 4.6 2 291 Quote Required
4012-T8419
TG2-GBK 8mm
3.5 2.5 MF-108-10 KLA-8-10 CGD-8-10 GBK-8-10 8.4 3.4 366 Quote Required
4012-T8420
TG2-GBK 10mm
5.6 4.0 MF-1310-10 KLA-10-10 CGD-10-10 GBK-10-10 13.6 5.4 444 Quote Required
4012-T8421
TG2-GBK 13mm
9.5 6.7 MF-1613-10 KLA-13-10 CGD-13-10 GBK-13-10 24.3 8.8 535 Quote Required
4012-T8422
TG2-GBK 16mm
14.0 10.0 MF-2016-10 KLA-16-10 CGD-16-10 GBK-16-10 38.7 13.4 663 Quote Required
4012-T8423
TG2-GBK 20mm
22.4 16.0 MF-2220-10 KLA-20-10 CGD-20-10 GBK-20-10 78.7 18.8 615 Quote Required
Add to Quote Basket   ?

This Page has now expired. Please view our complete range of Chain Slings Assemblies & Components or Contact us with your requirements for a possible suitable alternative.

Gunnebo TG2-GBK ready made twin leg chain slings with a unique master ring, coupler and sling safety hook.

Part no WLL α 0°-90° WLL α 90°-120° Master link Chain Coupling Hook Weight kgs/eff.length 2m Chain weight kg/m Comp.length mm
TG2-GBK 6 mm 2.1 1.5 MF-86-10 KLA-6-10 CGD-6-10 GBK-6-10 4.6 2.0 291
TG2-GBK 8 mm 3.5 2.5 MF-108-10 KLA-8-10 CGD-8-10 GBK-8-10 8.4 3.4 366
TG2-GBK 10 mm 5.6 4.0 MF-1310-10 KLA-10-10 CGD-10-10 GBK-10-10 13.6 5.4 444
TG2-GBK 13 mm 9.5 6.7 MF-1613-10 KLA-13-10 CGD-13-10 GBK-13-10 24.3 8.8 535
TG2-GBK 16 mm 14.0 10.0 MF-2016-10 KLA-16-10 CGD-16-10 GBK-16-10 38,7 13.4 663
TG2-GBK 20 mm 22.4 16.0 MF-2220-10 KLA-20-10 G/GG-20-10 BKG-20-10 78.7 18.8 615
      Grabiq Mf Master Link Gunnebo Grabiq Kla Grade 10 Chain C Grab Duo Cgd Grabiq Safety Hook

Individual Components

Below you can find the individual specifications of the three components that make up a GrabiQ TG2-GBK Chain Sling.

MF Master Link

The top suspended master link.

Code WLL t
Grabiq Mf Master Link Dimensions
For chain mm, 1-leg L E D Weight kgs
MF-6-10 1.25 6 100 60 11
MF-86-10 2.5 6, 8 125 70 14 0.43
MF-108-10 4 10 140 80 17 0.75
MF-1310-10 7.5 13 160 95 22 1.47
MF-1613-10 10 16 190 110 28 2.8
MF-2016-10 17 20 240 140 34 5.24
MF-2220-10 25 20 250 150 40 7

GBK Safety Hook

Code WLL t
Safety Hook Dimensions
L B G H Weight kgs
GBK-6-10 1.5 87 26 15 17 0.4
GBK-8-10 2.5 119 36 20 22 0.8
GBK-10-10 4 149 47 22 29 1.4
GBK-13-10 6.7 172 53 29 38 2.7
GBK-16-10 10 208 68 30 45 4.4
BKG-20-10 16 240 73 44 65 9.6

C-grab Duo CGD Coupling Hook

For use with Master Links, all GrabiQ C connectors can be equipped with quickpin.

Code WLL t
C Grab Duo Cgd Grabiq Dimensions
L B E H Weight kgs
CGD-6-10 2.1 79 11 24 22 0.55
CGD-8-10 3.5 107 12 32 29 1.11
CGD-10-10 5.6 134 15 40 37 2.21
CGD-13-10 9.5 173 19 48 48 5.6
CGD-16-10 14 215 22 64 57 9.6

KLA Grade 10 Chain

  • Heat Treatment: Hardened and tempered.
  • Note! For chain grade 10 the maximum in service temperature is 200°C.
  • Surface treatment: Blue painted.
  • Marking: 10G.
Code WLL (t) Chain Ø (mm)
Gunnebo Grabiq Kla Grade 10 Chain Dimensions
L (mm)
E (mm)
Weight (kg) MPF Breaking force (kN)
KLA-6-10 1.5 6 18 8 0.842 37 60
KLA-8-10 2.5 8 24 11 1.45 62.5 100
KLA-10-10 4 10 30 14 2.25 100 160
KLA-13-10 6.7 13 39 18 3.76 162 260
KLA-16-10 10 16 48 22 5.64 250 402
KLA-20-10 16 20 60 29 9.4 393 630
Part N° WLL α 0°-90° WLL α 90°-120° Master Link Chain Coupling Hook Weight in kgwith 2m effective working length Chain weight kg/m Comp.length mm Guide Price Quantity
4012-T8418
TG2-GBK 6mm
2.1 1.5 MF-86-10 KLA-6-10 CGD-6-10 GBK-6-10 4.6 2 291 Quote Required
4012-T8419
TG2-GBK 8mm
3.5 2.5 MF-108-10 KLA-8-10 CGD-8-10 GBK-8-10 8.4 3.4 366 Quote Required
4012-T8420
TG2-GBK 10mm
5.6 4.0 MF-1310-10 KLA-10-10 CGD-10-10 GBK-10-10 13.6 5.4 444 Quote Required
4012-T8421
TG2-GBK 13mm
9.5 6.7 MF-1613-10 KLA-13-10 CGD-13-10 GBK-13-10 24.3 8.8 535 Quote Required
4012-T8422
TG2-GBK 16mm
14.0 10.0 MF-2016-10 KLA-16-10 CGD-16-10 GBK-16-10 38.7 13.4 663 Quote Required
4012-T8423
TG2-GBK 20mm
22.4 16.0 MF-2220-10 KLA-20-10 CGD-20-10 GBK-20-10 78.7 18.8 615 Quote Required
Add to Quote Basket   ?
