Gunnebo GrabiQ "MG2-CL" Twin Leg Chain Sling with "Master Link MGD and CL Sling Hook" Range from 1.2t to 14t

Model:

MG2-CL / GGTL-4007


This Page has now expired. Please view our complete range of Chain Slings Assemblies & Components or Contact us with your requirements for a possible suitable alternative.

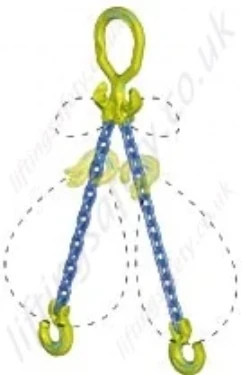

Gunnebo MG2-CL ready made twin leg chain slings with a unique master ring and sling safety hook.

Part no WLL α 0°-90° WLL α 90°-120° WLL chooked α 0°-90° WLL chooked α 90°-120° Master link Chain Hook Weight kgs/eff.length 2m Chain weight kg/m Comp.length mm
MG2-CL 6 mm 2.1 1.5 1.6 1.2 MGD-6-10 KLA-6-10 CL-6-10 4.7 2.0 187
MG2-CL 8 mm 3.5 2.5 2.7 2.0 MGD-8-10 KLA-8-10 CL-8-10 8.2 3.4 230
MG2-CL 10 mm 5.6 4.0 4.4 3.2 MGD-10-10 KLA-10-10 CL-10-10 13.3 5.4 285
MG2-CL 13 mm 9.5 6.7 7.4 5.4 MGD-13-10 KLA-13-10 CL-13-10 23.0 8.8 359
MG2-CL 16 mm 14.0 10.0 11.4 8.0 MGD-16-10 KLA-16-10 CL-16-10 36.6 13.4 429
          Grabiq Mgd Master Grab Gunnebo Grabiq Kla Grade 10 Chain Grabiq Cl C Lok

Individual Components

Below you can find the individual specifications of the three components that make up a GrabiQ MG2-CL twin leg Chain Sling.

MGD Master Grab

The top suspended master link.

Code WLL t
Grabiq Mgd Master Grab Dimensions
L A E H Weight kgs
MGD-6-10 2.1 144 90 60 17 0.75
MGD-8-10 3.5 171 100 75 21 1.31
MGD-10-10 5.6 211 124 90 24 2.33
MGD-13-10 9.5 262 149 105 31 5.2
MGD-16-10 14 310 175 120 35 7.9

C-lok CL Connector

For use with Master Links, eye hooks and choke.

Code WLL t
Grabiq Cl C Lok Dimensions
L B E H Weight kgs
CL-6-10 1.5 43 11 24 18 0.22
CL-8-10 2.5 58 12 32 24 0.51
CL-10-10 4 74 15 40 29 0.97
CL-13-10 6.7 94 18 52 38 2.07
CL-16-10 10 119 22 64 48 3.8

KLA Grade 10 Chain

  • Heat Treatment: Hardened and tempered.
  • Note! For chain grade 10 the maximum in service temperature is 200°C.
  • Surface treatment: Blue painted.
  • Marking: 10G.
Code WLL (t) Chain Ø (mm)
Gunnebo Grabiq Kla Grade 10 Chain Dimensions

L (mm)
E (mm)
Weight (kg) MPF Breaking force (kN)
KLA-6-10 1.5 6 18 8 0.842 37 60
KLA-8-10 2.5 8 24 11 1.45 62.5 100
KLA-10-10 4 10 30 14 2.25 100 160
KLA-13-10 6.7 13 39 18 3.76 162 260
KLA-16-10 10 16 48 22 5.64 250 402
KLA-20-10 16 20 60 29 9.4 393 630
Part N° WLL α 0°-90° WLL α 90°-120° WLL chooked α 0°-90° WLL chooked α 90°-120° Master Link Chain Hook Weight(kg) Effective Working Length of 2m Comp. Length (mm) Chain Weight (kg/m) Guide Price Quantity
4007-T8402
MG2-CL 6mm
2.1 1.5 1.6 1.2 MGD-6-10 KLA-6-10 CL-6-10 4.7 187 Quote Required
4007-T8403
MG2-CL 8mm
3.5 2.5 2.7 2 MGD-8-10 KLA-8-10 CL-8-10 8.2 230 Quote Required
4007-T8404
MG2-CL 10mm
5.6 4.0 4.4 3.2 MGD-10-10 KLA-10-10 CL-10-10 13.3 285 Quote Required
4007-T8405
MG2-CL 13mm
9.5 6.7 7.4 5.4 MGD-13-10 KLA-13-10 CL-13-10 23.0 359 Quote Required
4007-T8406
MG2-CL 16mm
14.0 10.0 11.4 8.0 MGD-16-10 KLA-16-10 CL-16-10 36.6 429 Quote Required
Add to Quote Basket   ?
