Gunnebo CrabiQ "MG2-GBK" Twin Leg Chain Sling "Master Link MGD and GBK Safety Hook" Range from 1.5t to 14t

Model:

MG2-GBK / GCTL-4013


This Page has now expired. Please view our complete range of Chain Slings Assemblies & Components or Contact us with your requirements for a possible suitable alternative.

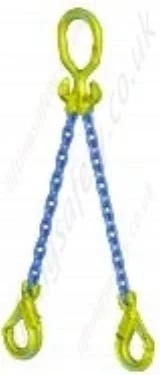

Gunnebo MG2-GBK ready made twin leg chain slings with a unique master ring and sling safety hook.

Part no WLL α 0°-90° WLL α 90°-120° Master link Chain Coupling Weight kgs/eff.length 2m Chain weight kg/m Comp.length mm
MG2-GBK 6 mm 2.1 1.5 MGD-6-10 KLA-6-10 GBK-6-10 4.3 2.0 231
MG2-GBK 8 mm 3.5 2.5 MGD-8-10 KLA-8-10 GBK-8-10 7.7 3.4 290
MG2-GBK 10 mm 5.6 4.0 MGD-10-10 KLA-10-10 GBK-10-10 12.6 5.4 361
MG2-GBK 13 mm 9.5 6.7 MGD-13-10 KLA-13-10 GBK-13-10 22.5 8.8 434
MG2-GBK 16 mm 14.0 10.0 MGD-16-10 KLA-16-10 GBK-16-10 33.3 13.4 518
      Grabiq Mgd Master Grab Gunnebo Grabiq Kla Grade 10 Chain Safety Hook

Individual Components

Below you can find the individual specifications of the three components that make up a GrabiQ MG2-GBK Chain Sling.

MGD Master Grab

The top suspended master link.

Code WLL t
Grabiq Mgd Master Grab Dimensions
L A E H Weight kgs
MGD-6-10 2.1 144 90 60 17 0.75
MGD-8-10 3.5 171 100 75 21 1.31
MGD-10-10 5.6 211 124 90 24 2.33
MGD-13-10 9.5 262 149 105 31 5.2
MGD-16-10 14 310 175 120 35 7.9

GBK Safety Hook

Code WLL t
Safety Hook Dimensions
L B G H Weight kgs
GBK-6-10 1.5 87 26 15 17 0.4
GBK-8-10 2.5 119 36 20 22 0.8
GBK-10-10 4 149 47 22 29 1.4
GBK-13-10 6.7 172 53 29 38 2.7
GBK-16-10 10 208 68 30 45 4.4
BKG-20-10 16 240 73 44 65 9.6

KLA Grade 10 Chain

  • Heat Treatment: Hardened and tempered.
  • Note! For chain grade 10 the maximum in service temperature is 200°C.
  • Surface treatment: Blue painted.
  • Marking: 10G.
Code WLL (t) Chain Ø (mm)
Gunnebo Grabiq Kla Grade 10 Chain Dimensions
L (mm)
E (mm)
Weight (kg) MPF Breaking force (kN)
KLA-6-10 1.5 6 18 8 0.842 37 60
KLA-8-10 2.5 8 24 11 1.45 62.5 100
KLA-10-10 4 10 30 14 2.25 100 160
KLA-13-10 6.7 13 39 18 3.76 162 260
KLA-16-10 10 16 48 22 5.64 250 402
KLA-20-10 16 20 60 29 9.4 393 630
Part N° WLL α 0°-90° WLL α 90°-120° Master link Chain Coupling Weight kgs/eff.length 2m Chain weight kg/m Comp.length mm Guide Price Quantity
4013-T8424
MG2-GBK 6mm
2.1 1.5 MGD-6-10 KLA-6-10 GBK-6-10 4.3 2 231 Quote Required
4013-T8425
MG2-GBK 8mm
3.5 2.5 MGD-8-10 KLA-8-10 GBK-8-10 7.7 3.4 290 Quote Required
4013-T8426
MG2-GBK 10mm
5.6 4.0 MGD-10-10 KLA-10-10 GBK-10-10 12.6 5.4 361 Quote Required
4013-T8427
MG2-GBK 13mm
9.5 6.7 MGD-13-10 KLA-13-10 GBK-13-10 22.5 8.8 434 Quote Required
4013-T8428
MG2-GBK 16mm
14.0 10.0 MGD-16-10 KLA-16-10 GBK-16-10 33.3 13.4 518 Quote Required
Add to Quote Basket   ?
