3M DBI-SALA Flexiguard Modular Fall Arrest Jib Systems

SALA M100 (single user) & M200 (single or dual user options) modular jib arms for fall arrest/rescue applications. Masts are interchangeable to offer greater versatility.

Model:

FMFA-5148


Compliant with: EN 795.2012 | CEN/TS 16415:2013 | OSHA 1962.502 | OSHA 1910.140

Get the coverage you need with this versatile new fall protection system. Available in both the M100 and M200 Series, the 3M™ DBI-SALA® Flexiguard™ Modular Jib System features a simplified design that enhances worker safety in multiple applications. Increased rail-length configurations improve working coverage while a new design facilitates easier system transport.

Extended Reach

  • New M200 version offers improved reach on 4,6m (15ft.) configurations enabling up to 3,7m (12ft.) more reach than previous models.
  • Extended rail-lengths increase safe working area coverage.
  • Reduces risk of potential swing fall hazards – worker and safety manager can visually verify the straight vertical boundary.
  • Simplifies fall clearance requirements.

Increased Height

  • Improved maximum height for 9,1m (30ft.) models enables up to 1,5m (5ft.) more vertical height versus previous models.
  • Semi-fixed models come with 1,5m (5ft.) of height adjustment for maximum flexibility during field installations.

Dual user rated

  • Select M200 models only.
  • Helps increase worksite efficiency and safety for multiple workers.
  • Provides additional working coverage compared to previous 3M models.
  • Dual user systems contain two independent bypassing horizontal rails rated for one worker each.

M100

  • M100 Single user: 2.3m (7.5ft) reach
  • Can be transported in one piece with a 2.5 tonnes fork-lift truck

M200

  • M200 Single user: 4.6m (15ft) reach
  • M200 Dual user: 3.7m (12ft) reach
  • Can be transported in one piece with a large lift. Separated into individual components and transported with a 2.5 tonnes fork-lift truck

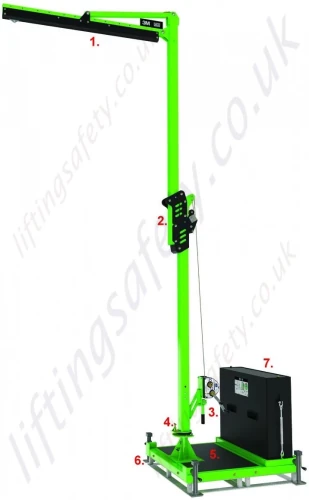

Features

1.

  • Extruded aluminium overhead horizontal rail for Self Retracting Lifeline (SRL) trolley.
  • Stainless steel anchor trolley.
  • Dual by-passing rails (two user models).

2.

  • Fail-safe mast lock.
  • Eliminates need for height-locking fasteners like pins and bolts.
  • Automatic safety lock engages to prevent uncontrolled mast movement if primary lifting mechanism fails.

3.

  • Flip up rotation handle.
  • Improve productivity with the optional power assisted device. When equipped, it adjusts height four times faster than the manual adjustment of previous 3M models.

4.

  • Rotating mast up to 360 degrees (most models).

5.

  • 3M™ Safety-Walk Slip Resistant walking surface (counterweight bases).

6.

  • Powder coated and galvanised components.
  • Open multi-directional base designed to accommodate a wide array of fork shapes and sizes

7.

  • Removable counterweight box (counterweight bases) with built in fork pockets and lifting ring attachment points (sold separately).
  • Integrated leveling bubbles (counterweight bases).
Flexiguard Modular Jib - Labelled
  • Model: M100
  • Total system weight: 2266kg
  • Max. component weight: 1404kg
  • Offset / Reach: 2.3m
  • Height: Up to 9.1m
  • Mast rotation range: 270° with counterweight base 360° with others
  • Max. no. of users: 1
  • SRL max. arresting force: 6kN

1. Choose from 6 interchangeable mast options...

  • Adjustable height masts are adjusted easily using the integrated hand crank winch, or by using a power drill with the optional overload clutch accessory equipped.
  • Semi-fixed masts offer a small amount (1,5m or 5ft.) of adjustment to optimise the anchor height during installation.
Adjustable height, single user masts Semi-fixed height, single user masts
Part No. Height Part No. Height
8530874 3-4.6m 8530882 4.6-6.1m
8530875 3.8-6.1m 8530883 6-7.6m
8530876 4.6-7.6m 8530884 7.6-9.1m
8530877 5.3-9.1m

2. Choose from 5 interchangeable base options...

Part No. Base option
8530869 Portable Counterweight Base* without concrete
8530870 Portable Counterweight Base* with concrete fill
8530871 Floor Mounted Base
8530872 Flush Mounted / Cast in Base
8530873 Outrigger Base

*Portable Counterweight Base includes levelling jacks.

3. Choose you accessories...

Type Part No. Description
Smooth Surface Caster Kit 8530908 Allows counterweight base systems to be maneuvered into tight spaces on smooth surfaces, kit of 4 wheels.
Forklift Pocket Mast Transport Kit 8530911 Allows mast to be separated from the base and transported vertically using a forklift. Only for adjustable height masts.
Overload Clutch 8512936 Required to raise and lower adjustable masts with a power drill (drill not included).
Counterweight Box Lifting Ring Kit 8530914 Allows counterweight box to be moved with overhead lifting equipment. Includes two rings per kit. One kit needed per









  • Model: M200
  • Total system weight: 5746kg
  • Max. component weight: 2268kg
  • Single User Model Offset / Reach: 4.6m
  • Dual User Model Offset / Reach: 3.7m
  • Height: Up to 9.1m
  • Mast rotation range: 360° for all bases
  • Max. no. of users: 1 or 2 depending on model
  • SRL max. arresting force: 6kN

1. Choose from 14 interchangeable mast options...

  • Adjustable height masts are adjusted easily using the integrated hand crank winch, or by using a power drill with the optional overload clutch accessory equipped.
  • Semi-fixed masts have a small amount (1,5m or 5ft.) of adjustment to optimise the anchor height during installation.
No. of Users Semi-fixed height, single user masts   Adjustable height, single user masts
  Part No. Height Part No. Height
Single 8530899 4.6-6.1m 8530891 3.8-4.6m
Single 8530900 6.1-7.6m 8530892 4.5-6.1m
Single 8530901 7.6-9.1m 8530893 5.3-7.6m
Single    8530894 6-9.1m

No. of Users Semi-fixed height, dual user masts   Adjustable height, dual user masts
Dual 8530902 4.6-6.1m 8530895 3.8-4.6m
Dual 8530903 6.1-7.6m 8530896 4.5-6.1m
Dual 8530904 7.6-9.1m 8530897 5.3-7.6m
Dual    8530898 6-9.1m

2. Choose from 4 interchangeable base options...

Part No. Base option
8530886 Portable Counterweight Base* without concrete
8530887 Portable Counterweight Base* with concrete fill
8530888 Floor Mounted Base
8530889 Flush Mounted / Cast in Base

*Portable Counterweight Base includes levelling jacks.

3. Choose you accessories...

Type Part No. Description
Jack Stabilising Kit 8530907 Designed to stabilise and level counterweight base systems on slightly uneven surfaces, kit of 4 jacks.
Smooth Surface Caster Kit 8530908 Allows counterweight base systems to be maneuvered into tight spaces on smooth surfaces, kit of 4 wheels.
Forklift Pocket Mast Transport Kit 8530912 Allows mast to be separated from the base and transported vertically using a forklift. Only for adjustable height masts.
Overload Clutch 8512936 Required to raise and lower adjustable masts with a power drill (drill not included).
Counterweight Box Lifting Ring Kit 8530777 Allows counterweight box to be moved with overhead lifting equipment. Includes four rings per kit. One kit needed per









Compliant with: EN 795.2012 | CEN/TS 16415:2013 | OSHA 1962.502 | OSHA 1910.140

Get the coverage you need with this versatile new fall protection system. Available in both the M100 and M200 Series, the 3M™ DBI-SALA® Flexiguard™ Modular Jib System features a simplified design that enhances worker safety in multiple applications. Increased rail-length configurations improve working coverage while a new design facilitates easier system transport.

Extended Reach

  • New M200 version offers improved reach on 4,6m (15ft.) configurations enabling up to 3,7m (12ft.) more reach than previous models.
  • Extended rail-lengths increase safe working area coverage.
  • Reduces risk of potential swing fall hazards – worker and safety manager can visually verify the straight vertical boundary.
  • Simplifies fall clearance requirements.

Increased Height

  • Improved maximum height for 9,1m (30ft.) models enables up to 1,5m (5ft.) more vertical height versus previous models.
  • Semi-fixed models come with 1,5m (5ft.) of height adjustment for maximum flexibility during field installations.

Dual user rated

  • Select M200 models only.
  • Helps increase worksite efficiency and safety for multiple workers.
  • Provides additional working coverage compared to previous 3M models.
  • Dual user systems contain two independent bypassing horizontal rails rated for one worker each.

M100

  • M100 Single user: 2.3m (7.5ft) reach
  • Can be transported in one piece with a 2.5 tonnes fork-lift truck

M200

  • M200 Single user: 4.6m (15ft) reach
  • M200 Dual user: 3.7m (12ft) reach
  • Can be transported in one piece with a large lift. Separated into individual components and transported with a 2.5 tonnes fork-lift truck

Features

1.

  • Extruded aluminium overhead horizontal rail for Self Retracting Lifeline (SRL) trolley.
  • Stainless steel anchor trolley.
  • Dual by-passing rails (two user models).

2.

  • Fail-safe mast lock.
  • Eliminates need for height-locking fasteners like pins and bolts.
  • Automatic safety lock engages to prevent uncontrolled mast movement if primary lifting mechanism fails.

3.

  • Flip up rotation handle.
  • Improve productivity with the optional power assisted device. When equipped, it adjusts height four times faster than the manual adjustment of previous 3M models.

4.

  • Rotating mast up to 360 degrees (most models).

5.

  • 3M™ Safety-Walk Slip Resistant walking surface (counterweight bases).

6.

  • Powder coated and galvanised components.
  • Open multi-directional base designed to accommodate a wide array of fork shapes and sizes

7.

  • Removable counterweight box (counterweight bases) with built in fork pockets and lifting ring attachment points (sold separately).
  • Integrated leveling bubbles (counterweight bases).
Flexiguard Modular Jib - Labelled
  • Model: M100
  • Total system weight: 2266kg
  • Max. component weight: 1404kg
  • Offset / Reach: 2.3m
  • Height: Up to 9.1m
  • Mast rotation range: 270° with counterweight base 360° with others
  • Max. no. of users: 1
  • SRL max. arresting force: 6kN

1. Choose from 6 interchangeable mast options...

  • Adjustable height masts are adjusted easily using the integrated hand crank winch, or by using a power drill with the optional overload clutch accessory equipped.
  • Semi-fixed masts offer a small amount (1,5m or 5ft.) of adjustment to optimise the anchor height during installation.
Adjustable height, single user masts Semi-fixed height, single user masts
Part No. Height Part No. Height
8530874 3-4.6m 8530882 4.6-6.1m
8530875 3.8-6.1m 8530883 6-7.6m
8530876 4.6-7.6m 8530884 7.6-9.1m
8530877 5.3-9.1m

2. Choose from 5 interchangeable base options...

Part No. Base option
8530869 Portable Counterweight Base* without concrete
8530870 Portable Counterweight Base* with concrete fill
8530871 Floor Mounted Base
8530872 Flush Mounted / Cast in Base
8530873 Outrigger Base

*Portable Counterweight Base includes levelling jacks.

3. Choose you accessories...

Type Part No. Description
Smooth Surface Caster Kit 8530908 Allows counterweight base systems to be maneuvered into tight spaces on smooth surfaces, kit of 4 wheels.
Forklift Pocket Mast Transport Kit 8530911 Allows mast to be separated from the base and transported vertically using a forklift. Only for adjustable height masts.
Overload Clutch 8512936 Required to raise and lower adjustable masts with a power drill (drill not included).
Counterweight Box Lifting Ring Kit 8530914 Allows counterweight box to be moved with overhead lifting equipment. Includes two rings per kit. One kit needed per









  • Model: M200
  • Total system weight: 5746kg
  • Max. component weight: 2268kg
  • Single User Model Offset / Reach: 4.6m
  • Dual User Model Offset / Reach: 3.7m
  • Height: Up to 9.1m
  • Mast rotation range: 360° for all bases
  • Max. no. of users: 1 or 2 depending on model
  • SRL max. arresting force: 6kN

1. Choose from 14 interchangeable mast options...

  • Adjustable height masts are adjusted easily using the integrated hand crank winch, or by using a power drill with the optional overload clutch accessory equipped.
  • Semi-fixed masts have a small amount (1,5m or 5ft.) of adjustment to optimise the anchor height during installation.
No. of Users Semi-fixed height, single user masts   Adjustable height, single user masts
  Part No. Height Part No. Height
Single 8530899 4.6-6.1m 8530891 3.8-4.6m
Single 8530900 6.1-7.6m 8530892 4.5-6.1m
Single 8530901 7.6-9.1m 8530893 5.3-7.6m
Single    8530894 6-9.1m

No. of Users Semi-fixed height, dual user masts   Adjustable height, dual user masts
Dual 8530902 4.6-6.1m 8530895 3.8-4.6m
Dual 8530903 6.1-7.6m 8530896 4.5-6.1m
Dual 8530904 7.6-9.1m 8530897 5.3-7.6m
Dual    8530898 6-9.1m

2. Choose from 4 interchangeable base options...

Part No. Base option
8530886 Portable Counterweight Base* without concrete
8530887 Portable Counterweight Base* with concrete fill
8530888 Floor Mounted Base
8530889 Flush Mounted / Cast in Base

*Portable Counterweight Base includes levelling jacks.

3. Choose you accessories...

Type Part No. Description
Jack Stabilising Kit 8530907 Designed to stabilise and level counterweight base systems on slightly uneven surfaces, kit of 4 jacks.
Smooth Surface Caster Kit 8530908 Allows counterweight base systems to be maneuvered into tight spaces on smooth surfaces, kit of 4 wheels.
Forklift Pocket Mast Transport Kit 8530912 Allows mast to be separated from the base and transported vertically using a forklift. Only for adjustable height masts.
Overload Clutch 8512936 Required to raise and lower adjustable masts with a power drill (drill not included).
Counterweight Box Lifting Ring Kit 8530777 Allows counterweight box to be moved with overhead lifting equipment. Includes four rings per kit. One kit needed per









Pricing

Type
Height Option
Height
Base Option
Accessories
 Smooth Surface Caster Kit  (£ 5420.30 )
 Forklift Pocket Mast Transport Kit  (£ 960.65 )
 Overload Clutch  (£ 563.25 )
 Counterweight Box Lifting Ring Kit  (£ 799.15 )
Quantity
Guide Price

£28362.50
