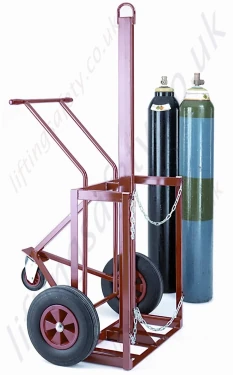

Double Cylinder Lifting Trolleys, Capacity 250kg

Twin gas bottle lifting and handling trolleys to suit various cylinder sizes

Model:

DCLT-5196

For pushing around or for lifting, this two cylinder lifting trolley allows gas cylinders to be lifted and transported in a safe and secure manor, the fully portable design makes for easy movement around the workplace.

Transport single cylinders together at the same time
One product allowing cylinders to be either lifted into position or wheeled around the floor
Fitted with 2 x 400mm diameter solid rubber wheels and 1 x 160mm diameter castor on the rear support frame
50mm diameter lifting eye fitted on top of unit for easy attachment to any overhead lifting gear
Fully portable for easy movement around the workplace
Fitted with steel link retaining chains top and bottom
Fully tested, 'CE' marked and supply of Certificate of Conformity ensures the unit is fully compliant with latest Health & Safety Regulations

Dimensions & Specifications

Capacity (kg)	Cylinder Dia. (mm)	Overall Size (mm)	weight (kg)
250	180-230	790 x 685 x 1870	56
250	230-305	940 x 760 x 1870	60

Part N°	Capacity (kg)	Cylinder Dia. (mm)	Overall Size (mm)	weight (kg)	Unit Price
5196-T27091	250	180-230	790 x 685 x 1870	56	Quote Required
5196-T27092	250	230-305	940 x 760 x 1870	60	Quote Required
Add to Quote Basket × More information about shopping on LiftingSafety Quotation Help Please choose the correct configuration of your desired product, then once complete - press on the 'Request Quote' button, this item will then be added to your basket (). To view your basket, simply click on the basket icon at the top of the page OK ?

Description
Pricing

Transport single cylinders together at the same time
One product allowing cylinders to be either lifted into position or wheeled around the floor
Fitted with 2 x 400mm diameter solid rubber wheels and 1 x 160mm diameter castor on the rear support frame
50mm diameter lifting eye fitted on top of unit for easy attachment to any overhead lifting gear
Fully portable for easy movement around the workplace
Fitted with steel link retaining chains top and bottom
Fully tested, 'CE' marked and supply of Certificate of Conformity ensures the unit is fully compliant with latest Health & Safety Regulations

Dimensions & Specifications

Capacity (kg)	Cylinder Dia. (mm)	Overall Size (mm)	weight (kg)
250	180-230	790 x 685 x 1870	56
250	230-305	940 x 760 x 1870	60

Part N°	Capacity (kg)	Cylinder Dia. (mm)	Overall Size (mm)	weight (kg)	Unit Price
5196-T27091	250	180-230	790 x 685 x 1870	56	Quote Required
5196-T27092	250	230-305	940 x 760 x 1870	60	Quote Required
Add to Quote Basket × More information about shopping on LiftingSafety Quotation Help Please choose the correct configuration of your desired product, then once complete - press on the 'Request Quote' button, this item will then be added to your basket (). To view your basket, simply click on the basket icon at the top of the page OK ?
