LIFTINGSAFETY

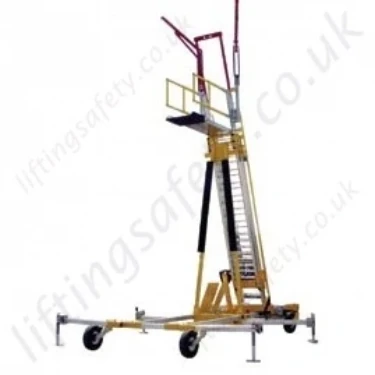

Sala Advanced Portable Free-Standing Ladder Access System. C/W Fall Protection Equipment and Height Adjustable up to 9.3 metre Tall

Adjustable Free-Standing Ladder Access System with Fall Protection combines easy access to elevated work areas with Fall Protection from the ground up

Model:

A-3535


Description

+

We offer 6 different sizes with platform heights from 5.9m to 12.2 metre - all 6 are fully height adjustable, they are a free-Standing Ladder Access System with Fall Protection that combines easy access to elevated work areas with Fall Protection from the ground up for the duration of the work being performed. Each unit comes standard with adjustable handrails, foam-protected platform, two anchor davits and a fall-arrest ladder anchor which provide a total of three attachment points for the anchorage of a Personal Fall-Arrest System.
23.5'-32' Anchor Height Adjustable Free-Standing Ladder Access System with Fall Protection, 18" Pneumatic Wheels.

The Adjustable Free-Standing Ladder Access System with Fall-Protection combines easy access to elevated work areas with Fall-Protection from the ground up for the duration of the work being performed.

Constructed of lightweight powder coated aluminum and zinc-plated steel, the Adjustable Free-Standing Ladder Access System with Fall-Protection is easily assembled, positioned and collapsed for storage or transportation. Each unit comes standard with adjustable handrails, foam-protected platform, two anchor davits and a fall-arrest ladder anchor which provide a total of three attachment points for the anchorage of a Personal Fall-Arrest System (PFAS).

Available in a range of heights and wheel styles, the system can be ordered to meet your applications’ custom requirements. The Adjustable Free-Standing Ladder Access System can be easily moved by hand. It can also be moved by a forklift or towed by a maintenance vehicle when equipped with the proper accessories.

Designed for use in the Aeronautics Industry

The ideal solution for working at height on aeroplane wings and engines.

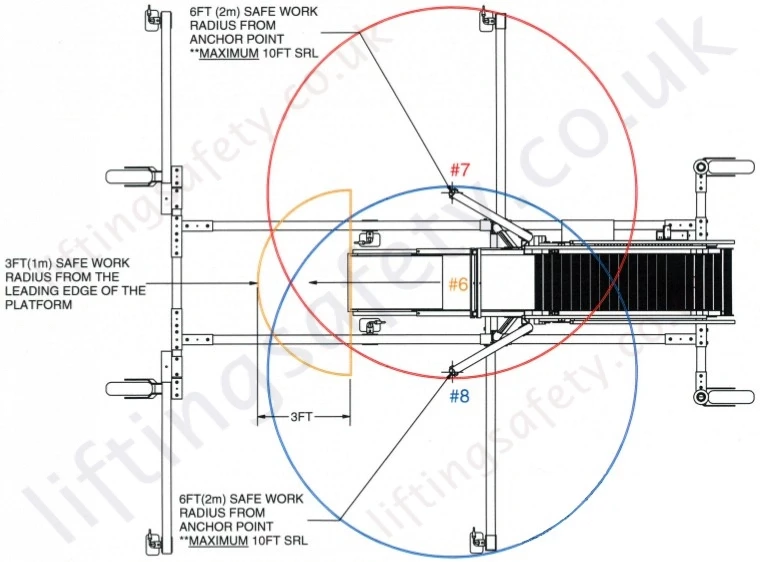

Working Radius

Free standing ladder access system Dimensional drawing 3

Dimensions

+

Dimensions

Overall Dimensions

Part (A) (B) (C) (D) (E) (F) (G) (H) Weight kg)
8517714 (S)
Urethane		 5969 to 7340mm 5791 to 7340mm 3048 to 4419mm 3429mm 254mm 3784mm 2413mm 2235mm 728kg
8517715 (S)
Pneumatic		 6324 to 7645mm 6096 to 7647mm 3352 to 4724mm 3962mm 559mm 3784mm 2463mm 2286mm 751kg
8517716 (M)
Urethane		 7035 to 9626mm 6858 to 9448mm 4114 to 6705mm 4699mm 254mm 4445mm 2413mm 2235mm 1023kg
8517717 (M)
Pneumatic		 7340 to 9931mm 7162 to 9754mm 4419 to 7010mm 5232mm 559mm 4445mm 2463mm 2286mm 1045kg
8517718 (L)
Urethane		 8102 to 11912mm 7924 to 11734mm 5181 to 8991mm 5867mm 254mm 5384mm 2413mm 2235mm 1213kg
8517719 (L)
Pneumatic		 8407 to 12217mm 8229 to 12039mm 5486 to 9296mm 6400mm 559mm 5384mm 2463mm 2286mm 1236kg
(S) : Small, (M) : Medium, (L) : Large

Pricing

+
Part N° Int'l Ref Description Height (min / max) Weight (kg) Unit Price Quantity
3535-T21150 8567714 (S) Small engineered ladder urethane, wheels 3.0 / 4.4m 728.00 Quote Required
3535-T21151 8567715 (S) Small engineered ladder pneumatic, wheels 3.4 / 4.7m 751.20 Quote Required
3535-T21152 8567716 (M) Medium engineered ladder urethane wheels 4.1 / 6.7m 1023.00 Quote Required
3535-T21153 8567717 (M) Medium engineered ladder pneumatic wheels 4.4 / 7.0m 1045.00 Quote Required
3535-T21154 8567718 (L) Large engineered ladder urethane wheels 5.1 / 9.0m 1213.40 Quote Required
3535-T21155 8567719 (L) Large engineered ladder pneumatic wheels 5.5 / 9.3m 1236.50 Quote Required
Add To Quote Request   ?

We offer 6 different sizes with platform heights from 5.9m to 12.2 metre - all 6 are fully height adjustable, they are a free-Standing Ladder Access System with Fall Protection that combines easy access to elevated work areas with Fall Protection from the ground up for the duration of the work being performed. Each unit comes standard with adjustable handrails, foam-protected platform, two anchor davits and a fall-arrest ladder anchor which provide a total of three attachment points for the anchorage of a Personal Fall-Arrest System.
23.5'-32' Anchor Height Adjustable Free-Standing Ladder Access System with Fall Protection, 18" Pneumatic Wheels.

The Adjustable Free-Standing Ladder Access System with Fall-Protection combines easy access to elevated work areas with Fall-Protection from the ground up for the duration of the work being performed.

Constructed of lightweight powder coated aluminum and zinc-plated steel, the Adjustable Free-Standing Ladder Access System with Fall-Protection is easily assembled, positioned and collapsed for storage or transportation. Each unit comes standard with adjustable handrails, foam-protected platform, two anchor davits and a fall-arrest ladder anchor which provide a total of three attachment points for the anchorage of a Personal Fall-Arrest System (PFAS).

Available in a range of heights and wheel styles, the system can be ordered to meet your applications’ custom requirements. The Adjustable Free-Standing Ladder Access System can be easily moved by hand. It can also be moved by a forklift or towed by a maintenance vehicle when equipped with the proper accessories.

Designed for use in the Aeronautics Industry

The ideal solution for working at height on aeroplane wings and engines.

Working Radius

Free standing ladder access system Dimensional drawing 3

Dimensions

Overall Dimensions

Part (A) (B) (C) (D) (E) (F) (G) (H) Weight kg)
8517714 (S)
Urethane		 5969 to 7340mm 5791 to 7340mm 3048 to 4419mm 3429mm 254mm 3784mm 2413mm 2235mm 728kg
8517715 (S)
Pneumatic		 6324 to 7645mm 6096 to 7647mm 3352 to 4724mm 3962mm 559mm 3784mm 2463mm 2286mm 751kg
8517716 (M)
Urethane		 7035 to 9626mm 6858 to 9448mm 4114 to 6705mm 4699mm 254mm 4445mm 2413mm 2235mm 1023kg
8517717 (M)
Pneumatic		 7340 to 9931mm 7162 to 9754mm 4419 to 7010mm 5232mm 559mm 4445mm 2463mm 2286mm 1045kg
8517718 (L)
Urethane		 8102 to 11912mm 7924 to 11734mm 5181 to 8991mm 5867mm 254mm 5384mm 2413mm 2235mm 1213kg
8517719 (L)
Pneumatic		 8407 to 12217mm 8229 to 12039mm 5486 to 9296mm 6400mm 559mm 5384mm 2463mm 2286mm 1236kg
(S) : Small, (M) : Medium, (L) : Large

Part N° Int'l Ref Description Height (min / max) Weight (kg) Unit Price Quantity
3535-T21150 8567714 (S) Small engineered ladder urethane, wheels 3.0 / 4.4m 728.00 Quote Required
3535-T21151 8567715 (S) Small engineered ladder pneumatic, wheels 3.4 / 4.7m 751.20 Quote Required
3535-T21152 8567716 (M) Medium engineered ladder urethane wheels 4.1 / 6.7m 1023.00 Quote Required
3535-T21153 8567717 (M) Medium engineered ladder pneumatic wheels 4.4 / 7.0m 1045.00 Quote Required
3535-T21154 8567718 (L) Large engineered ladder urethane wheels 5.1 / 9.0m 1213.40 Quote Required
3535-T21155 8567719 (L) Large engineered ladder pneumatic wheels 5.5 / 9.3m 1236.50 Quote Required
Add To Quote Request   ?
