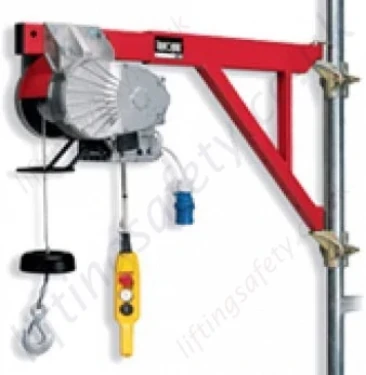

HE 235 Scaffold hoist, 110v, 35m Working Height, 200kg Max. Capacity
Single phase electric scaffolders wire rope hoist. 23m/min lifting speed. Adjustable reach arm.
Model:
SH-4515


Specification
- Motor type: Single Phase
- Voltage: 110v
- Frequency: 50Hz
- Lifting capacity: 200kg @ 745mm, 180kg @ 920mm or 150kg @ 1120mm
- Engine power: 750W
- Lifting speed: 23 m/min
- Cable length: 35m
- Steel cable diameter: 5mm
- Hoist weight: 40kg
- Dimensions (mm): 830 X 270 X 520h
- Extend Reach “A” frame: 745mm, 920mm or 1120mm
Specification
- Motor type: Single Phase
- Voltage: 110v
- Frequency: 50Hz
- Lifting capacity: 200kg @ 745mm, 180kg @ 920mm or 150kg @ 1120mm
- Engine power: 750W
- Lifting speed: 23 m/min
- Cable length: 35m
- Steel cable diameter: 5mm
- Hoist weight: 40kg
- Dimensions (mm): 830 X 270 X 520h
- Extend Reach “A” frame: 745mm, 920mm or 1120mm
