Tiger "TIB" Fall Arrest Retractable Lifelines/Inertia Reels - Options from 6 metres to 30 metres.
Model:
TIB / TFAR-4545
Lightweight, compact and durable fall arrest blocks (self retracting lifeline - SRL) with galvanised wire rope.
Tiger TIB Fall Arrest Retractable Lifelines/Inertia Reels are designed to reduce vertical impact force on the body caused by falling from height. They are used to provide semi-permanent fall protection. The lifeline tension allows the user to move freely around the work area.
Certification
Each item comes fully certified with a test certificate or an EC Declaration of Conformity. The above items are in conformity with the provisions of Council Directive 89/686/EEC and the standards indicated above.
Features
- Lightweight, compact and durable
- Triple pawl brake system with energy dissipating mechanism
- Side cable exit for smooth operation and reduced cable wear
- Ergonomic carrying handle makes transport, set-up and storage easy and safe
- 150kg capacity for operator and tools
- Top anchor point with built-in swivel - limits lifeline twisting
- Supplied with screw gate karabiner for fitting to a suitable anchor point
- Top scaffold hook available as an option
- Lower self-locking snap hook and swivel with built-in impact indicator for connecting directly to the safety harness
- All fittings meet EN 362:2002
- Available with 6m, 10m, 15m, 20m, 30m wire rope lengths
- Buffer spring at cable exit protects block and allows for smooth operation
- Easy to inspect
- Fully serviceable by an approved Service Agent/Centre
- High strength ABS (thermoplastic) casing
- Side case with metal bush for shaft housing
- Minimum static strength 15kN
- 4.8mm galvanised wire rope
- Supplied with pull down cord
- Conforms to EN360:2002 - EC Notified Body Apave

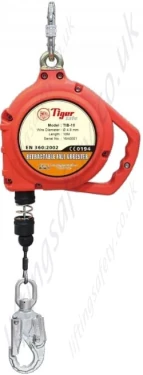

TIB6 & TIB10 Fall Arrest Block
TIB15 Fall Arrest Block

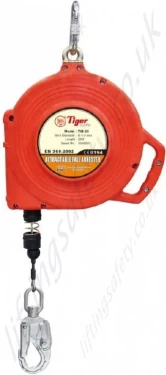

TIB20 & TIB30 Fall Arrest Block
Technical Data
- Maximum rated load: 150kg
- Minimum static strength 15kN
- Braking force: less than 6kN
- Wire Rope - 4.8mm galvanised
- Operating Temperature: -30°C to +50°C
- PPE Category III Retractable Type Fall Arrestor
Models
- TIB-06 - 6 metre - 5.9kg
- TIB-10 - 10 metre - 6.5kg
- TIB-15 - 15 metre - 8.0kg
- TIB-20 - 20 metre - 10.8kg
- TIB-30 - 30 metre - 13.3kg

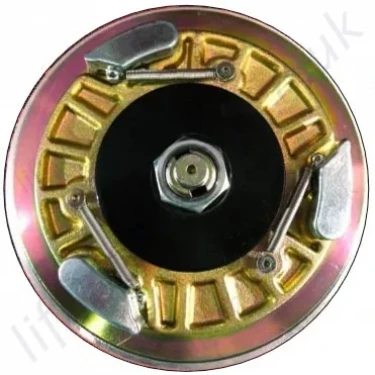

Triple Pawl Brake System
