Crosby L150 Snubbing Load Binder, Load Restraint Tensioner - 2450kg or 4170kg

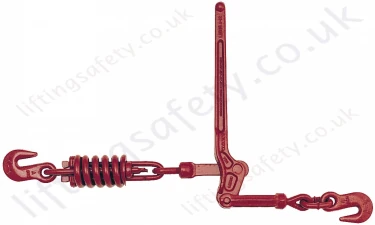

Crosby Snubbing Load Binder.

Model:

Crosby L-150 / SLB-2454


  • Forged steel – Quenched and Tempered.
  • Spring cushion for load protection, cushions shock and sway.
  • Binder toggles away from the load.

Metric Dimensions & Specifications

          Dimensions (mm)

Model

Stock No.

Min-Max Chain Size (mm)

WLL
(t)

Ultimate Load
(t)

Weight Each (kg)

Handle Length (mm)

Take Up (mm)
Compres- sion Strength of Spring (kg)
A

B

C

C1

D

E

F

G
7-12 1048280 8 - 10 2.45 7.27 5.10 406 108 1040 832 781 711 673 406 264 483 12.7
A-12 1048306 10 - 13 4.17 9.09 8.48 470 114 1500 945 864 749 773 475 313 530 16.0
Dimensional Drawing
Crosby-catalogue-page-number-230.pdf

Crosby-catalogue-page-number-230.pdf

(approx. 0.6Mb)
Crosby-catalogue-page-number-241.pdf

Product Warnings

PDF containing all warning information relevant to the safe use of this product
(approx. 0.2Mb)
Part N° Model Min-Max Chain Size (mm) Working Load Limit (t) Ultimate Load (t) Weight Each (kg) Handle Length (mm) Take Up (mm) Compression Strength of Spring (kg) Guide Price Quantity
2454-T17084
1048280
7-12 8 - 10 2.45 7.27 5.10 406 108 1040 £  198.00
2454-T17085
1048306
A-12 10 - 13 4.17 9.09 8.48 470 114 1500 £  259.00
Pricing Currency: Not available at the moment. Add To Quote Request   ?
  • Forged steel – Quenched and Tempered.
  • Spring cushion for load protection, cushions shock and sway.
  • Binder toggles away from the load.

Metric Dimensions & Specifications

          Dimensions (mm)

Model

Stock No.

Min-Max Chain Size (mm)

WLL
(t)

Ultimate Load
(t)

Weight Each (kg)

Handle Length (mm)

Take Up (mm)
Compres- sion Strength of Spring (kg)
A

B

C

C1

D

E

F

G
7-12 1048280 8 - 10 2.45 7.27 5.10 406 108 1040 832 781 711 673 406 264 483 12.7
A-12 1048306 10 - 13 4.17 9.09 8.48 470 114 1500 945 864 749 773 475 313 530 16.0
Dimensional Drawing
Crosby-catalogue-page-number-230.pdf

Crosby-catalogue-page-number-230.pdf

(approx. 0.6Mb)
Crosby-catalogue-page-number-241.pdf

Product Warnings

PDF containing all warning information relevant to the safe use of this product
(approx. 0.2Mb)
Part N° Model Min-Max Chain Size (mm) Working Load Limit (t) Ultimate Load (t) Weight Each (kg) Handle Length (mm) Take Up (mm) Compression Strength of Spring (kg) Guide Price Quantity
2454-T17084
1048280
7-12 8 - 10 2.45 7.27 5.10 406 108 1040 £  198.00
2454-T17085
1048306
A-12 10 - 13 4.17 9.09 8.48 470 114 1500 £  259.00
Pricing Currency: Not available at the moment. Add To Quote Request   ?
